HMK 230LC3
PILOT HYD. PIPING, BASE (1)

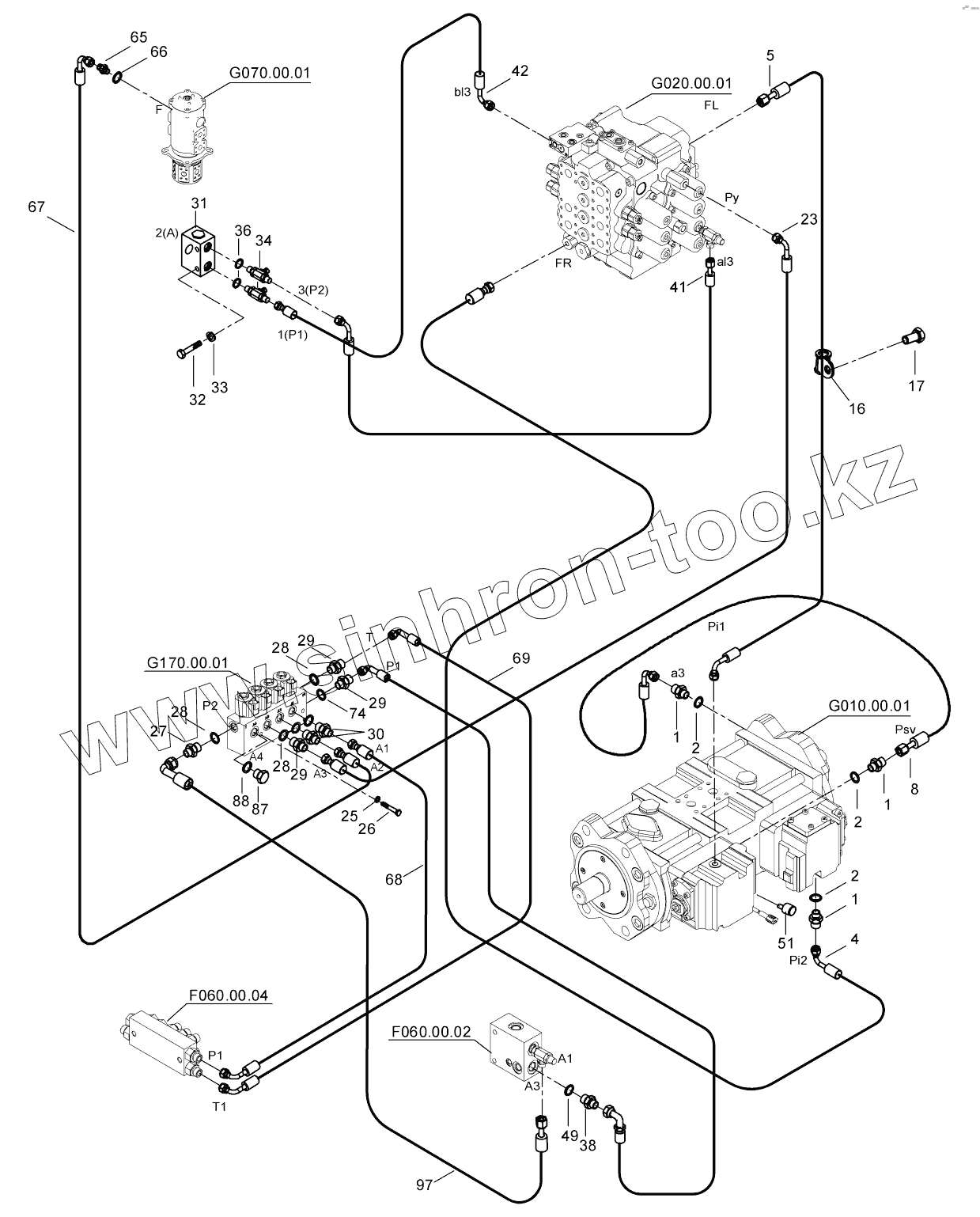

Каталог запасных частей к технике: Hidromek HMK 230LC3. PILOT HYD. PIPING, BASE (1)
