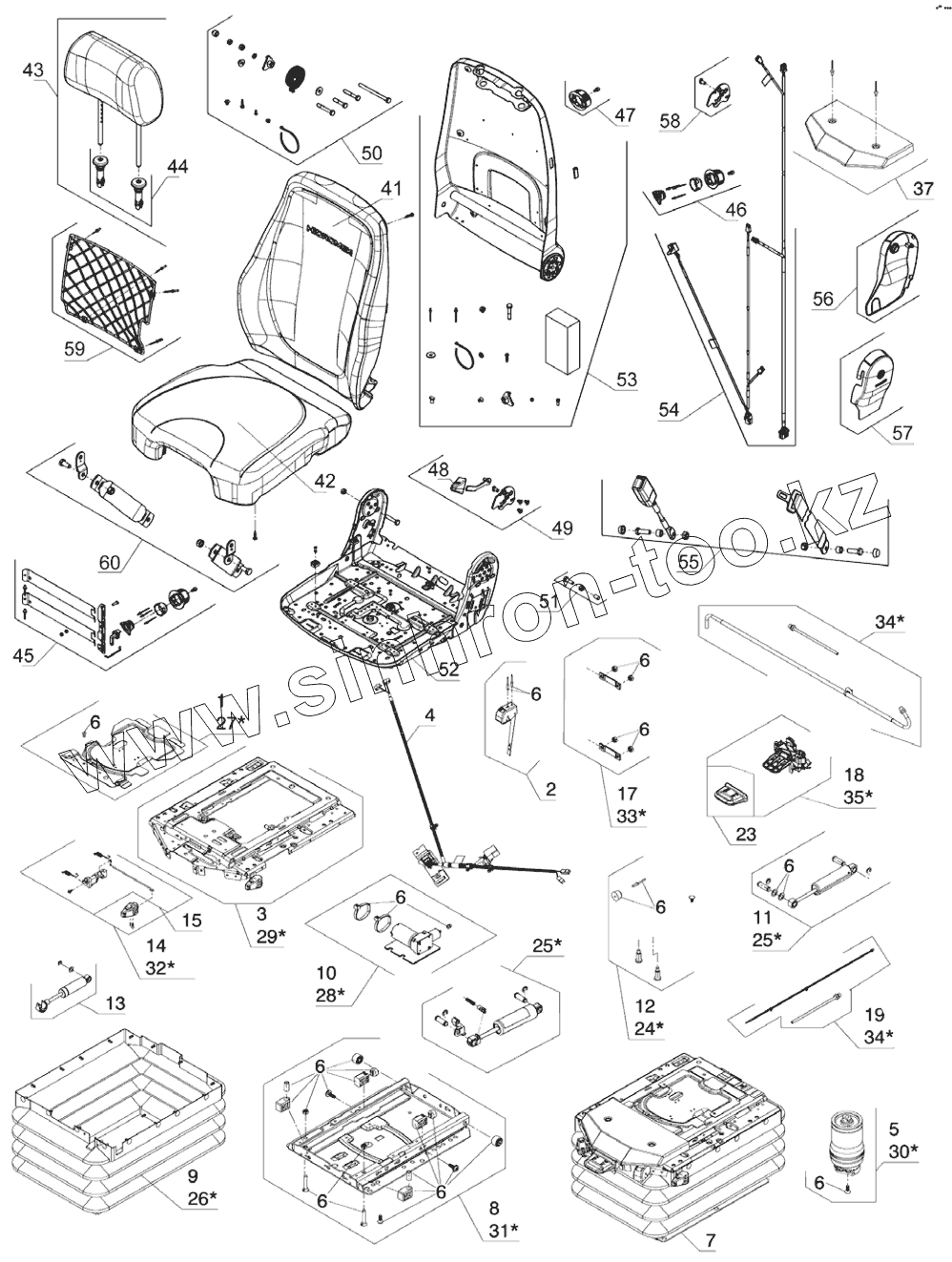

Каталог запасных частей к технике: Hidromek HMK 230LC3. OPERATOR SEAT ASSY, WITH AIR SUSPENSION

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
6
6
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
17
18
19
23
24
25
25
26
27
28
29
30
31
32
33
34
34
35
37
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Позиция на иллюстрации Заводской номер детали Название детали
H906149700 H906149700 SEAT
1 H909065500 COVER
2 H909065600 KIT, LEVEL CONTROL
3 H909065502 SUSPENSION, UPPER
4 H909065601 CABLE
5 H909065504 KIT, AIR SPRING
6 H909065602 KIT, CONNECTING PARTS
7 H909065603 SUSPENSION, UPPER
8 H909065604 SUSPENSION, LOWER
9 H909065605 BELLOWS
10 H909065509 COMPRESSOR
11 H909065536 GAS SPRING
12 H909065520 KIT, FORE/AFT ADJUSTMENT
13 H909065519 KIT, GAS SPRING
14 H909065518 KIT, LOCKING
15 H909065517 HANDLE
17 H909065514 SAFETY BELT
18 H909065606 KIT, HEIGHT ADJUSTMENT
19 H909065607 HOSE
23 H909065608 HANDLE
24 H909065532 KIT, CONNECTING PARTS
25 H909065528 KIT, CONNECTING PARTS
26 H909065526 KIT, CONNECTING PARTS
27 H909065521 KIT, CONNECTING PARTS
28 H909065527 KIT, COMPRESSOR
29 H909065523 KIT, SUSPENSION
30 H909065524 KIT, CONNECTING PARTS
31 H909065609 KIT, CONNECTING PARTS
32 H909065533 KIT, CONNECTING PARTS
33 H909065522 KIT, SEAL BELT
34 H909065531 KIT, HOSE
35 H909065530 KIT, CONNECTING PARTS
37 H909065516 COVER
41 H909065610 SEAT FOAM
42 H909065611 SEAT FOAM
43 H909065612 HEAD REST
44 H909065028 GUIDE
45 H909065029 KIT, LUMBAR SUPPORT
46 H909065540 KIT, LUMBAR SUPPORT
47 H909065541 KNOB
48 H909065542 HANDLE
49 H909065543 KIT, ARM
50 H909065544 KIT, CONNECTING PARTS
51 H909065546 MOUNT
52 H909065547 PLATE
53 H909065548 BACKREST
54 H909065551 KIT, CABLE
55 H909065012 KIT, SEAL BELT
56 H909065552 COVER
57 H909065553 COVER
58 H909065555 KIT, CONNECTING PARTS
59 H909065037 KIT, NET
60 H909065034 KIT, SEAL BELT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
