  5. LOWER FRAME MOUNTING, WITH DOZER BLADE

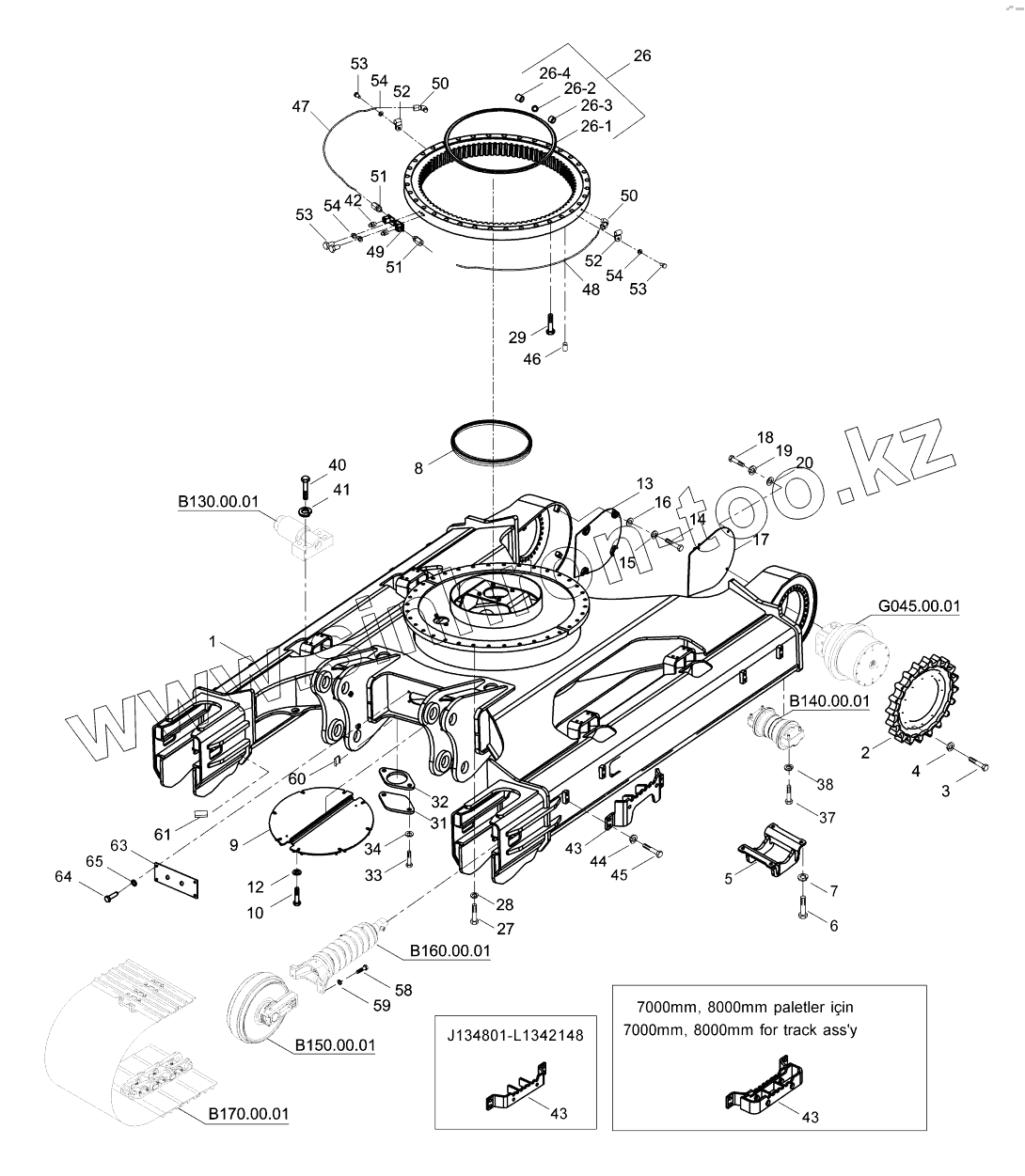

Каталог запасных частей к технике: Hidromek HMK 230LC3. LOWER FRAME MOUNTING, WITH DOZER BLADE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
26
26-1
26-2
26-3
26-4
27
28
29
31
32
33
34
37
38
40
41
42
43
43
43
43
43
43
44
45
46
47
48
49
50
50
51
51
52
52
53
53
53
54
54
54
58
59
60
61
63
64
65
Позиция на иллюстрации Заводской номер детали Название детали
1 H344010101 FRAME , LOWER
2 H344100201 SPROCKET
3 N010391238 BOLT
4 N030810002 Washer
5 H344100301 GUARD
6 N010381718 BOLT
7 N030810003 WASHER
8 H224104900 WEATHER STRIP
9 H384100600 COVER, LOWER
10 N010232870 BOLT
12 N030560004 WASHER
13 H344100801 COVER , RIGHT
14 N010232846 BOLT
15 N031310012 SPRING WASHER
16 N030560004 WASHER
17 H344101201 COVER, LEFT
18 N010232846 BOLT
19 N031310012 SPRING WASHER
20 N030560004 WASHER
26 H344104802 SLEWING RING
26-1 H379031008B SEAL
26-2 H349031012 Ball, Swing Ring
26-3 H349031014 Support A, Swing R.
26-4 H349031015 Support B, Swing R.
27 N010682018 BOLT
28 N030810003 WASHER
29 N010391872 BOLT
31 H341201500 Cover
32 H341201600 Gasket
33 N010232438 BOLT
34 N030560002 WASHER
37 N010381310 BOLT
38 N030810002 Washer
40 N010381214 BOLT
41 N030810002 Washer
42 N081110000 GREASE NIPPLE
43 H304101002 STEP
43 H344108000 ADDITONAL STEP GROUP
44 N010233566 BOLT
45 N030810002 Washer
46 H344107300 Pin, Swing Ring
47 H344107401 PIPE
48 H344107501 PIPE
49 H344106800 BLOCK
50 H345801100 Elbow
51 H345800700 Connector
52 N077010908 CLAMP
53 N010222078 BOLT
54 N031310010 WASHER
58 N010381250 BOLT
59 N030810002 Washer
60 98Y040140 Gromet
61 98Y040160 GROMMET
63 H303114500 PLATE
64 N010232486 Bolt
65 N030810015 Washer
