HMK 230LC3
LOWER FRAME HYDRAULIC PIPING, TRAVEL

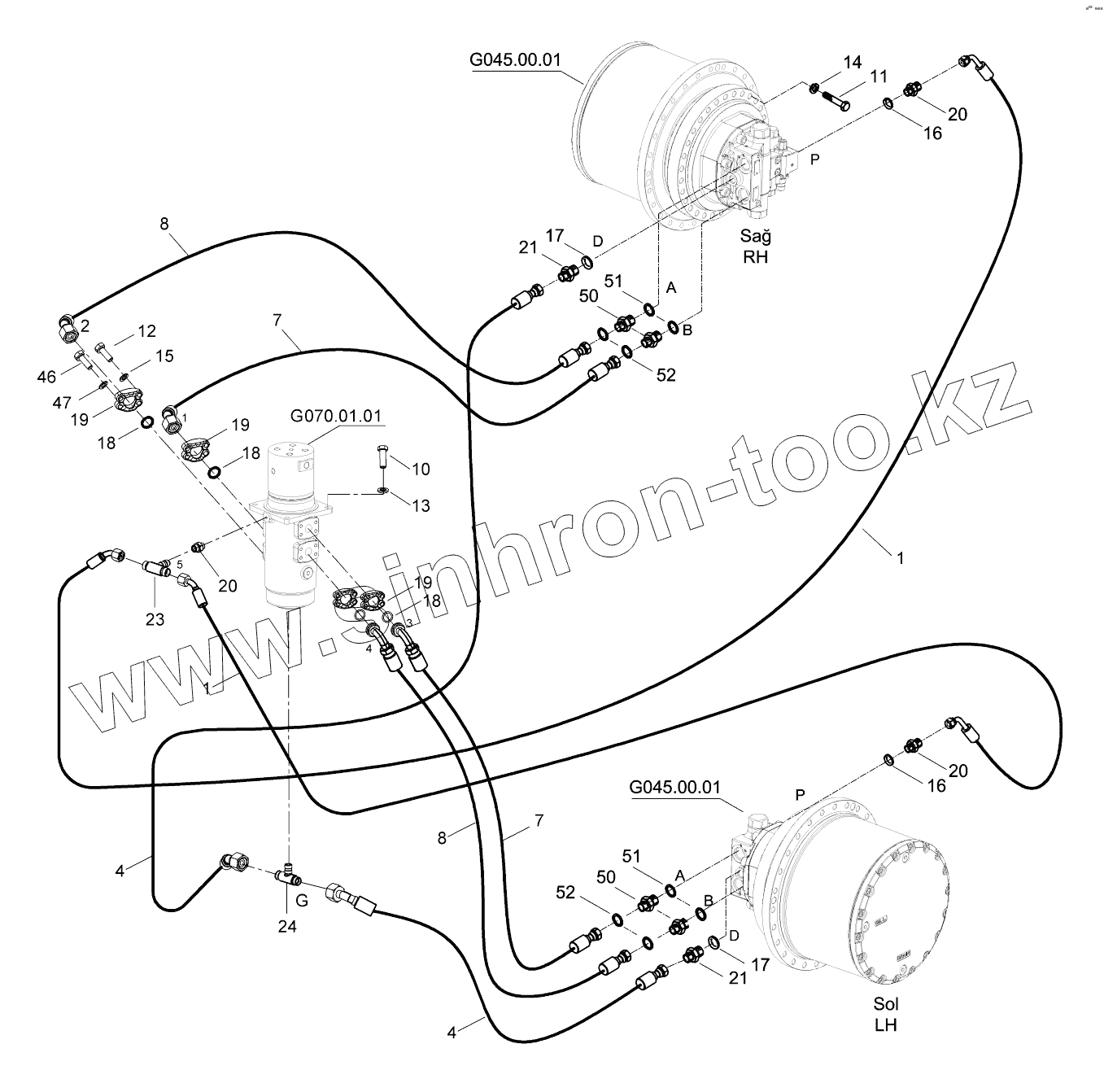

Каталог запасных частей к технике: Hidromek HMK 230LC3. LOWER FRAME HYDRAULIC PIPING, TRAVEL
