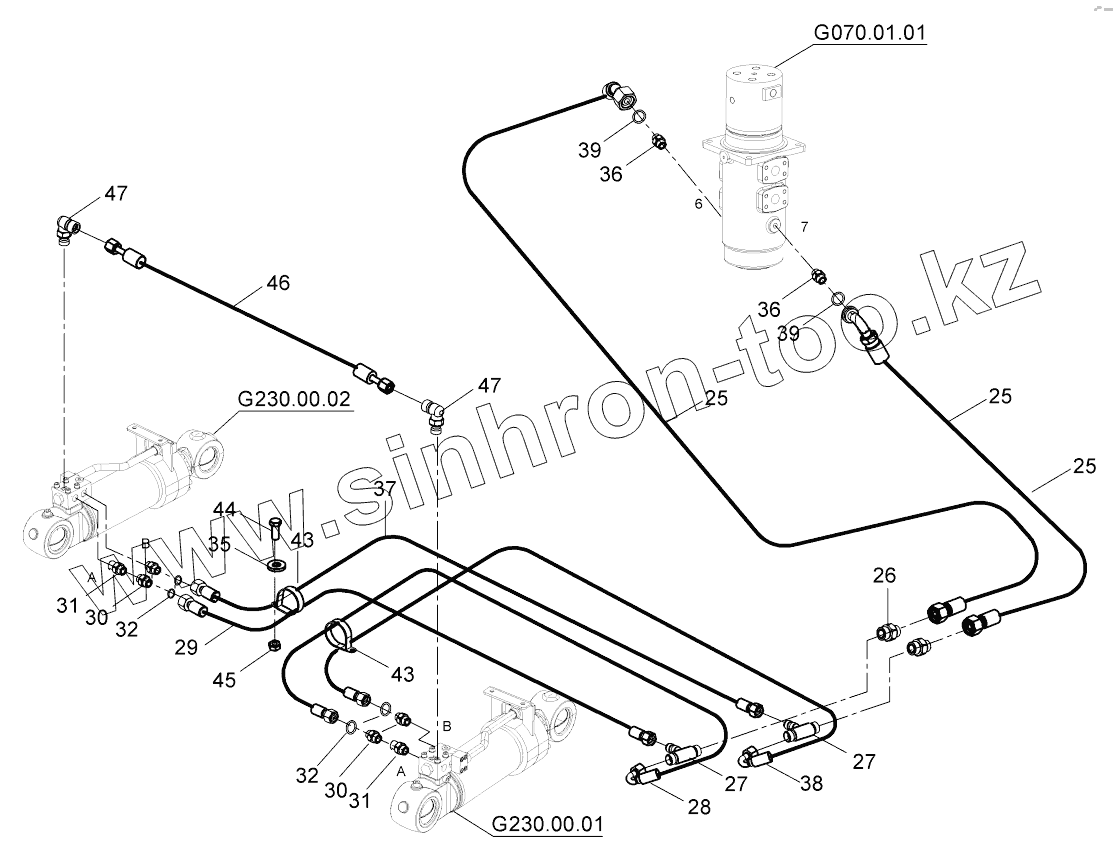

LOWER FRAME HYDRAULIC PIPING, DOZER
Каталог запасных частей к технике: Hidromek HMK 230LC3. LOWER FRAME HYDRAULIC PIPING, DOZER
