GENERATOR
ENGINE WIRING HARNESS
HARNESS FIXING PARTS
ELECTRIC CONTROL PARTS 1
ELECTRIC CONTROL PARTS 2
ELECTRIC CONTROL & OTHER PARTS
INLET MANIFOLD
EXHAUST MANIFOLD
TURBOCHARGER SYSTEM
EGR
EGR WATER PIPING
1
2
3A
3B
4
6
10
14
14
15
17
18
19
20
21
22
23
39
43
49A
49B
62
65
71
87
88
89

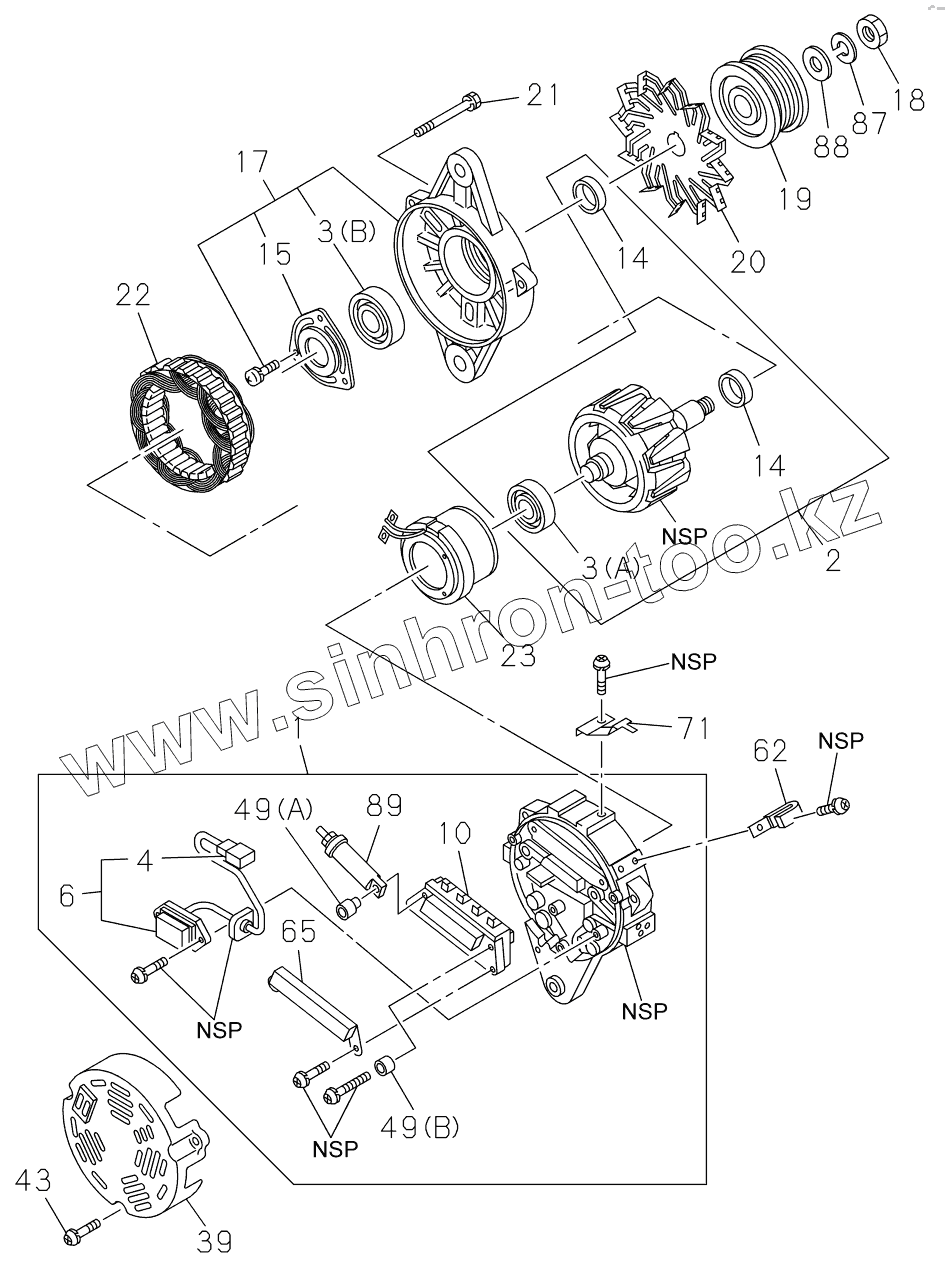

Позиция на иллюстрации
Заводской номер детали
Название детали
H349004143A
H349004143A
ALTERNATOR ASSY
1
H349004506
COVER ASSY
2
H349004507
KIT, ROTOR
3A
H349004508
ROLLING BEARING
3B
H349004509
ROLLING BEARING
4
H349004510
TERMINAL
6
H349004511
REGULATOR ASSY
10
H349004512
RECTIFIER
14
H349004513
COLLAR
15
H349004514
RETAINER
17
H349004515
COVER ASSY
18
H349004516
NUT
19
H349004517
PULLEY
20
H349004518
FAN
21
H349004519
BOLT
22
H349004520
STATOR
23
H349004521
COIL
39
H349004522
COVER
43
H349004523
SCREW
49A
H349004524
BUSHING
49B
H349004525
BUSHING
62
H349004526
CLAMP
65
H349004527
CONDENSER
71
H349004528
HOLDER
87
H349004529
WASHER
88
H349004530
WASHER
89
H349004531
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
