Каталог запасных частей к технике: Hidromek HMK 230LC3. FUEL SYSTEM
1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-9
5
5
6
7
7
8
8
8
8
9
9
9
9
9
9
9
10
11
12
12
13
13
14
14
15
16
17
18
18
19
19
20
20
20
20
20
21
22
22
22
23
23
23
23
24
25
26
27
28
29
31
32
32
32
33
34
35
36
37
38
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
62
62
63

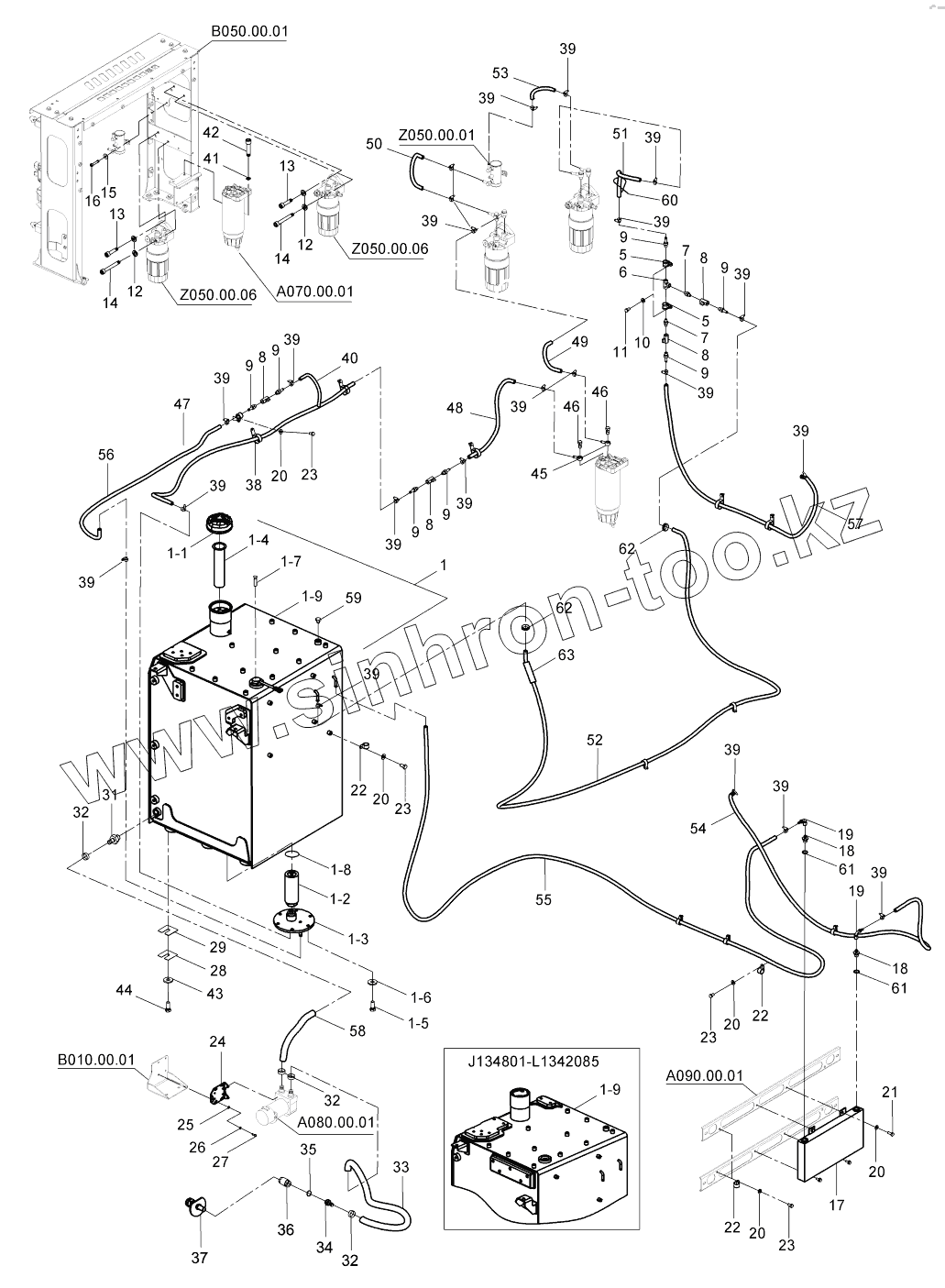

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H342527600 | TANK, FUEL | |
| 1-1 | H342503012 | CAP, TANK | |
| 1-2 | H342505500 | Filter | |
| 1-3 | H342523600 | COVER | |
| 1-4 | H342524200 | STRAINER | |
| 1-5 | N010232438 | BOLT | |
| 1-6 | N030810015 | Washer | |
| 1-7 | N043700952 | SCREW | |
| 1-8 | N102009936 | O-ring, end cap | |
| 1-9 | H342527701 | TANK, FUEL | |
| 5 | N077001900 | CLAMP | |
| 6 | N16O145000 | FITTING, TEE | |
| 7 | H342521600 | FITTING | |
| 8 | N140030200 | BALL VALVE | |
| 9 | H342521400 | FITTING | |
| 10 | N031310010 | WASHER | |
| 11 | N010232138 | BOLT | |
| 12 | N030810015 | Washer | |
| 13 | N015890854 | BOLT | |
| 14 | N015890926 | BOLT | |
| 15 | N030020004 | WASHER | |
| 16 | N015870352 | BOLT | |
| 17 | H252512000 | FUEL COOLER | |
| 18 | N16K520203 | FITTING | |
| 19 | N115220308 | HOSE FITTING | |
| 20 | N030810014 | Washer | |
| 21 | N010232114 | Bolt | |
| 22 | N077012508 | CLAMP | |
| 23 | N010232078 | Bolt | |
| 24 | H342520201 | BRACKET | |
| 25 | N030100013 | WASHER | |
| 26 | N031310008 | WASHER | |
| 27 | N015870302 | BOLT | |
| 28 | H343409500 | Shim | |
| 29 | H343410400 | Shim | |
| 31 | H342505300 | Connector | |
| 32 | N074322032 | CLAMP | |
| 33 | H342506300 | Hose, Suction | |
| 34 | H342520300 | FITTING | |
| 35 | N030000018 | BONDED SEAL | |
| 36 | H342520100 | VALVE, CHECK | |
| 37 | H342522400 | STRAINER | |
| 38 | N077014008 | CLAMP | |
| 39 | N074010016 | CLAMP | |
| 40 | H332502000 | HOSE | |
| 41 | N030810001 | Washer | |
| 42 | N015891214 | BOLT | |
| 43 | N030560006 | WASHER | |
| 44 | N010233578 | Bolt | |
| 45 | H349003257 | Joint | |
| 46 | N212141026 | FITTING, BANJO BOLT | |
| 47 | H342528900 | HOSE | |
| 48 | H342529000 | HOSE | |
| 49 | H342529100 | HOSE | |
| 50 | H342529200 | HOSE | |
| 51 | H342529400 | HOSE | |
| 52 | H342529700 | HOSE | |
| 53 | H342520600 | HOSE | |
| 54 | H342529500 | HOSE | |
| 55 | H342529600 | HOSE | |
| 56 | H342529800 | HOSE | |
| 57 | H342529900 | HOSE | |
| 58 | H342506401 | HOSE | |
| 59 | N010232726 | BOLT | |
| 60 | 51012200 | Clip | |
| 61 | N030000015 | Washer | |
| 62 | 54502300 | TAPE | |
| 63 | N9945C0800 | PROTECTOR, HOSE |
