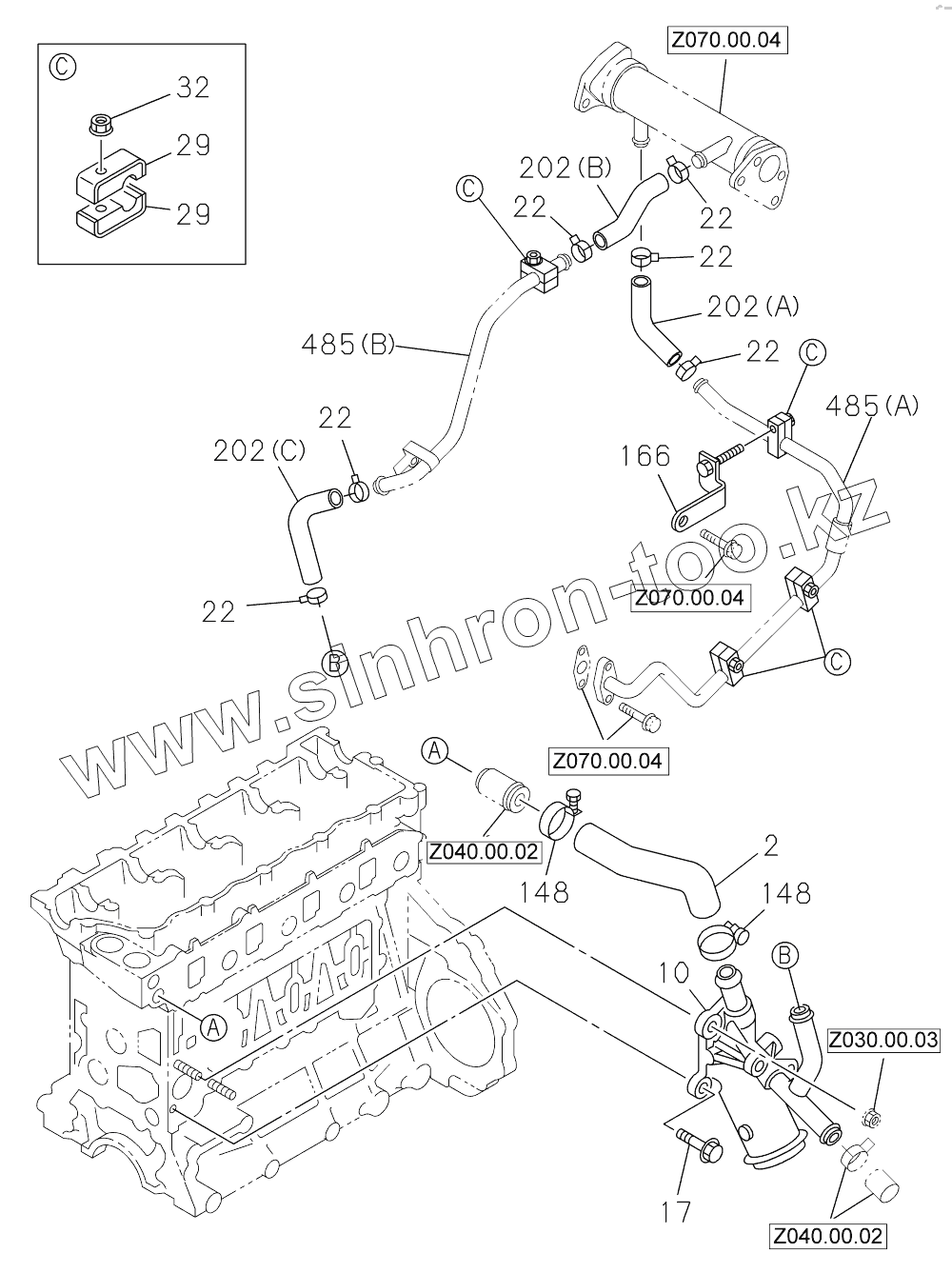

EGR WATER PIPING
2
10
17
22
22
22
22
22
22
29
29
32
148
148
166
202A
202B
202C
485A
485B
Позиция на иллюстрации
Заводской номер детали
Название детали
2
H349004037
HOSE
10
H349004322A
PIPE
17
H349004323
BOLT
22
H349004324
CLAMP
29
H349004325
CLAMP
32
H349004166
NUT
148
H349004326
CLAMP
166
H349004327
BRACKET
202A
H349004328
HOSE
202B
H349004329
HOSE
202C
H349004328
HOSE
485A
H349004330
PIPE
485B
H349004331
PIPE
