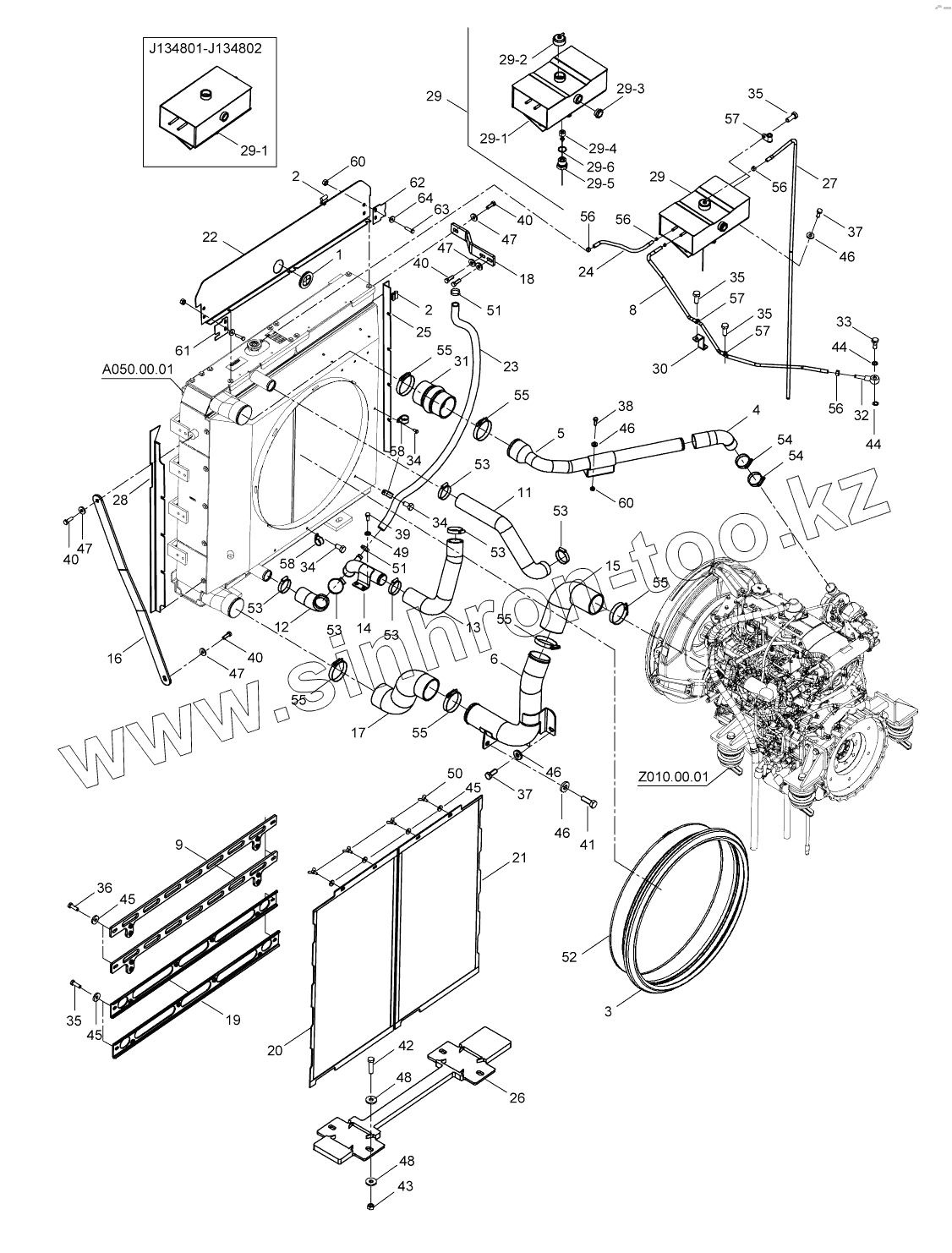

Каталог запасных частей к технике: Hidromek HMK 230LC3. COOLING SYSTEM
1
2
2
3
4
5
6
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29-1
29-1
29-2
29-3
29-4
29-5
29-6
30
31
32
33
34
34
34
35
35
35
35
36
37
37
38
39
40
40
40
40
41
42
43
44
44
45
45
45
46
46
46
46
47
47
47
47
48
48
49
50
51
51
52
53
53
53
53
53
53
54
54
55
55
55
55
55
55
56
56
56
56
57
57
57
58
58
60
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 98Y020550 | GROMMET | |
| 2 | 98Z020010 | Wheather Strip | |
| 3 | H342440702 | BELLOWS | |
| 4 | H342449300 | HOSE | |
| 5 | H342449000 | PIPE | |
| 6 | H342447800 | PIPE | |
| 8 | H342448400 | HOSE | |
| 9 | H342448600 | BRACKET | |
| 11 | H342452400 | HOSE | |
| 12 | H342452500 | HOSE | |
| 13 | H342452600 | HOSE | |
| 14 | H342452701 | PIPE | |
| 15 | H342453000 | HOSE | |
| 16 | H342453400 | PLATE | |
| 17 | H342453500 | HOSE | |
| 18 | H342453600 | PLATE | |
| 19 | H342455501 | SUPPORT | |
| 20 | H342455700 | NET WIRE | |
| 21 | H342456300 | NET WIRE | |
| 22 | H342460700 | PLATE, UPPER | |
| 23 | H342457000 | HOSE | |
| 24 | H342457100 | HOSE | |
| 25 | H342460900 | PLATE | |
| 26 | H342457400 | RUBBER PART | |
| 27 | H342458300 | HOSE | |
| 28 | H342460800 | PLATE | |
| 29 | H342459500 | TANK, EXPANSION | |
| 29-1 | H342457804 | TANK, EXPANSION | |
| 29-2 | F9929100 | CAP, TANK | |
| 29-3 | H342457900 | INDICATOR | |
| 29-4 | H379080003A | SENSOR, LEVEL | |
| 29-5 | H372422800 | FITTING | |
| 29-6 | N102002835 | O-RING | |
| 30 | H372406500 | BRACKET | |
| 31 | H372415800 | HOSE | |
| 32 | H372416400 | FITTING, BANJO JOINT | |
| 33 | H372416500 | FITTING, BANJO BOLT | |
| 34 | N010232078 | Bolt | |
| 35 | N010232114 | Bolt | |
| 36 | N010232138 | BOLT | |
| 37 | N010232462 | Bolt | |
| 38 | N010232486 | Bolt | |
| 39 | N010232822 | BOLT | |
| 40 | N010232858 | BOLT | |
| 41 | N010380566 | BOLT | |
| 42 | N010381262 | BOLT | |
| 43 | N023570314 | NUT | |
| 44 | N030150021 | WASHER | |
| 45 | N030560001 | WASHER | |
| 46 | N030560002 | WASHER | |
| 47 | N030560004 | WASHER | |
| 48 | N030560006 | WASHER | |
| 49 | N030810001 | Washer | |
| 50 | N042180398 | BOLT | |
| 51 | N074012540 | CLAMP | |
| 52 | N074226847 | CLAMP | |
| 53 | N074325070 | CLAMP | |
| 54 | N074834567 | CLAMP | |
| 55 | N074838305 | CLAMP | |
| 56 | N075221112 | CLAMP | |
| 57 | N077011208 | CLAMP | |
| 58 | N077013008 | CLAMP | |
| 60 | N023580206 | Nut | |
| 61 | H342461300 | PLATE | |
| 62 | H342461400 | PLATE | |
| 63 | N010232438 | BOLT | |
| 64 | N030810015 | Washer |
