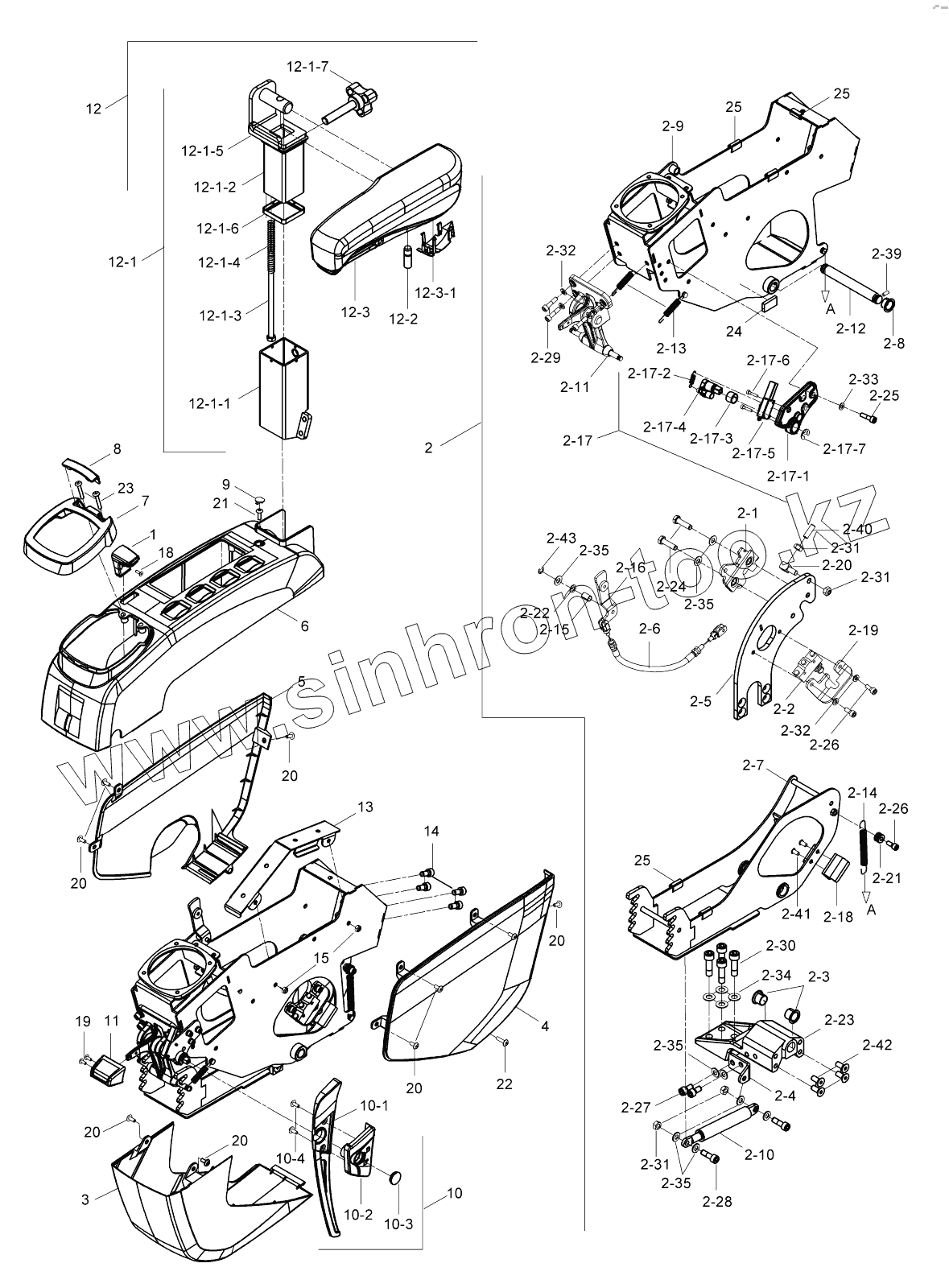

Каталог запасных частей к технике: Hidromek HMK 230LC3. CONSOLE ASSY, LH

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-17-1
2-17-2
2-17-3
2-17-4
2-17-5
2-17-6
2-17-7
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-26
2-27
2-28
2-29
2-30
2-31
2-31
2-31
2-32
2-32
2-33
2-34
2-35
2-35
2-35
2-35
2-39
2-40
2-41
2-42
2-43
3
4
5
6
7
8
9
10
10-1
10-2
10-3
10-4
11
12
12-1
12-1-1
12-1-2
12-1-3
12-1-4
12-1-5
12-1-6
12-1-7
12-2
12-3
12-3-1
13
14
15
18
19
20
20
20
20
20
20
21
22
23
24
25
25
25
Позиция на иллюстрации Заводской номер детали Название детали
H906102001 H906102001 CONSOLE , LEFT
1 F9940411 KNOB
2 H906102100 MECHANISM, LEFT
2-1 F9960260 LOCK
2-2 H346116100 Locking Ass'y
2-3 H906102200 BUSHING
2-4 H906102300 BRACKET
2-5 H906102400 BRACKET
2-6 H906102800 WIRE
2-7 H906103300 CONSOLE , LEFT
2-8 H906104200 BUSHING
2-9 H906104300 CONSOLE , LEFT
2-10 H906105900 GAS SPRING
2-11 H906109400 ARM
2-12 H906124800 PIN
2-13 H906125102 SPRING
2-14 H906125200 SPRING
2-15 H906125300 BUSHING
2-16 H906125400 ARM
2-17 H906124100 BRACKET
2-17-1 H906124300 BRACKET
2-17-2 H906127300 SPRING
2-17-3 H906126500 Bushing
2-17-4 H906124400 CAM
2-17-5 H906131000 ROCKER SWITCH
2-17-6 N015874142 BOLT
2-17-7 N050760005 SNAP RING
2-18 H906127100 PLATE
2-19 H906131500 PLATE
2-20 H906131600 STOPPER
2-21 H906131701 HOLDER
2-22 H906131800 WASHER, SPECIAL
2-23 H906133100 BRACKET
2-24 N010232162 Bolt
2-25 N015870182 BOLT
2-26 N015870302 BOLT
2-27 N015870446 BOLT
2-28 N015870470 BOLT
2-29 N015890326 Bolt m6x25
2-30 N015890842 Bolt
2-31 N025900062 NUT
2-32 N030090013 WASHER
2-33 N030100011 Washer
2-34 N030100020 WASHER
2-35 N030108001 WASHER
2-39 N043120564 SCREW
2-40 N043120909 SCREW
2-41 N044320350 SCREW
2-42 N044320506 SCREW
2-43 N050760001 SNAP RING
3 H906105101 TRIM, FRONT
4 H906105201 TRIM, RIGHT
5 H906105301 TRIM, RIGHT
6 H906105401 TRIM, UPPER
7 H906105501 TRIM
8 H906105601 COVER
9 H906105701 COVER
10 H906112401 SAFETY LOCK BAR
10-1 H906112500 SAFETY LOCK BAR
10-2 H906112601 COVER
10-3 H906112701 COVER
10-4 N044720662 SCREW
11 H906133500 ARM
12 H906133900 ARM REST , LEFT
12-1 H906134000 MECHANISM
12-1-1 H906134100 PROFILE
12-1-2 H906135000 PROFILE
12-1-3 H906135500 STUD
12-1-4 H906135600 SPRING
12-1-5 H906135700 BEARING
12-1-6 H906135800 BEARING
12-1-7 H906130500 ARM
12-2 H906134700 BOLT, SPECIAL
12-3 H906136000 ARMREST, LEFT
12-3-1 H909066016 COVER
13 H906137700 PLATE
14 N015870446 BOLT
15 N025900050 BOLT
18 N044320110 SCREW
19 N044720661 SCREW
20 N044720662 SCREW
21 N044720665 SCREW
22 N044720666 SCREW
23 N044720667 SCREW
24 H130321012 ISOLATION SPONGE
25 H130135102 STRIP
K H906124200 BRACKET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
