  5. BREAKER ASSY (B230, OP)

Каталог запасных частей к технике: Hidromek HMK 230LC3. BREAKER ASSY (B230, OP)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
4
4
5
6
7
7
8
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26-1
27
27
27
27
28
28
28
29
30
31
32
33
34
34
35
36
37
38
39
40
41
41
41
42
42
42
42
42
43
43
44
45
46
47
48
49
50

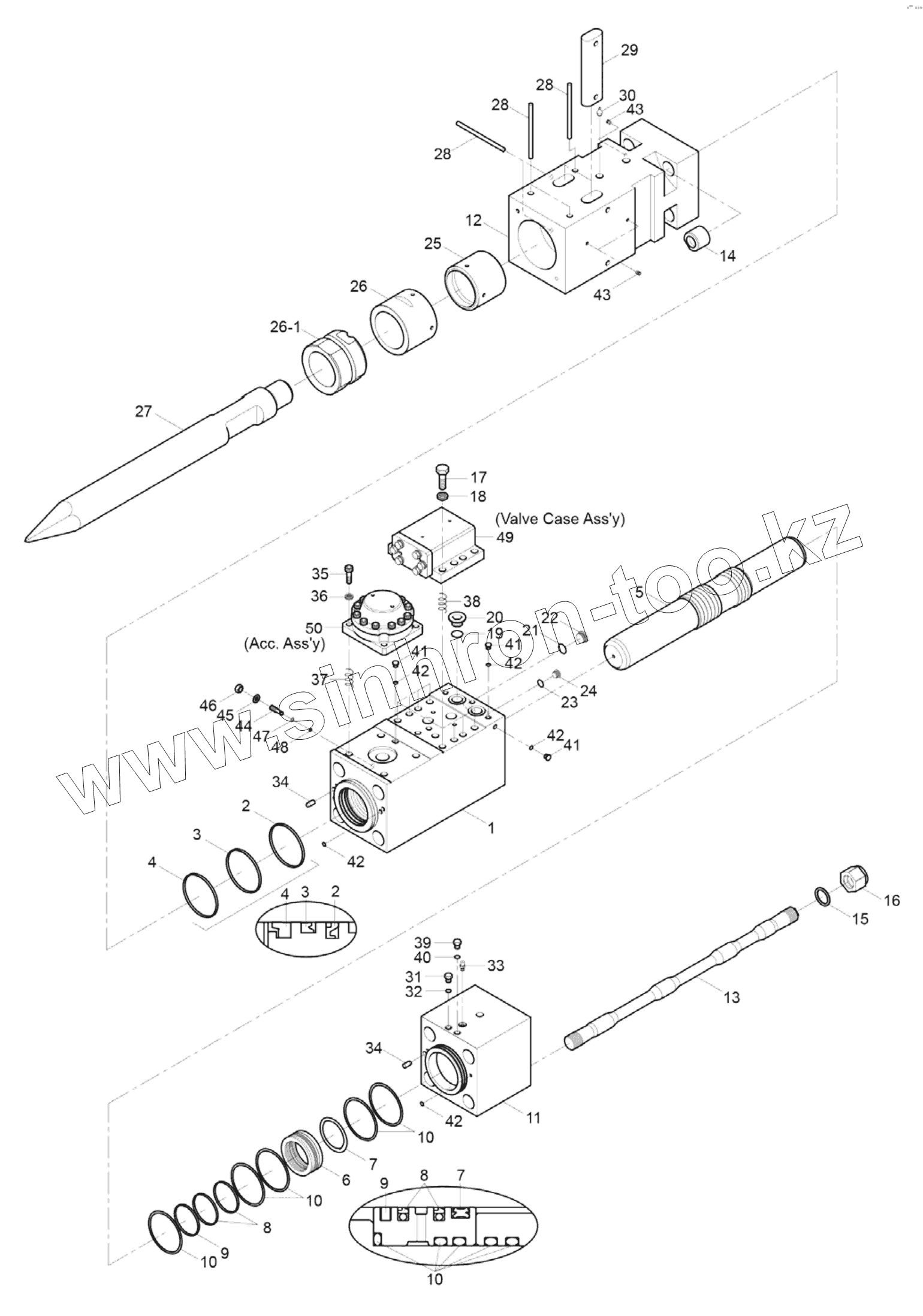

Позиция на иллюстрации Заводской номер детали Название детали
1 H349070504 CYLINDER
2 H349070505 SEAL, OIL
3 H349070506 SEAL
4 H349070507 SEAL, WIPER
5 H349070508 PISTON
6 H349070509 BUSHING
7 H349070510 QUAD RING
8 H349070511 SEAL
9 H349070512 SEAL, OIL
10 H349070513 O-RING
11 H349070514 HEAD
12 H349070515 HOUSING
13 H349070516 STUD
14 H349070517 NUT
15 H349070518 WASHER
16 H349070519 NUT
17 H349070600 BOLT
18 H349070521 WASHER
19 H259070524 O-RING
20 H259070525 PLUG
21 H349070057 O-RING
22 H349070056 PLUG
23 H349070059 O-RING
24 H349070058 PLUG
25 H349070528 RING
26 H349070529 COVER
26-1 H349070530 COVER
27 H349070500 CHISEL, MOIL
27 H349070501 CHISEL, WEDGE
27 H349070502 CHISEL, CONICAL
27 H349070503 CHISEL, BLUNT
28 H349070531 PIN
29 H349070532 WEDGE
30 H259070536 GREASE NIPPLE
31 H259070538 CAP
32 H259070540 O-RING
33 H259070539 VALVE
34 H259070523 PIN
35 H349070027 BOLT
36 H349070521 WASHER
37 H349070036 HELICOIL
38 H349070541 HELICOIL
39 H259070541 PLUG
40 H259070540 O-RING
41 H209070053 PLUG
42 H259070542 O-RING
43 H259070537 PLUG
44 H259070355 SCREW, ADJUSTING
45 H259070550 WASHER
46 H259070356 NUT
47 H259070552 BACK-UP RING
48 H259070553 O-RING
49 H349070552 HOUSING
50 H349070553 ACCUMULATOR
K1 H349070554 KIT, SEAL, COMPLETE
K2 H349070555 KIT, SEAL, CYLINDER
K3 H349070556 KIT, SEAL, VALVE CASE
K4 H349070557 KIT, SEAL, ACCUMULATOR
T1 H349070558 KIT, STUD
