BOOM SAFETY LOCK SYSTEM (OP)

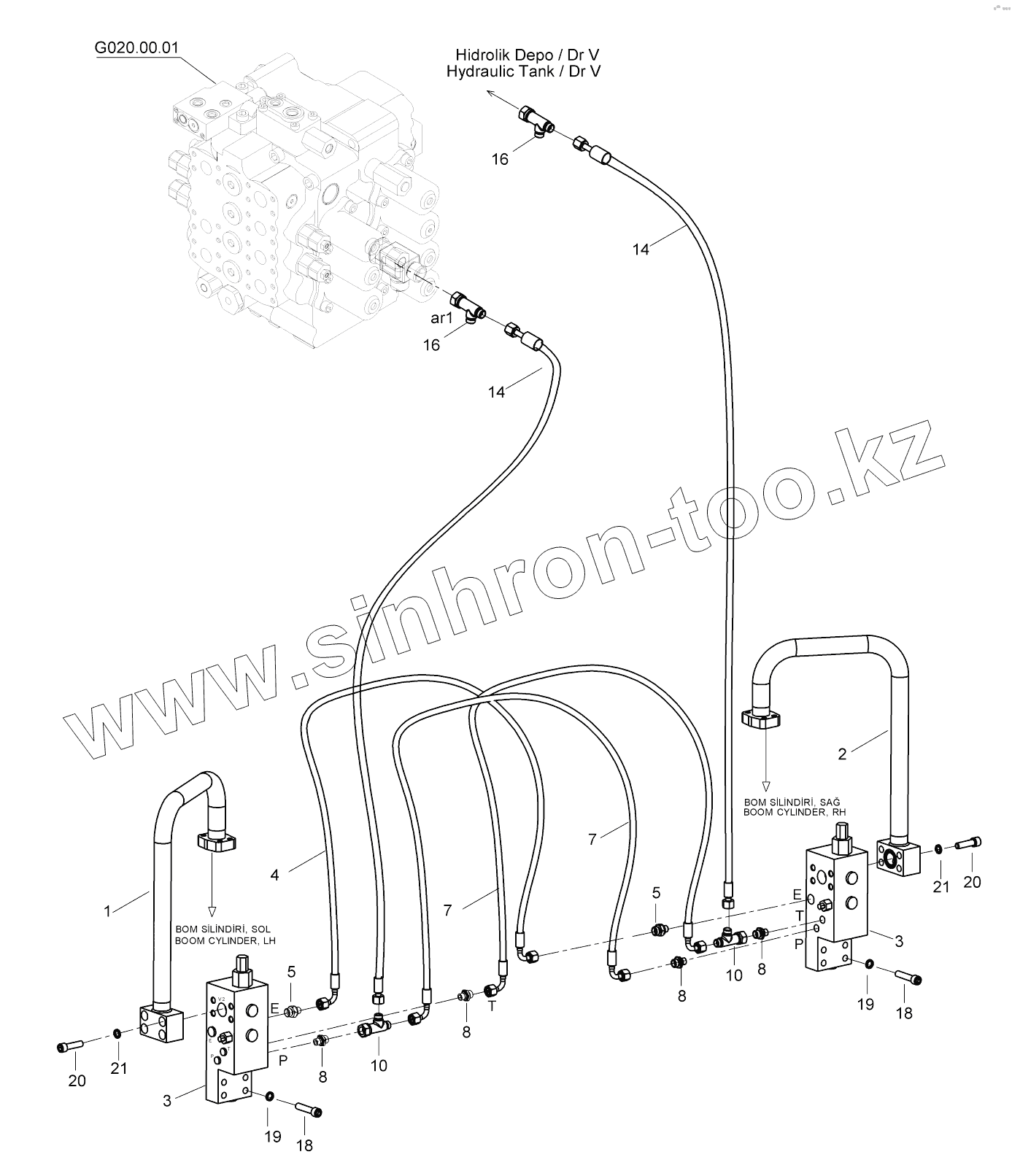

Каталог запасных частей к технике: Hidromek HMK 230LC3. BOOM SAFETY LOCK SYSTEM (OP)
