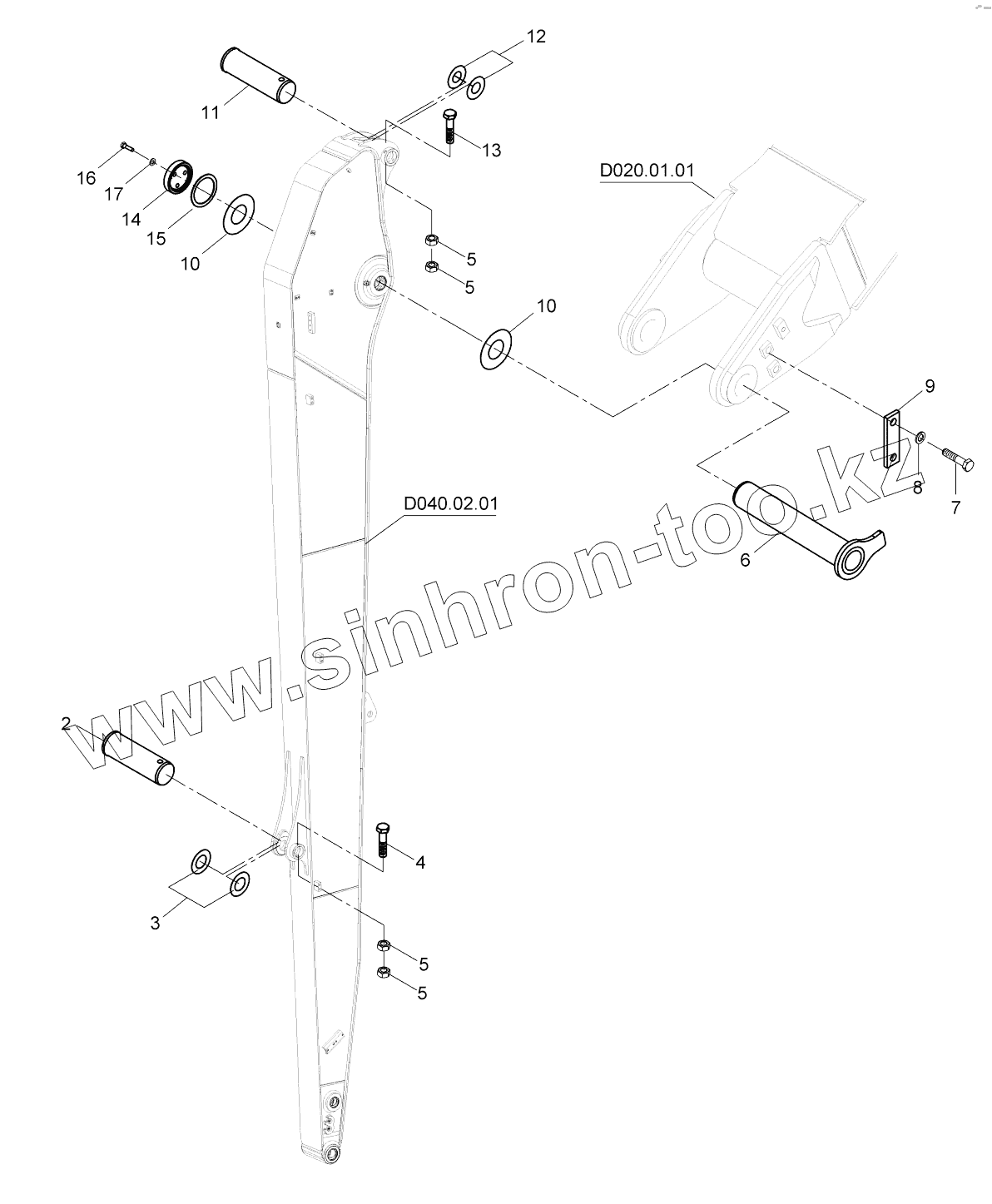

Позиция на иллюстрации
Заводской номер детали
Название детали
2
H205001200
PIN
3
N082081151
SHIM
4
N010381406
BOLT
5
N023570314
NUT
6
H345001205
PIN
7
N010233530
BOLT
8
N031310014
WASHER
9
H345000500
Plate
10
N082091181
SHIM
11
H345001100
Pin
12
N082081141
SHIM
13
N010381418
Bolt
14
H345003000
PLATE
15
H345003200
SHIM
16
N010380842
BOLT
17
N030810001
Washer
