Каталог запасных частей к технике: Hidromek HMK 230LC3. ARM CYLINDER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
50
50
51

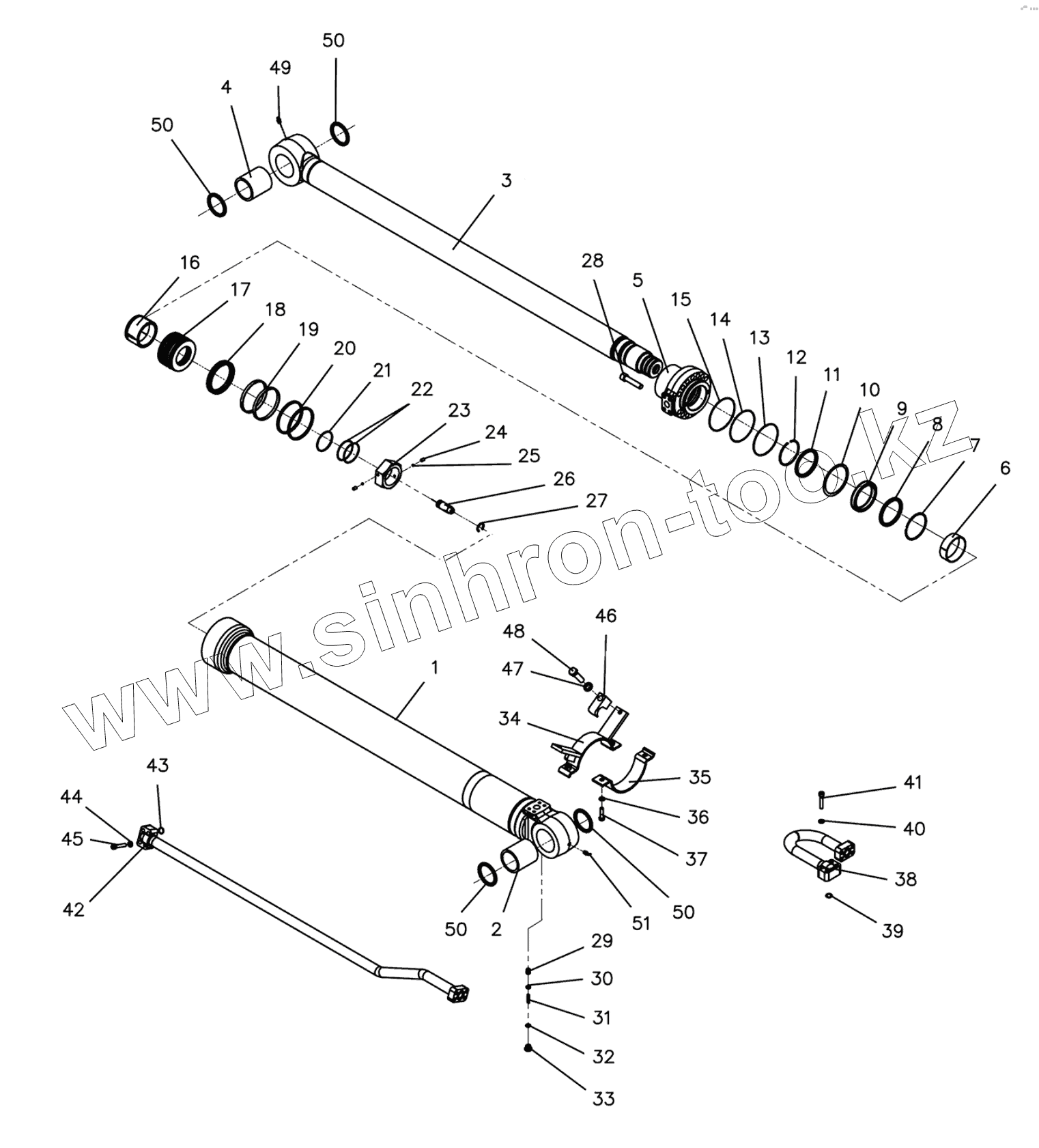

Позиция на иллюстрации Заводской номер детали Название детали
H343307001 H343307001 CYLINDER ASSY
1 H349038003A BARREL ASSY
2 H349038108 BUSHING
3 H349038140 PISTON ROD ASSY
4 H349038108 BUSHING
5 H349038141 CYLINDER GLAND
6 H259038102 BUSHING
7 N051350072 SNAP RING
8 H259038099 SEAL, OIL
9 H259038098 SEAL
10 H259038104 BACK-UP RING
11 H259038100 SEAL, WIPER
12 H229038045 SNAP RING
13 H259038101 O-RING
14 H259038095 BACK-UP RING
15 H259038103 O-RING
16 H349038109 CUSHION RING
17 H349038110 PISTON
18 H259038097 SEAL, PISTON
19 H259038105 GUIDE RING
20 H259038093 SEAL, WIPER
21 H259038067A O-RING
22 H259038068A BACK-UP RING
23 H349038111 NUT
24 H379038100 SCREW
25 H379038025 BALL
26 H259038070B PLUNGER
27 H343309900 Retaining Ring
28 H259038023 BOLT
29 H349038112 VALVE, CHECK
30 H349038117 SPRING
31 H343308500 Cap
32 H349038006 O-RING
33 H349038007 PLUG
34 H349038113 CLAMP
35 H259038041A CLAMP
36 N031310012 SPRING WASHER
37 H259038026 BOLT
38 H349038114 PIPE ASSY
39 N102003335 O-ring
40 N031310012 SPRING WASHER
41 H259038026 BOLT
42 H349038115 PIPE ASSY
43 N102003335 O-ring
44 N031310012 SPRING WASHER
45 H349038116 BOLT
46 H259038082A CLAMP
47 H209038172 WASHER
48 H379038116 BOLT
49 H259038033 GREASE NIPPLE
50 N105809505 SEAL, WIPER
51 H259038048 GREASE NIPPLE
K H259038050A KIT, SEAL
