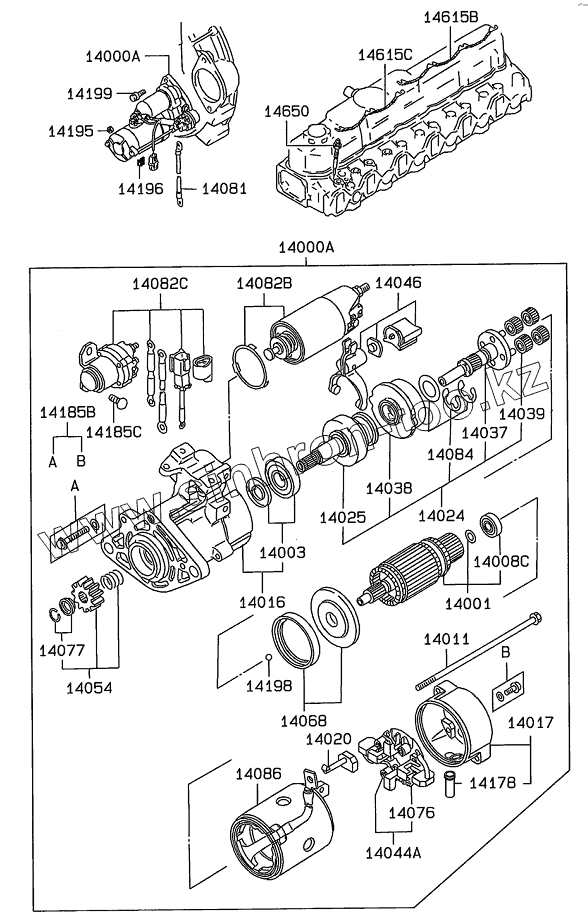

Каталог запасных частей к технике: Hidromek HMK 220LC-2. STARTER
14000A
14000A
14001
14003
14008C
14011
14016
14017
14020
14024
14025
10437
14038
14039
14044A
14046
14054
14068
14076
14077
14081
14082B
14082C
14084
14086
14178
14185B
14185C
14195
14196
14198
14199
14615B
14615C
14650
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14000A | H349003670 | Stter Ass'y | |
| 14001 | H349003671 | mature KIT, Stter | |
| 14003 | H349003672 | Being&Sleeve KIT | |
| 14008C | H349003673 | Being, mature | |
| 14011 | H349003674 | Bolt , Stter | |
| 14016 | H349003675 | Bracket, Stter, FR | |
| 14017 | H349003676 | Bracket, Stter, FR | |
| 14020 | H349003677 | Brush, Stter | |
| 14024 | H349003678 | Clutch KIT, Stter Pinion & Reduction | |
| 14025 | H349003679 | Clutch, Stter Overrun | |
| 10437 | H349003680 | Ge, Stter Reduc. | |
| 14038 | H349003681 | Ge, Stter Reduc. | |
| 14039 | H349003682 | Ge, Stter Reduc. | |
| 14044A | H349003683 | . Holder Ass'y, Brush | |
| 14046 | H349003684 | Lever KIT, Str. Pinion | |
| 14054 | H349003685 | Pinion KIT, Stter | |
| 14068 | H349003686 | Gasket , Yoke | |
| 14076 | H349003687 | Spring, Stter Brush | |
| 14077 | H349003688 | Stopper KIT, Str. Pinion | |
| 14081 | Strap | Strap, Eth | |
| 14082B | H349003690 | Switch KIT, Stter Magnetic | |
| 14082C | H349003691 | Switch KIT, Stter Magnetic | |
| 14084 | H349003692 | Washer , Shaft | |
| 14086 | H349003693 | Yoke, Stter | |
| 14178 | H349003694 | Grommet, Stter INR | |
| 14185B | H349003695 | Screw, Stter INR | |
| 14185C | H349003696 | Screw, Stter INR | |
| 14195 | H349003697 | Nut, Stter | |
| 14196 | H349003698 | Clip, Stter | |
| 14198 | H349003699 | Ball, Stter INR | |
| 14199 | H349003700 | Bolt, Stter | |
| 14615B | H349003701 | Plate, Glow Plug Conn. | |
| 14615C | H349003702 | Plate, Glow Plug Conn. | |
| 14650 | H349003703 | Glow Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
