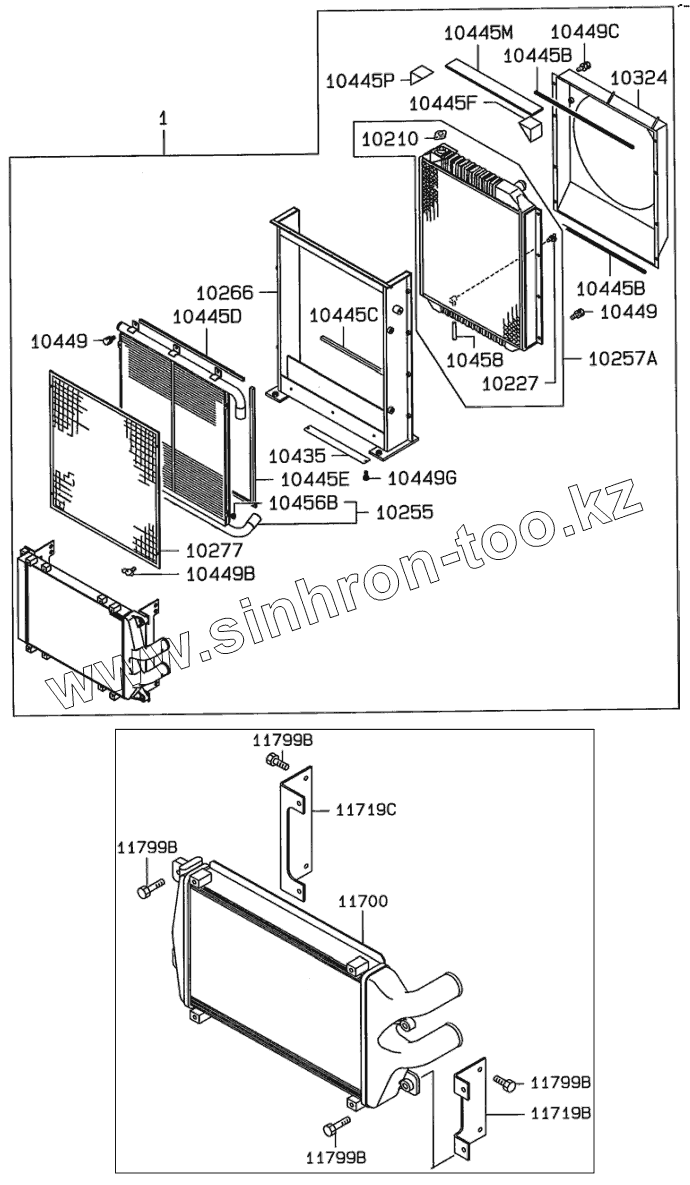

Каталог запасных частей к технике: Hidromek HMK 220LC-2. RADIATOR
1
10210
10227
10255
10257A
10266
10277
10324
10435
10445B
10445B
10445C
10445D
10445E
10445F
10445M
10445P
10449
10449
10449
10449B
10449C
10449G
10456B
10458
11700
11719B
11719C
11799B
11799B
11799B
11799B
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H342422800 | Water & Oil Rad. Ass'y | |
| 10210 | H349003750 | Cap, Radiator | |
| 10227 | H349003751 | Cock | |
| 10255 | H349003752 | Oil Cooler, Radiator | |
| 10257A | H349003753 | Water Cooler Ass'y | |
| 10266 | H349003754 | Gud, Radiator | |
| 10277 | H349003755 | Protector, Oil Cooler | |
| 10324 | H349003757 | Shroud, Cooling Fan | |
| 10435 | H349003758 | Seat, Rad. ., Lwr | |
| 10445B | H349003759 | Gasket, Radiator | |
| 10445C | H349003760 | Gasket, Radiator | |
| 10445D | H349003761 | Gasket, Radiator | |
| 10445E | H349003762 | Gasket, Radiator | |
| 10445F | H349003763 | Gasket, Radiator | |
| 10445M | H349003764 | Gasket, Radiator | |
| 10445P | H349003765 | Gasket, Radiator | |
| 10449 | H349003766 | Bolt, Radiator | |
| 10449 | H349003767 | Bolt, Radiator | |
| 10449B | H349003768 | Bolt, Radiator | |
| 10449C | H349003769 | Bolt, Radiator | |
| 10449G | H349003770 | Bolt, Radiator | |
| 10456B | H349003771 | Nut, Radiator | |
| 10458 | H349003772 | Pipe, Radiator | |
| 11700 | H342422900 | Air Cooler | |
| 11719B | H349003774 | Bracket, Inter Cooler | |
| 11719C | H349003775 | Bracket, Inter Cooler | |
| 11799B | H349003776 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
