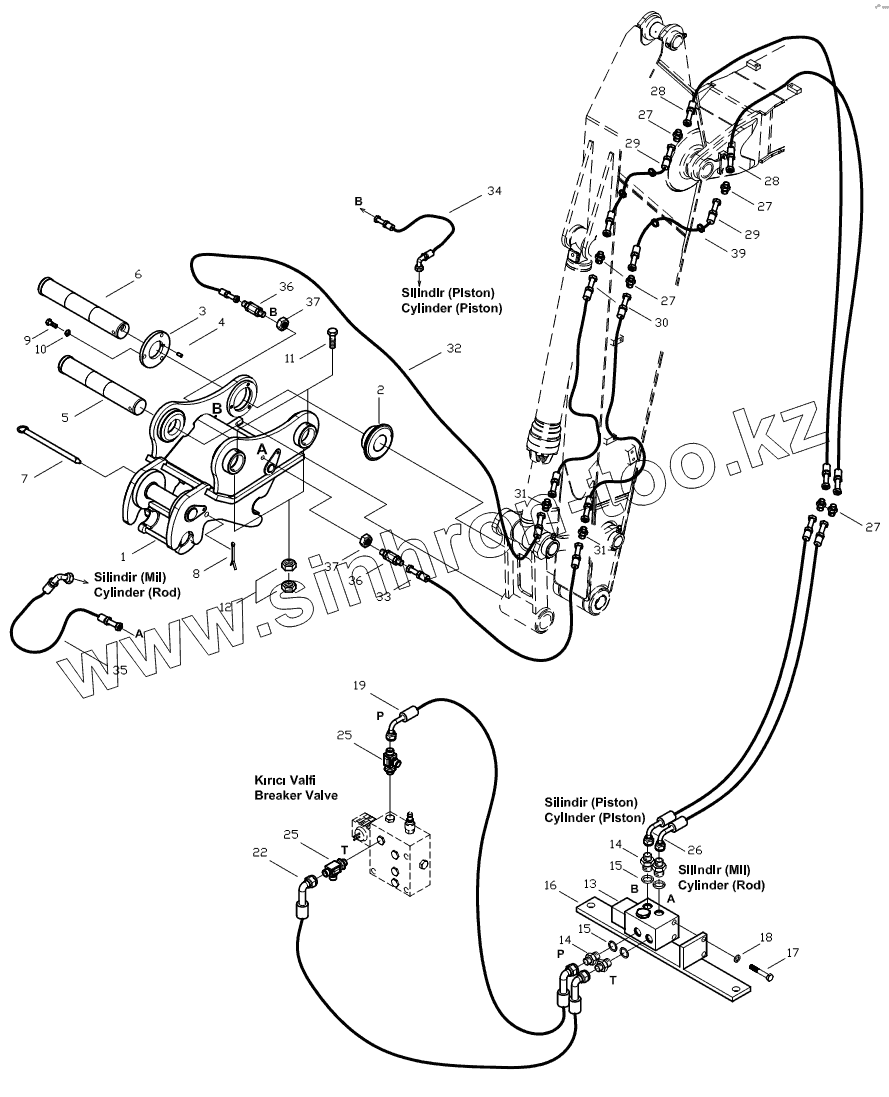

Каталог запасных частей к технике: Hidromek HMK 220LC-2. QUICK COUPLING ASSEMBLY
H340110002
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
22
25
25
26
27
27
27
27
28
28
29
29
30
31
31
32
33
34
35
36
36
37
37
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| H340110002 | H340110002 | Quick Coup. Ass'y | |
| 1 | H340110102 | Quick Coup. Mount. | |
| 2 | H345303502 | Spacer | |
| 3 | H345303600 | Plate | |
| 4 | H345303700 | Pin, Lock | |
| 5 | H345002000 | Pin | |
| 6 | H345303301 | Pin | |
| 7 | H340113100 | Pin, Ringed | |
| 8 | N06/1006060 | Pin, Split | |
| 9 | N01/0381226 | Bolt, Hex. | |
| 10 | N03/1310014 | Washer, Spr. | |
| 11 | N01/0381418 | Bolt, Hex. | |
| 12 | N02/3570314 | Nut, Hex. | |
| 13 | H340112400 | Valve, Quick Coup. | |
| 14 | N16/K114348 | Connector | |
| 15 | N10/2001322 | O-Ring | |
| 16 | H340114001 | Plate, Quick Coup. | |
| 17 | N01/5870458 | Bolt, Cyl. Hd. | |
| 18 | N03/1310010 | Washer, Spr. | |
| 19 | 99S098210 | Hose | |
| 22 | 99Q098210 | Hose | |
| 25 | H343202801 | Tee | |
| 26 | 99Q098256 | Hose | |
| 27 | N16/K200321 | Connector | |
| 28 | 99N0982140 | Hose | |
| 29 | 99Q198227 | Hose | |
| 30 | 99Q198244 | Hose | |
| 31 | N16/K200301 | Connector | |
| 32 | 99K198213 | Hose | |
| 33 | 99M198216 | Hose | |
| 34 | 99P098205 | Hose | |
| 35 | 99T098205 | Hose | |
| 36 | N16/K200341 | Connector | |
| 37 | N02/3570326 | Nut | |
| 39 | 510/12200 | Strap |
