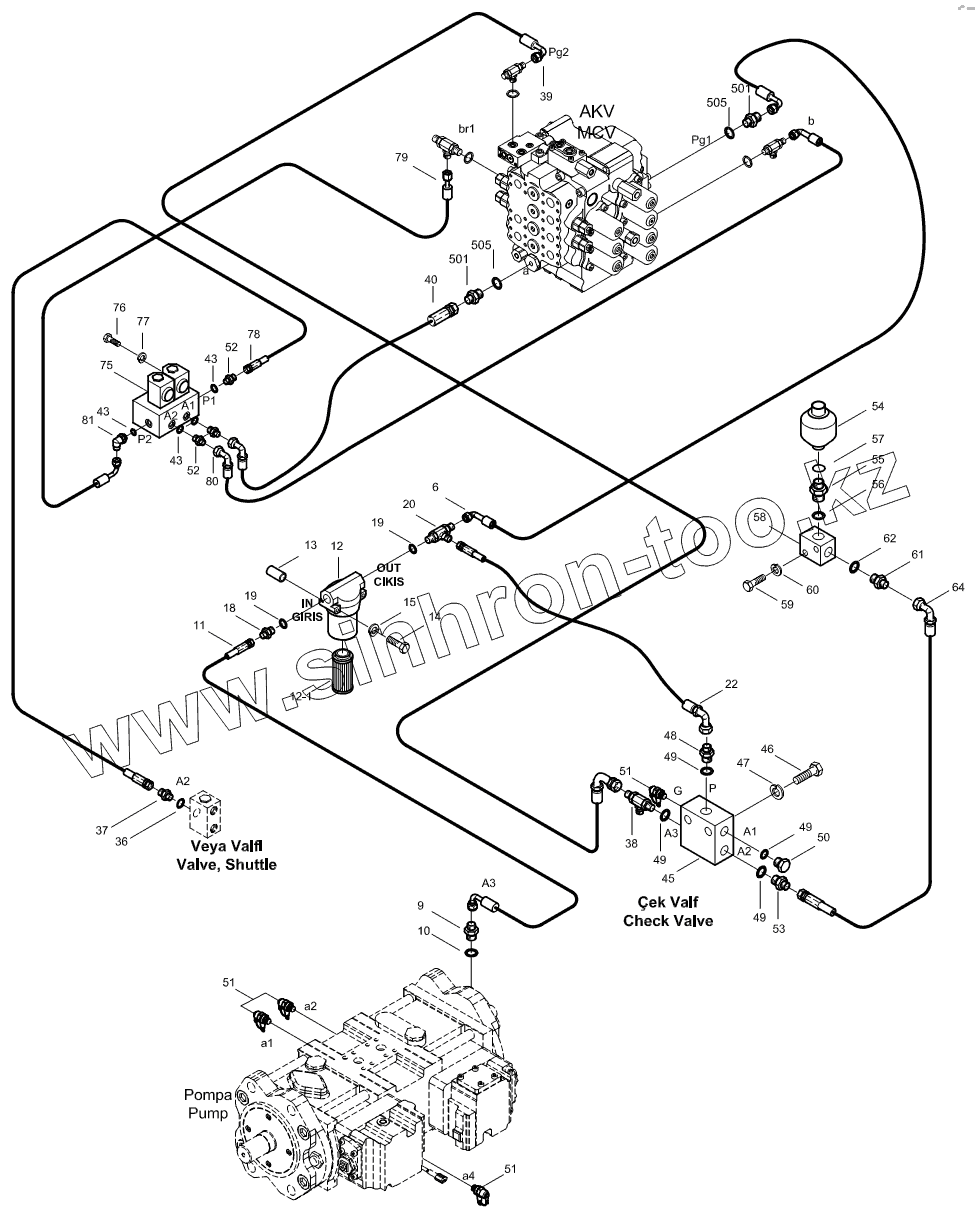

Каталог запасных частей к технике: Hidromek HMK 220LC-2. PILOT PIPING MOUNTING 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
6
9
10
11
12
12.1
13
14
15
18
19
19
20
22
36
37
38
39
40
43
43
43
45
46
47
48
49
49
49
49
50
51
51
51
52
52
53
54
55
56
57
58
59
60
61
62
64
75
76
77
78
79
80
81
501
501
505
505
Позиция на иллюстрации Заводской номер детали Название детали
6 97T091234 Hose Ass'y
9 N16/K114343 Connector
10 N10/2001724 O-Ring
11 99Q093212 Hose Ass'y
12 H343201100 Pilot Filter
12.1 H343201200 Element, Pilot Filter
13 H343201300 Spacer
14 N01/0370356 Bolt, Hex.
15 N03/1310008 Washer, Spr.
18 N16/K114343 Connector
19 N10/2001724 O-Ring
20 H343201401 Tee
22 99Q093212 Hose Ass'y
36 N10/2001024 O-Ring
37 N16/K114341 Connector
38 H343203202 Tee
39 97Q091235 Hose Ass'y
40 97S091209 Hose Ass'y
43 N10/2001024 O-Ring
45 H343202300 Check Valve, Pilot
46 N01/0380410 Bolt, Hex.
47 N03/1310010 Washer, Spr.
48 N16/K114357 Connector
49 N10/2001322 O-Ring
50 N16/X120001 Plug
51 F99/70100 Coupling, Screw
52 N16/K114341 Connector
53 N16/K114348 Connector
54 H343202501 Accumulator
55 N16/K520107 Connector
56 N10/2001322 O-Ring
57 N03/0000015 Washer
58 H343202600 Block, Accumulator
59 N01/0380650 Bolt, Hex.
60 N03/1310011 Washer, Spr.
61 N16/K114341 Connector
62 N10/2001024 O-Ring
64 97N091224 Hose Ass'y
75 H343203400 Solenoid Valve
76 N01/0232138 Bolt, Hex.
77 N03/1310010 Washer, Spr.
78 97S091206 Hose Ass'y
79 97Q091215 Hose Ass'y
80 97U091225 Hose Ass'y
81 N16/N910001 Elbow
501 N16/K114341 Connector
505 N10/2001024 O-Ring
