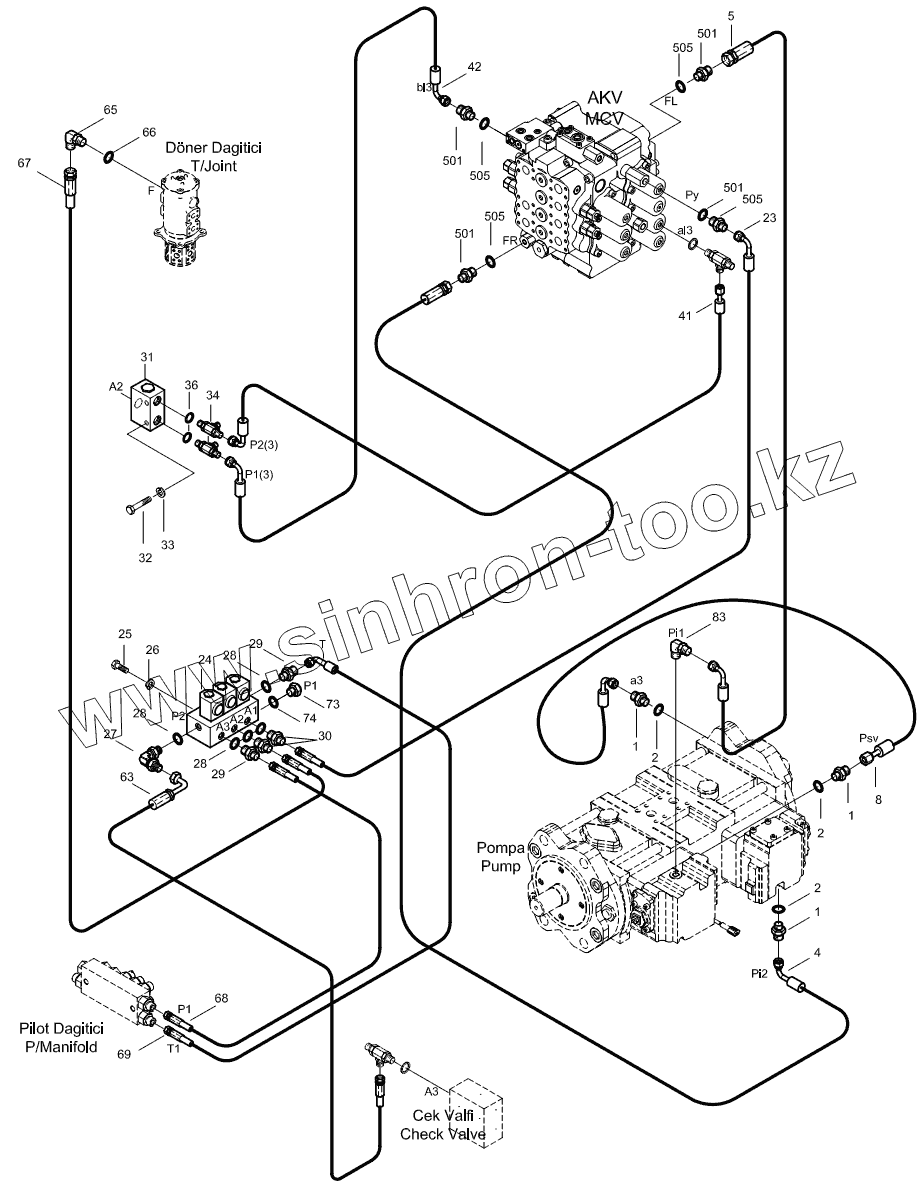

Каталог запасных частей к технике: Hidromek HMK 220LC-2. PILOT PIPING MOUNTING 2
1
1
1
2
2
2
4
5
8
23
24
25
26
27
28
28
28
29
29
30
31
32
33
34
36
41
42
63
65
66
67
68
69
73
74
83
501
501
501
501
505
505
505
505
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | N16/K114341 | Connector | |
| 2 | N10/2001024 | O-Ring | |
| 4 | 97Q091252 | Hose Ass'y | |
| 5 | 97M091252 | Hose Ass'y | |
| 8 | 97Q091210 | Hose Ass'y | |
| 23 | 97Q091256 | Hose Ass'y | |
| 24 | H343201500 | Valve Solenoid | |
| 25 | N01/0232138 | Bolt, Hex. | |
| 26 | N03/1310010 | Washer, Spr. | |
| 27 | N16/N910008 | Elbow | |
| 28 | N10/2001024 | O-Ring | |
| 29 | N16/K114356 | Connector | |
| 30 | N16/K114341 | Connector | |
| 31 | H343201601 | Valve Shuttle | |
| 32 | N01/5870398 | Bolt, Cyl. Hd. | |
| 33 | N03/1310008 | Washer, Spr. | |
| 34 | N16/T020202 | Tee | |
| 36 | N10/2001024 | O-Ring | |
| 41 | 97Q091216 | Hose Ass'y | |
| 42 | 97S091218 | Hose Ass'y | |
| 63 | 99Q092215 | Hose Ass'y | |
| 65 | N16/N910001 | Elbow | |
| 66 | N10/2001024 | O-Ring | |
| 67 | 97N091263 | Hose Ass'y | |
| 68 | 99N092290 | Hose Ass'y | |
| 69 | 99Q092290 | Hose Ass'y | |
| 73 | N16/X120004 | Plug | |
| 74 | N10/2001024 | O-Ring | |
| 83 | N16/N910001 | Elbow | |
| 501 | N16/K114341 | Connector | |
| 505 | N10/2001024 | O-Ring |
