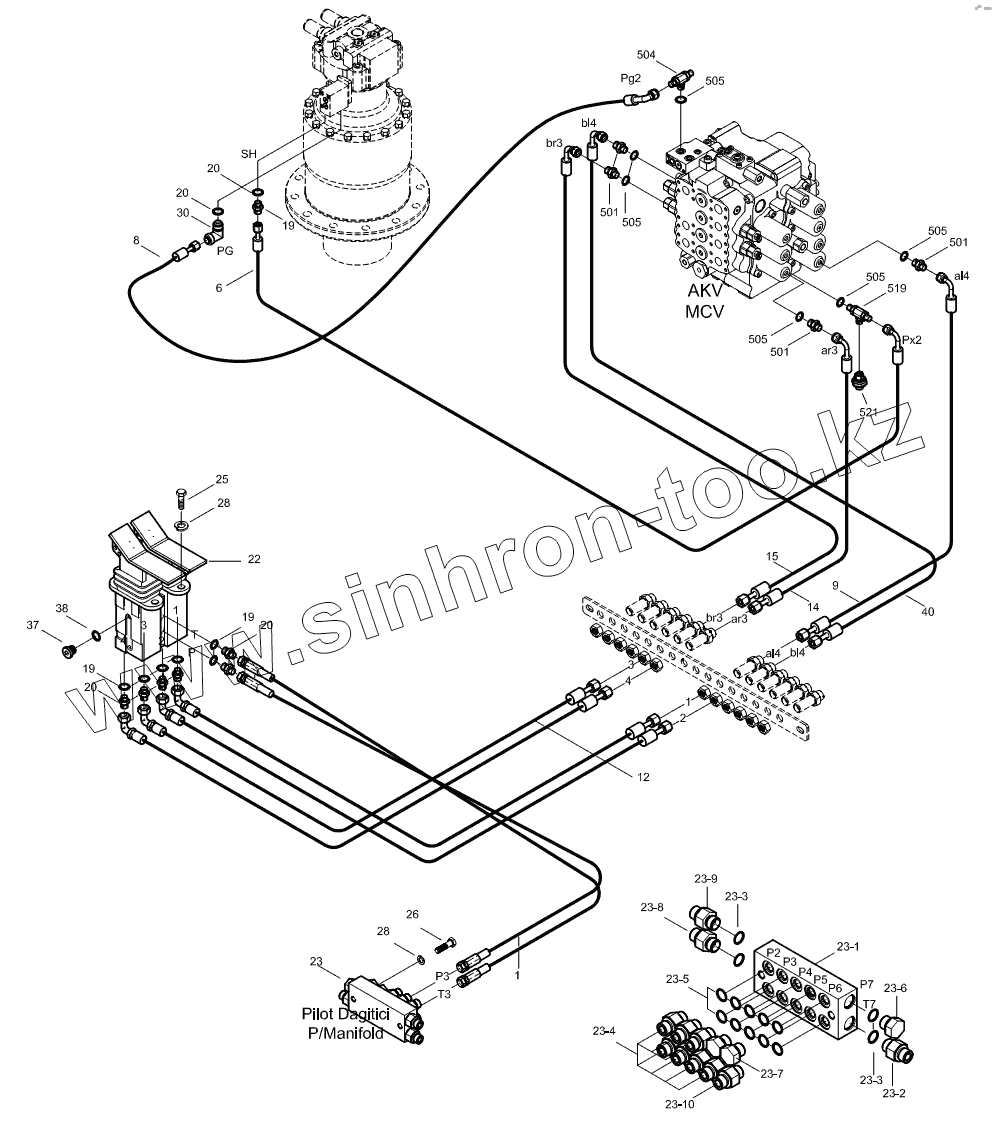

Каталог запасных частей к технике: Hidromek HMK 220LC-2. PILOT PIPING MOUNTING 1
1
1
1
6
8
9
12
14
15
19
19
19
20
20
20
20
22
23
23.1
23.2
23.3
23.3
23.4
23.5
23.6
23.7
23.8
23.9
23.10
25
26
28
28
30
37
38
40
501
501
501
504
505
505
505
505
505
519
521
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 97N091221 | Hose Ass'y | |
| 6 | 97Q091212 | Hose Ass'y | |
| 8 | 97Q091238 | Hose Ass'y | |
| 9 | 97Q091233 | Hose Ass'y | |
| 12 | 97Q091234 | Hose Ass'y | |
| 14 | 97Q091230 | Hose Ass'y | |
| 15 | 97Q091230 | Hose Ass'y | |
| 19 | N16/K114341 | Connector | |
| 20 | N10/2001024 | O-Ring | |
| 22 | H343200400 | Pedal | |
| 23 | H343200500 | Pilot Manifold Ass'y | |
| 23.1 | H343200600 | Manifold | |
| 23.2 | N16/K114343 | Connector | |
| 23.3 | N10/2001724 | O-Ring | |
| 23.4 | N16/K114341 | Connector | |
| 23.5 | N10/2001024 | O-Ring | |
| 23.6 | N16/X120003 | Plug | |
| 23.7 | N16/X120004 | Plug | |
| 23.8 | N16/K114349 | Connector | |
| 23.9 | H343200700 | Connector | |
| 23.10 | N16/K114356 | Connector | |
| 25 | N01/0232498 | Bolt, Hex. | |
| 26 | N01/0380674 | Bolt, Hex. | |
| 28 | N03/1310011 | Washer, Spr. | |
| 30 | N16/N910001 | Elbow | |
| 37 | N16/X120004 | Plug | |
| 38 | N10/2001024 | O-Ring | |
| 40 | 97Q091230 | Hose Ass'y | |
| 501 | N16/K114341 | Connector | |
| 504 | N16/R020202 | Tee | |
| 505 | N10/2001024 | O-Ring | |
| 519 | H343201701 | Tee | |
| 521 | H343201800 | Pressure Switch |
