Каталог запасных частей к технике: Hidromek HMK 220LC-2. PEDAL
H343200400
1
2
2
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
29
29
30
31
32
33
33
34
34
35
36
38
39

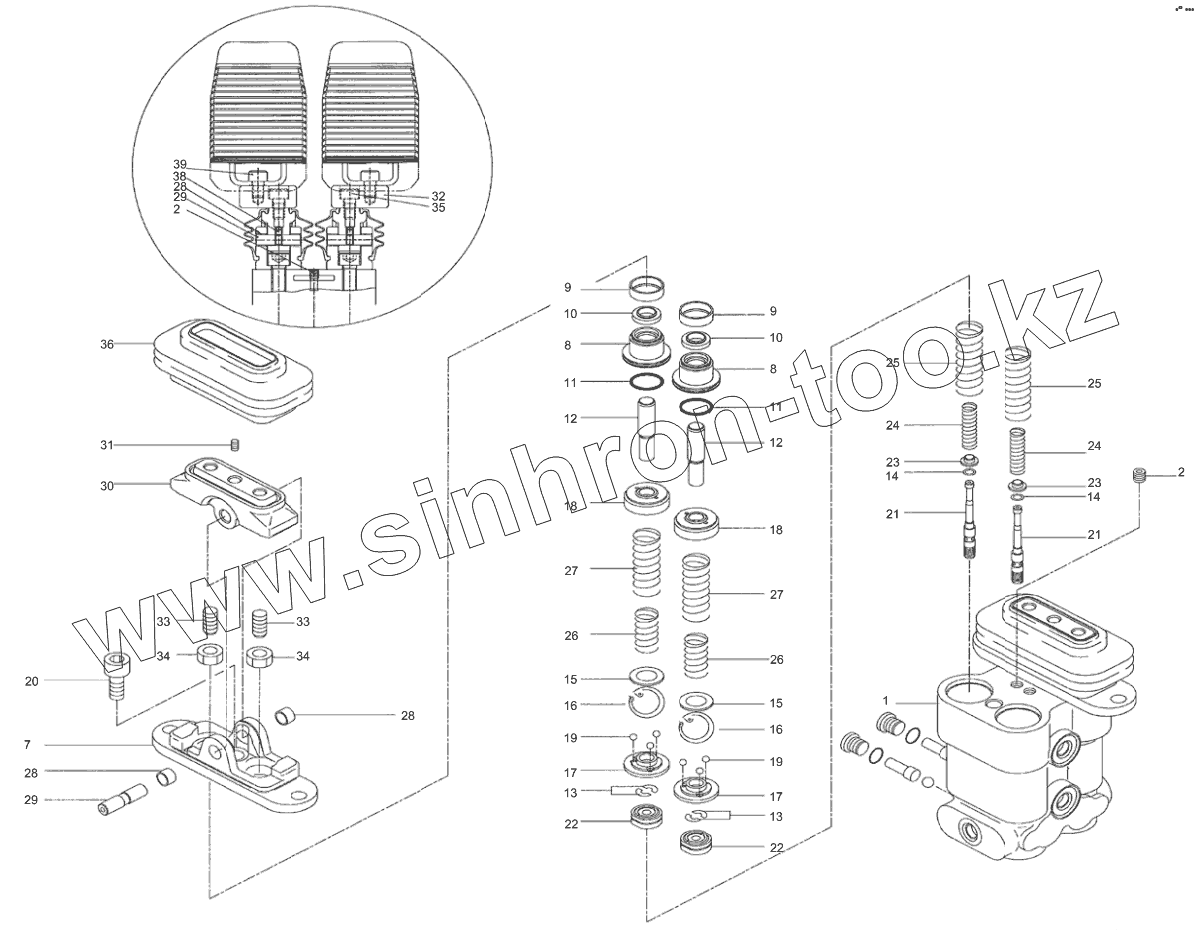

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| H343200400 | H343200400 | Pedal | |
| H349043040 | H349043040 | Seal Kit | |
| 1 | Casing | Casing | |
| 2 | Plug | Plug | |
| 7 | Cover | Cover | |
| 8 | Plug | Plug | |
| 9 | Cap | Grease Cap | |
| 10 | H349043010 | NHU Packing | |
| 11 | H349043011 | O-Ring | |
| 12 | Rod | Rod | |
| 13 | Washer | Washer | |
| 14 | Washer | Washer | |
| 15 | Seat | Seat | |
| 16 | Ring | Ring | |
| 17 | Bush | Bush | |
| 18 | Piston | Piston | |
| 19 | Ball | Ball | |
| 20 | Screw | Screw | |
| 21 | Spool | Spool | |
| 22 | Seat | Seat | |
| 23 | Washer | Washer | |
| 24 | Spring | Spring | |
| 25 | Spring | Spring | |
| 26 | Spring | Spring | |
| 27 | Spring | Spring | |
| 28 | Bush | Bush | |
| 29 | Shaft | Shaft Ass'y | |
| 30 | Cam | Cam | |
| 31 | Screw | Screw | |
| 32 | H349043032 | Block | |
| 33 | Screw | Screw | |
| 34 | Nut | Nut | |
| 35 | H349043035 | Screw | |
| 36 | H349043036 | Bellows | |
| 37 | H349043037 | Pedal | |
| 38 | H349043038 | Cover | |
| 39 | H349043039 | Screw |
