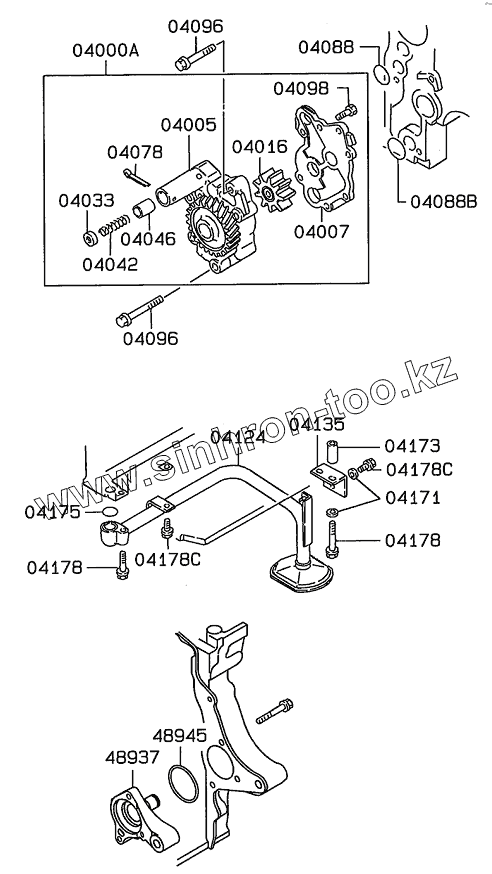

Каталог запасных частей к технике: Hidromek HMK 220LC-2. OIL PUMP AND STRAINER
04000A
04005
04007
04016
04033
04042
04046
04078
04088
04088B
04096
04096
04098
04098
04124
04135
04171
04173
04175
04178
04178
04178
04178C
04178C
48937
48945
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 04000A | H349003174 | Oil Pump Ass'y, Eng. | |
| 04005 | H349003175 | Ge and Case KIT | |
| 04007 | H349003176 | Cover, Eng Oil Pump | |
| 04016 | H349003177 | Ge, Oil Pump Driven | |
| 04033 | H349003178 | Seat, Relief Valve | |
| 04042 | H349003179 | Spring, Relief Valve | |
| 04046 | H349003180 | Valve, Pump Relief | |
| 04078 | H349003181 | Pin, Oil Pump INR | |
| 04088 | H349003182 | O-Ring | |
| 04088B | H349003183 | O-Ring, Oil Pump | |
| 04096 | H349003154 | Bolt | |
| 04098 | H349003185 | Bolt, Eng. Oil Pump | |
| 04098 | H349003186 | Bolt, Eng. Oil Pump | |
| 04124 | H349003187 | Strainer, Oil Pan | |
| 04135 | H349003188 | Stay, Oil Strainer | |
| 04171 | H349003189 | Washer | |
| 04173 | H349003190 | Spacer, Oil Strainer | |
| 04175 | H349003182 | O-Ring | |
| 04178 | H349003192 | Bolt, Oil Strainer | |
| 04178 | H349003154 | Bolt | |
| 04178C | H349003053 | Bolt | |
| 48937 | H349003195 | Spacer, Oil Pump | |
| 48945 | H349003196 | O-Ring, Oil Pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
