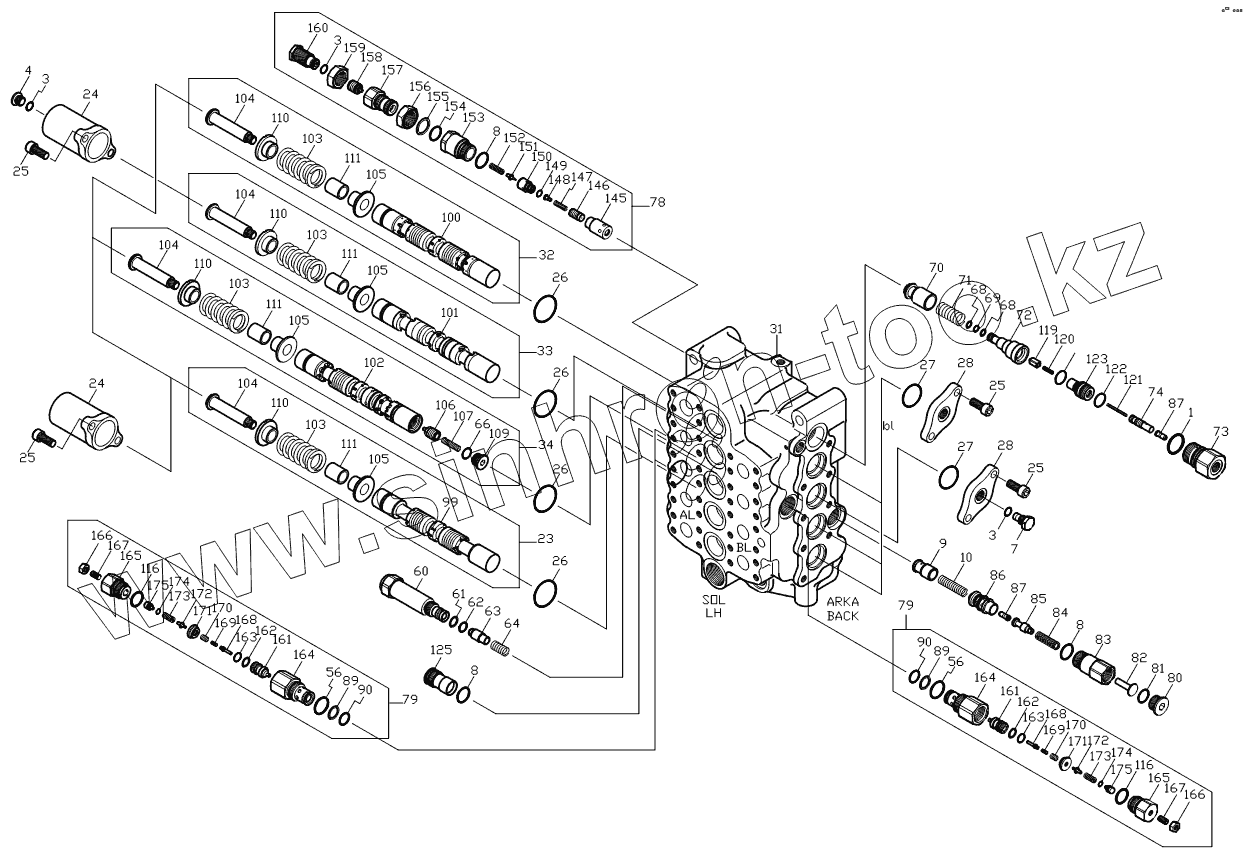

Каталог запасных частей к технике: Hidromek HMK 220LC-2. MCV
1
3
3
3
4
7
8
8
8
9
10
23
24
24
25
25
25
25
26
26
26
26
27
27
28
28
31
32
33
34
56
56
60
61
62
63
64
66
68
68
69
70
71
72
73
74
78
79
79
80
81
82
83
84
85
86
87
87
89
89
90
90
99
100
101
102
103
103
103
103
104
104
104
104
105
105
105
105
106
107
109
110
110
110
110
111
111
111
111
116
116
119
120
121
122
123
125
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
161
162
162
163
163
164
164
165
165
166
166
167
167
168
168
169
169
170
170
171
171
172
172
173
173
174
174
175
175
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H349015001 | O-Ring | |
| 3 | H349015003 | O-Ring | |
| 4 | H349015004 | Cap | |
| 7 | H349015007 | Plug | |
| 8 | H349015008 | O-Ring | |
| 9 | H349015009 | Check | |
| 10 | H349015010 | Spring | |
| 23 | H349015023 | Plunger M1 Ass'y | |
| 24 | H349015024 | Cover | |
| 25 | H349015025 | Hex. Soc. Head Bolt | |
| 26 | H349015026 | O-Ring | |
| 27 | H349015027 | O-Ring | |
| 28 | H349015028 | Retainer | |
| 31 | Housing | Housing | |
| 32 | H349015032 | Plunger T6 Ass'y | |
| 33 | H349015033 | Plunger D Ass'y | |
| 34 | H349015034 | Plunger A8 Ass'y | |
| 56 | H349015056 | O-Ring | |
| 60 | H349015060 | Cover | |
| 61 | H349015061 | Back-Up Ring | |
| 62 | H349015062 | O-Ring | |
| 63 | H349015063 | Check | |
| 64 | H349015064 | Spring | |
| 66 | H349015066 | O-Ring | |
| 68 | H349015068 | Back-Up Ring | |
| 69 | H349015069 | O-Ring | |
| 70 | H349015070 | Poppet | |
| 71 | H349015071 | Spring | |
| 72 | H349015072 | Sleeve | |
| 73 | H349015073 | Cap | |
| 74 | H349015074 | Piston | |
| 78 | H349015078 | Main Relief Ass'y | |
| 79 | H349015079 | Overload Relief Ass'y | |
| 80 | H349015080 | Cap | |
| 81 | H349015081 | O-Ring | |
| 82 | H349015082 | Spring Guide | |
| 83 | H349015083 | Cap | |
| 84 | H349015084 | Spring | |
| 85 | H349015085 | Spool | |
| 86 | H349015086 | Sleeve | |
| 87 | H349015087 | Piston | |
| 89 | H349015089 | Back-Up Ring | |
| 90 | H349015090 | O-Ring | |
| 99 | Plunger | Plunger | |
| 100 | Plunger | Plunger | |
| 101 | Plunger | Plunger | |
| 102 | Plunger | Plunger | |
| 103 | H349015103 | Spring | |
| 104 | H349015104 | Plunger Cap | |
| 105 | H349015105 | Spring Guide | |
| 106 | H349015106 | Check | |
| 107 | H349015107 | Spring | |
| 109 | H349015109 | Cover | |
| 110 | H349015110 | Spring Guide | |
| 111 | H349015111 | Stopper | |
| 116 | H349015116 | O-Ring | |
| 119 | H349015119 | Check | |
| 120 | H349015120 | Spring | |
| 121 | H349015121 | Spring | |
| 122 | H349015122 | O-Ring | |
| 123 | H349015123 | Sleeve | |
| 125 | H349015125 | Cap | |
| 145 | H349015145 | Sleeve | |
| 146 | H349015146 | Main Poppet | |
| 147 | H349015147 | Spring | |
| 148 | H349015148 | Orifice | |
| 149 | H349015149 | O-Ring | |
| 150 | H349015150 | Pilot Seat | |
| 151 | H349015151 | Pilot Poppet | |
| 152 | H349015152 | Spring | |
| 153 | H349015153 | Cap | |
| 154 | H349015154 | O-Ring | |
| 155 | H349015155 | Back-Up Ring | |
| 156 | H349015156 | Lock Nut | |
| 157 | H349015157 | Sleeve | |
| 158 | H349015158 | Piston | |
| 159 | H349015159 | Lock Nut | |
| 160 | H349015160 | Adjust Screw | |
| 161 | H349015161 | Main Poppet | |
| 162 | H349015162 | Back-Up Ring | |
| 163 | H349015163 | O-Ring | |
| 164 | H349015164 | Sleeve | |
| 165 | H349015165 | Cap | |
| 166 | H349015166 | Hex Nut | |
| 167 | H349015167 | Adjust Screw | |
| 168 | H349015168 | Piston | |
| 169 | H349015169 | Spring, Inside | |
| 170 | H349015170 | Spring, Outside | |
| 171 | H349015171 | Pilot Seat | |
| 172 | H349015172 | Pilot Poppet | |
| 173 | H349015173 | Spring | |
| 174 | H349015174 | O-Ring | |
| 175 | H349015175 | Spring Guide |
