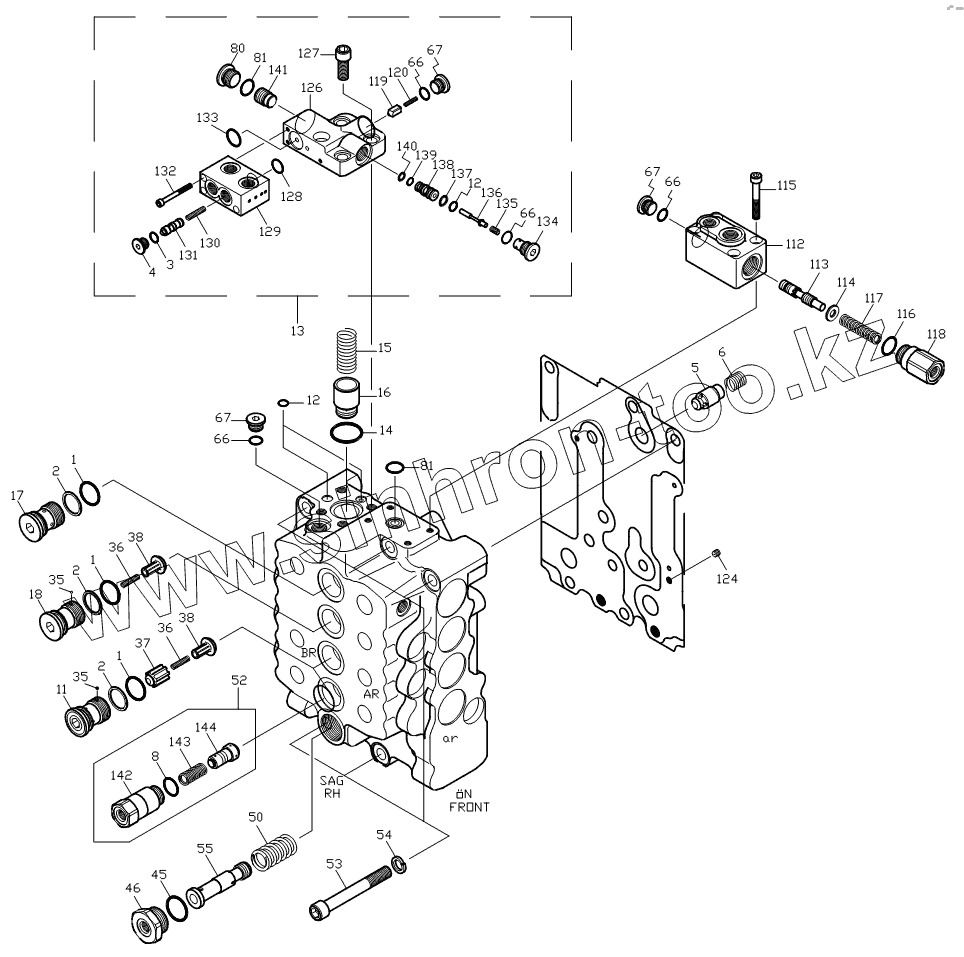

Каталог запасных частей к технике: Hidromek HMK 220LC-2. MCV

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
2
3
4
5
6
8
11
12
12
13
14
15
16
17
18
35
35
36
36
37
38
38
45
46
50
52
53
54
55
66
66
66
66
67
67
67
80
81
81
112
113
114
115
116
117
118
119
120
124
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
Позиция на иллюстрации Заводской номер детали Название детали
1 H349015001 O-Ring
2 H349015002 Back-Up Ring
3 H349015003 O-Ring
4 H349015004 Cap
5 H349015005 Check
6 H349015006 Spring
8 H349015008 O-Ring
11 H349015011 Cap
12 H349015012 O-Ring
13 H349015013 Cover Ass'y
14 H349015014 O-Ring
15 H349015015 Spring
16 H349015016 Poppet
17 H349015017 Cap
18 H349015018 Cap
35 H349015035 Nylon Chip
36 H349015036 Spring
37 H349015037 Check
38 H349015038 Check
45 H349015045 O-Ring
46 H349015046 Cap
50 H349015050 Spring
52 H349015052 Foot Relief Ass'y
53 H349015053 Hex Soc. Head Bolt
54 H349015054 Spring Washer
55 H349015055 Spool
66 H349015066 O-Ring
67 H349015067 Cap
80 H349015080 Cap
81 H349015081 O-Ring
112 H349015112 Manifold
113 H349015113 Spool
114 H349015114 Spring Guide
115 H349015115 Hex Soc. Head Bolt
116 H349015116 O-Ring
117 H349015117 Spring
118 H349015118 Cap
119 H349015119 Check
120 H349015120 Spring
124 H349015124 Orifice
126 H349015126 Cover
127 H349015127 Hex Soc. Head Bolt
128 H349015128 O-Ring
129 H349015129 Manifold
130 H349015130 Spring
131 H349015131 Piston
132 H349015132 Hex Soc. Head Bolt
133 H349015133 O-Ring
134 H349015134 Cap
135 H349015135 Spring
136 H349015136 Poppet
137 H349015137 Back-Up Ring
138 H349015138 Sleeve
139 H349015139 O-Ring
140 H349015140 Back-Up Ring
141 H349015141 Piston
142 H349015142 Cap
143 H349015143 Spring
144 H349015144 Poppet
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
