  5. MAIN PIPING MOUNTING (R/H)

Каталог запасных частей к технике: Hidromek HMK 220LC-2. MAIN PIPING MOUNTING (R/H)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
22
22
23
23
23
23
23
24
24
24
24
24
24
25
26
27
29
30
31
32
32
33
33
33
33
35
35
36
37
38
39
40
41
41
43
43
44
44
46
47
48
49
90
91
92
93
94
95
96

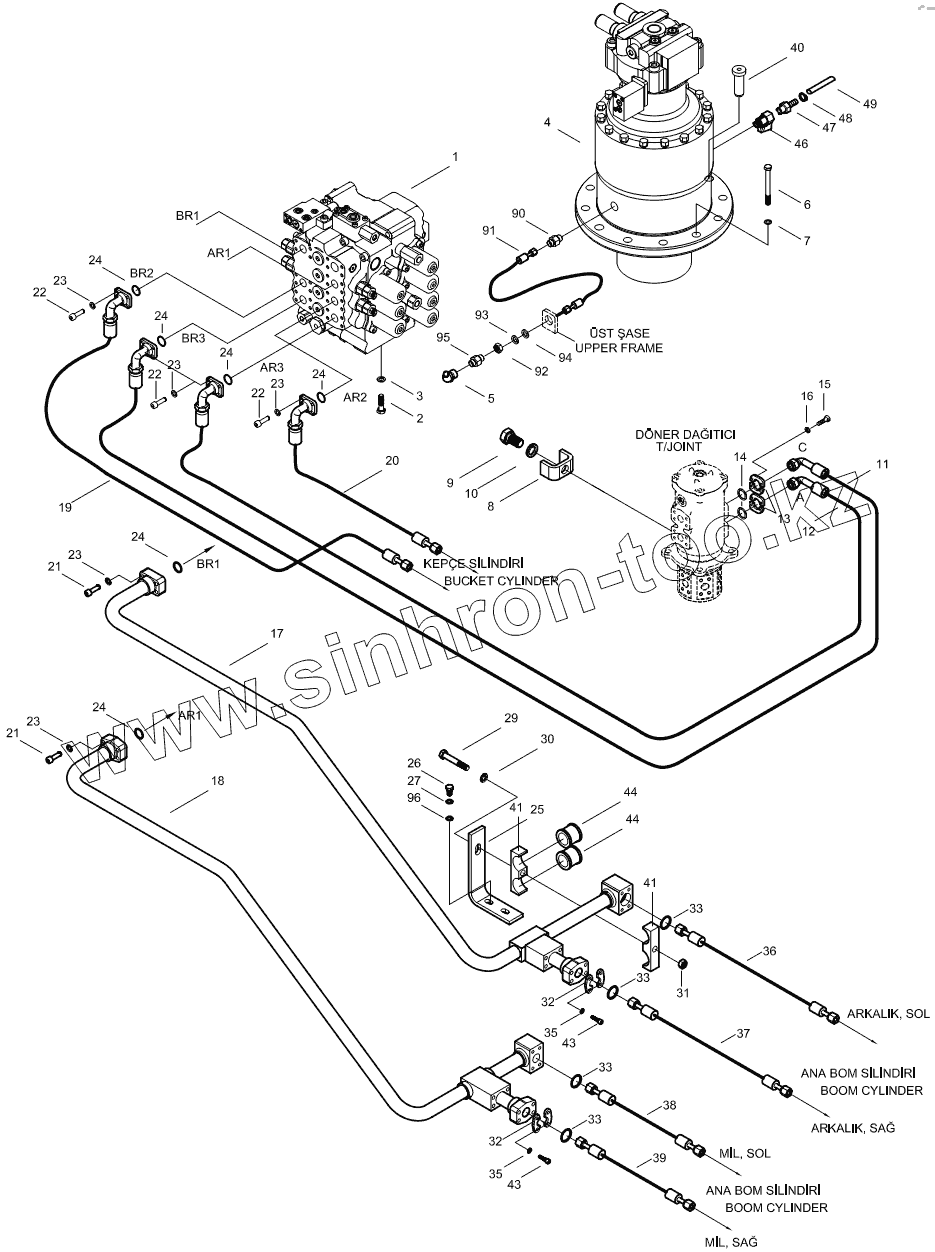

Позиция на иллюстрации Заводской номер детали Название детали
1 H343001801 M.C.V. Ass'y
2 N01/0232858 Bolt, Hex.
3 N03/1310012 Washer, Spr.
4 H343008000 Swing Unit
5 N08/1130000 Grease, Nipple
6 N01/0391766 Bolt, Hex.
7 N03/0800003 Washer, Pln.
8 H343002100 Support
9 N01/0234238 Bolt, Hex.
10 N03/1310016 Washer, Spr.
11 H343008400 Hose Ass'y
12 H343008500 Hose Ass'y
13 N16/J360104 Flange
14 N10/2003335 O-Ring
15 N01/5890830 Bolt, Cyl. Hd.
16 N03/1360010 Washer, Spr.
17 H343002200 Pipe Ass'y
18 H343002300 Pipe Ass'y
19 H343001600 Hose Ass'y
20 H343002400 Hose Ass'y
21 N01/5890830 Bolt, Cyl. Hd.
22 N01/5890830 Bolt, Cyl. Hd.
23 N03/1360010 Washer, Spr.
24 N10/2003335 O-Ring
25 H343002500 Support
26 N01/0232846 Bolt, Hex.
27 N03/1310012 Washer, Spr.
29 N01/0381358 Bolt, Hex.
30 N03/1310014 Washer, Spr.
31 N02/3570314 Nut, Hex.
32 N16/J360104 Flange
33 N10/2003335 O-Ring
35 N03/1360010 Washer, Spr.
36 H343002700 Hose Ass'y
37 H343002800 Hose Ass'y
38 H343002900 Hose Ass'y
39 H343003000 Hose Ass'y
40 H343003100 Pin
41 H343003200 Clamp
43 N01/5890842 Bolt, Cylinder Head
44 H340102500 Rubber
46 S91/70009 Spherical Valve
47 H343008100 Connector
48 N07/4010016 Clamp
49 H343008200 Hose
90 N16/K440301 Connector
91 97N091221 Hose Ass'y
92 N02/3560326 Nut
93 N03/1310014 Washer, Spr.
94 N03/0100027 Washer, Pln.
95 H343011300 Connector
96 N03/0100023 Washer, Pln.
