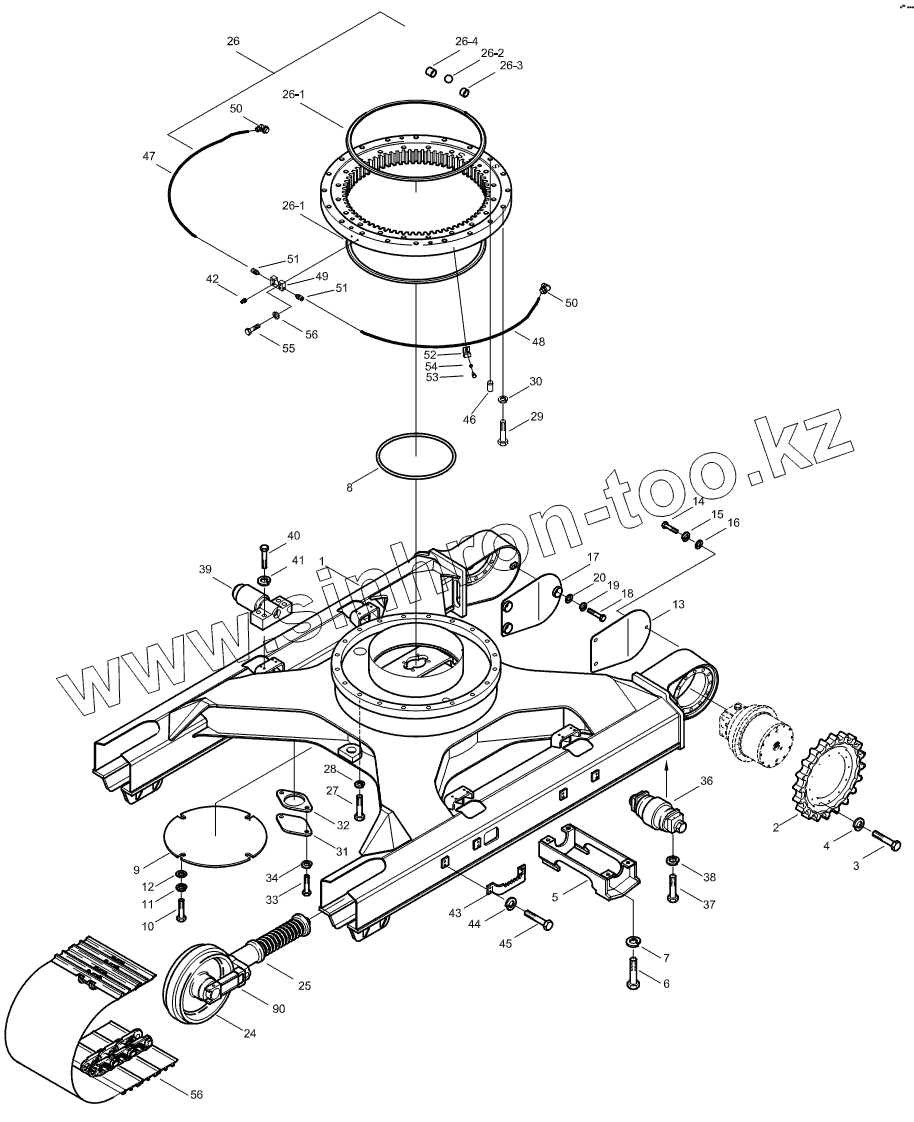

Каталог запасных частей к технике: Hidromek HMK 220LC-2. LOWER FRAME MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
24
25
26
26.1
26.1
26.2
26.3
26.4
27
28
29
31
32
33
34
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
51
52
53
54
55
56
56
90
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H344000100 | Frame W.A., Track | |
| 2 | H344100200 | Sproket | |
| 3 | N01/0391238 | Bolt, Hex. | |
| 4 | N03/1310014 | Washer, Spr. | |
| 5 | H344100300 | Gud, Track | |
| 6 | N01/0381214 | Bolt, Hex. | |
| 7 | N03/1310014 | Washer, Spr. | |
| 8 | H344104900 | Seal, Grease | |
| 9 | H344100700 | Cover, Bottom | |
| 10 | N01/0232846 | Bolt, Hex. | |
| 11 | N03/1310012 | Washer, Spr. | |
| 12 | N03/0100023 | Washer, Pln. | |
| 13 | H344100800 | Cover, Travel Mot., L | |
| 14 | N01/0232846 | Bolt, Hex. | |
| 15 | N03/1310012 | Washer, Spr. | |
| 16 | N03/0100023 | Washer, Pln. | |
| 17 | H344101200 | Cover, Travel Mot., R | |
| 18 | N01/0232846 | Bolt, Hex. | |
| 19 | N03/1310012 | Washer, Spr. | |
| 20 | N03/0100023 | Washer, Pln. | |
| 24 | H344101300 | Idler Ass'y | |
| 25 | H344102900 | Adjuster Ass'y | |
| 26 | H344104801 | Swing Ring Ass'y | |
| 26.1 | H349031011 | Seal, Swing Ring | |
| 26.2 | H349031012 | Ball, Swing Ring | |
| 26.3 | H349031014 | Support A, Swing R. | |
| 26.4 | H349031015 | Support B, Swing R. | |
| 27 | N01/0682018 | Bolt, Hex. | |
| 28 | N03/1310016 | Washer, Spr. | |
| 29 | N01/0391872 | Bolt, Hex. | |
| 31 | H341201500 | Cover | |
| 32 | H341201600 | Gasket | |
| 33 | N01/0232462 | Bolt, Hex. | |
| 34 | N03/1310011 | Washer, Spr. | |
| 36 | H344105100 | Roller, Lower | |
| 37 | N01/0381310 | Bolt, Hex. | |
| 38 | N03/1310014 | Washer, Spr. | |
| 39 | H344105900 | Roller,Upper | |
| 40 | N01/0381214 | Bolt, Hex. | |
| 41 | N03/1310014 | Washer, Spr. | |
| 42 | N08/1110000 | Grease, Nipple | |
| 43 | H344101002 | Step | |
| 44 | N01/0233566 | Bolt, Hex. | |
| 45 | N03/1310014 | Washer, Spr. | |
| 46 | H344107300 | Pin, Swing Ring | |
| 47 | H344107400 | Pipe, Grease | |
| 48 | H344107500 | Pipe, Grease | |
| 49 | H344107600 | Block | |
| 50 | H345801100 | Elbow | |
| 51 | H345800700 | Connector | |
| 52 | N07/7010908 | Clamp | |
| 53 | N01/0222078 | Bolt, Hex. | |
| 54 | N03/1310010 | Washer, Spr. | |
| 55 | N01/0370374 | Bolt, Hex. | |
| 56 | H344200100 | Track Ass'y | |
| 90 | H344102800 | Yoke |
