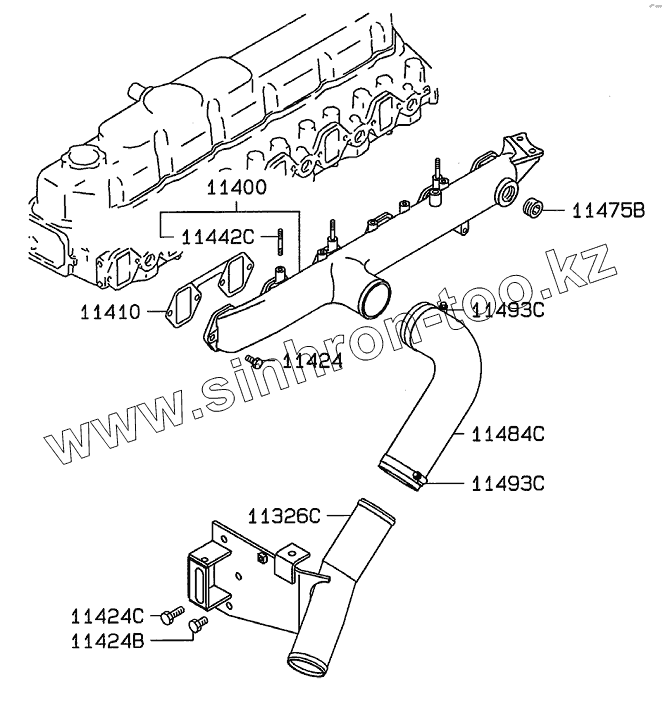

Каталог запасных частей к технике: Hidromek HMK 220LC-2. INLET MANIFOLD

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано BREAKER PIPING MOUNTING QUICK COUPLING ASSEMBLY QUICK COUPLING MOUNTING QUICK COUPLING CYLINDER BREAKER MOUNTING DOUBLE ACTING PIPING DOUBLE ACTING VALVE BOOM SAFETY LOCK SYSTEM ARM SAFETY LOCK SYSTEM OVERLOAD WARNING SYSTEM DITCH CLEANING BUCKET MOUNTING TRAPEZOIDAL BUCKET MOUNTING BEACON MOUNTING REAR WORK LAMP MOUNTING FRONT WORK LAMP MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING UPPER FRAME MOUNTING ACCUMULATOR BOX MOUNTING ANTI-SLIP WALKWAY ENGINE MOUNTING SHORT ENGINE ASSEMBLY SERVICE CYLINDER HEAD ASSEMBLY SERVICE CYLINDER BLOCK ASSEMBLY LINER AND PISTON KIT SERVICE CRANKSHAFT ASSEMBLY ENGINE OVERHAUL GASKET KIT ROCKER COVER AND BREATHER CYLINDER HEAD CYLINDER BLOCK OIL PAN - FILLER - GAUGE FLYWHEEL AND HOUSING PISTON - CONNROD - CRANKSHAFT CAMSHAFT - VALVE TIMING GEAR ATTACHING PARTS OIL PUMP AND STRAINER OIL FILTER OIL COOLER OIL LINE FUEL LINE AND WATER SEPARATOR FUEL FILTER AND HOSE FUEL INJECTION PUMP GENERAL INJECTION PUMP GOVERNOR GOVERNOR AUTOMATIC TIMER FUEL FEED PUMP INJECTION PIPE AND NOZZLE FUEL RETURN HOSE WATER PUMP AND FAN MOUNTING WATER PIPE AND THERMOSTAT INLET MANIFOLD EXHAUST MANIFOLD TURBOCHARGER STARTER ALTERNATOR AND REGULATOR PLATE AND LABEL CHASSIS HARNESS EQUIPMENT COUPLING ASSEMBLY AIR INTAKE MOUNTING EXHAUST MOUNTING COOLING SYSTEM COOLING SYSTEM RADIATOR RADIATOR FUEL TANK MOUNTING AND FUEL LINE ENGINE CONTROL MOUNTING AIRCONDITION MOUNTING HEATER MOUNTING MAIN PIPING MOUNTING (L/H) MAIN PIPING MOUNTING (R/H) MAIN PIPING MOUNTING (R/H) HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP REGULATOR MCV MCV MCV MCV HYDRAULIC OIL MOTOR - SWING UNIT REDUCTION GEAR - SWING GEAR LOWER PIPING MOUNTING TRAVEL MOTOR TRAVEL MOTOR TURNING JOINT PILOT PIPING MOUNTING 1 PILOT PIPING MOUNTING 1 PILOT PIPING MOUNTING 2 PILOT PIPING MOUNTING 2 PILOT PIPING MOUNTING 3 REMOTE CONTROL VALVE (R/L) PEDAL ATTACHMENT PIPING BOOM CYLINDER (R/L) BUCKET CYLINDER ARM CYLINDER HYDRAULIC TANK MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING LOWER FRAME MOUNTING UPPER ROLLER LOWER ROLLER IDLER ASSEMBLY AND YOKE ADJUSTER ASSEMBLY TRACK CHAIN ASSEMBLY BOOM MOUNTING ARM MOUNTING WORKING ATTACHMENT CONTROL GENERAL PURPOSE BUCKET HEAVY DUTY BUCKET LUBRICATION PIPING MOUNTING CAB MOUNTING CAB CAB CAB CONSOLE BOX (R/H) CONSOLE BOX (L/H) CAB INTERIROR MOUNTING CAB INTERIOR MOUNTING DECAL MOUNTING (TURKISH) DECAL MOUNTING (ENGLISH) ELECTRIC ELECTRIC ELECTRIC MAIN HARNESS ENGINE HARNESS CAB MAIN HARNESS

11326C

11400

11410

11424

11424B

11424C

11442C

11475B

11484C

11493C

11493C

Позиция на иллюстрации	Заводской номер детали		Название детали
11326C	H349003639		Pipe, Air Intake
11400	H349003640		Manifold, Inlet
11410	H349003641		Gasket, In. Manifold
11424	H349003172		Bolt
11424B	H349003171		Bolt
11424C	H349003266		Bolt
11442C	H349003645		Stud, Inlet Manifold
11475B	H349003646		Plug, Inlet Manifold
11484C	H349003647		Hose, Inlet Manifold
11493C	H349003648		Clamp, Inlet Mnf.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
