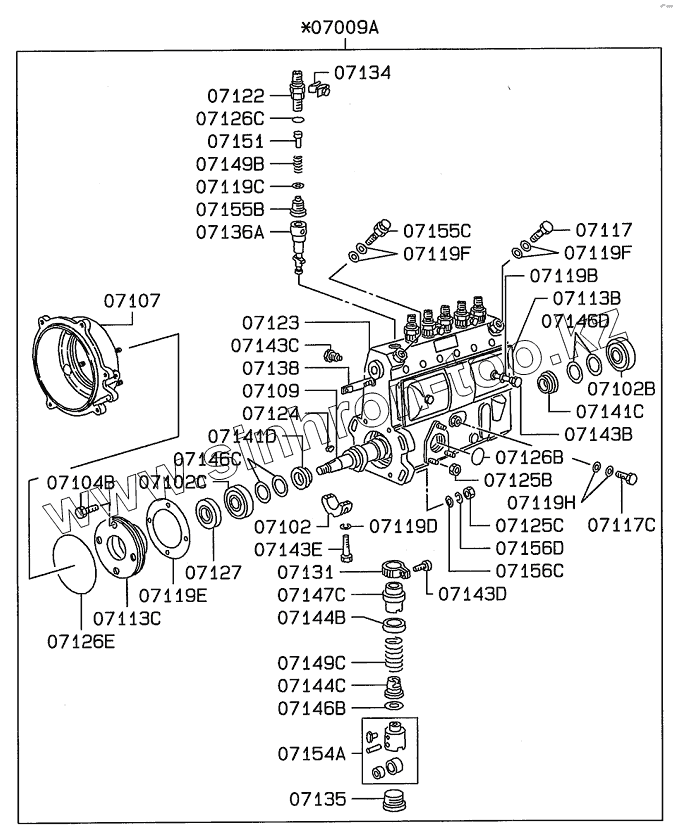

Каталог запасных частей к технике: Hidromek HMK 220LC-2. INJECTION PUMP
07102
07102B
07102C
07104B
07107
07109
07113B
07113C
07117
07117C
07119B
07119B
07119C
07119D
07119E
07119F
07119F
07119H
07122
07123
07124
07125B
07125C
07126B
07126C
07126E
07127
07131
07134
07135
07136A
07138
07141C
07141D
07143B
07143C
07143D
07143E
07144B
07144C
07146B
07146C
07146D
07147C
07149B
07149C
07151
07154A
07155B
07155C
07156C
07156D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07009А | Pump | Body Ass'y, Inj. Pump | |
| 07102 | H349003286 | Being, Inj. Pump | |
| 07102B | H349003287 | Being, Inj. Pump | |
| 07102B | H349003288 | Being, Inj. Pump | |
| 07102C | H349003289 | Being, Inj. Pump | |
| 07102C | H349003290 | Being, Inj. Pump | |
| 07104B | H349003291 | Bolt, Inj. Pump | |
| 07107 | H349003292 | Bracket, Inj. P. Body | |
| 07109 | H349003293 | Camshaft, Inj. P. Body | |
| 07113B | H349003294 | Cover, Inj. Pump Body | |
| 07113C | H349003295 | Cover, Inj. Pump Body | |
| 07117 | H349003296 | Eyebolt | |
| 07117C | H349003297 | Eyebolt, Inj. Pump | |
| 07119B | H349003298 | Gasket, Inj. Pump | |
| 07119C | H349003299 | Gasket, Inj. Pump | |
| 07119D | H349003300 | Gasket, Inj. Pump | |
| 07119E | H349003301 | Gasket, Inj. Pump | |
| 07119F | H349003302 | Gasket | |
| 07119H | H349003303 | Gasket, Inj. Pump | |
| 07122 | H349003304 | Holder, Inj. Pump Bdy. | |
| 07123 | H349003305 | Housing, Inj. P. Body | |
| 07124 | H349003306 | Key, Inj. Pump Body | |
| 07125B | H349003307 | Nut, Inj Pump Body | |
| 07125C | H349003308 | Nut, Inj Pump Body | |
| 07126B | H349003309 | O-Ring, Inj. Pump B. | |
| 07126C | H349003310 | O-Ring, Inj. Pump B. | |
| 07126E | H349003311 | O-Ring, Inj. Pump B. | |
| 07127 | H349003312 | Oil Seal, Inj. Pump B. | |
| 07131 | H349003313 | Pinion, Inj. Pump B. | |
| 07134 | H349003314 | Plate, Inj. Pump B. | |
| 07135 | H349003315 | Plug, Inj. Pump B. | |
| 07136A | H349003316 | Plunger Ass'y | |
| 07138 | H349003317 | Rack, Inj. Pump Body | |
| 07141C | H349003318 | Ring, Inj. Pump Body | |
| 07141D | H349003319 | Ring, Inj. Pump Body | |
| 07143B | H349003320 | Screw, Inj. Pump B. | |
| 07143C | H349003321 | Screw, Inj. Pump B. | |
| 07143D | H349003322 | Screw, Inj. Pump B. | |
| 07143E | H349003323 | Screw, Inj. Pump B. | |
| 07144B | H349003324 | Seat, Inj. Pump Body | |
| 07144C | H349003325 | Seat, Inj. Pump Body | |
| 07146B | H349003326 | Shim, Inj. Pump Body | |
| 07146B | H349003327 | Shim, Inj. Pump Body | |
| 07146B | H349003328 | Shim, Inj. Pump Body | |
| 07146B | H349003329 | Shim, Inj. Pump Body | |
| 07146B | H349003330 | Shim, Inj. Pump Body | |
| 07146B | H349003331 | Shim, Inj. Pump Body | |
| 07146B | H349003332 | Shim, Inj. Pump Body | |
| 07146B | H349003333 | Shim, Inj. Pump Body | |
| 07146B | H349003334 | Shim, Inj. Pump Body | |
| 07146B | H349003335 | Shim, Inj. Pump Body | |
| 07146B | H349003336 | Shim, Inj. Pump Body | |
| 07146B | H349003337 | Shim, Inj. Pump Body | |
| 07146B | H349003338 | Shim, Inj. Pump Body | |
| 07146B | H349003339 | Shim, Inj. Pump Body | |
| 07146B | H349003340 | Shim, Inj. Pump Body | |
| 07146B | H349003341 | Shim, Inj. Pump Body | |
| 07146B | H349003342 | Shim, Inj. Pump Body | |
| 07146B | H349003343 | Shim, Inj. Pump Body | |
| 07146B | H349003344 | Shim, Inj. Pump Body | |
| 07146B | H349003345 | Shim, Inj. Pump Body | |
| 07146B | H349003346 | Shim, Inj. Pump Body | |
| 07146B | H349003347 | Shim, Inj. Pump Body | |
| 07146B | H349003348 | Shim, Inj. Pump Body | |
| 07146B | H349003349 | Shim, Inj. Pump Body | |
| 07146B | H349003350 | Shim, Inj. Pump Body | |
| 07146B | H349003351 | Shim, Inj. Pump Body | |
| 07146B | H349003352 | Shim, Inj. Pump Body | |
| 07146B | H349003353 | Shim, Inj. Pump Body | |
| 07146B | H349003354 | Shim, Inj. Pump Body | |
| 07146C | H349003355 | Shim, Inj. Pump Body | |
| 07146C | H349003356 | Shim, Inj. Pump Body | |
| 07146C | H349003357 | Shim, Inj. Pump Body | |
| 07146C | H349003358 | Shim, Inj. Pump Body | |
| 07146C | H349003359 | Shim, Inj. Pump Body | |
| 07146C | H349003360 | Shim, Inj. Pump Body | |
| 07146C | H349003361 | Shim, Inj. Pump Body | |
| 07146C | H349003362 | Shim, Inj. Pump Body | |
| 07146C | H349003363 | Shim, Inj. Pump Body | |
| 07146D | H349003364 | Shim, Inj. Pump Body | |
| 07146D | H349003365 | Shim, Inj. Pump Body | |
| 07146D | H349003366 | Shim, Inj. Pump Body | |
| 07146D | H349003367 | Shim, Inj. Pump Body | |
| 07146D | H349003368 | Shim, Inj. Pump Body | |
| 07146D | H349003369 | Shim, Inj. Pump Body | |
| 07146D | H349003370 | Shim, Inj. Pump Body | |
| 07146D | H349003371 | Shim, Inj. Pump Body | |
| 07146D | H349003372 | Shim, Inj. Pump Body | |
| 07146D | H349003373 | Shim, Inj. Pump Body | |
| 07146D | H349003374 | Shim, Inj. Pump Body | |
| 07147C | H349003375 | Sleeve, Inj. Pump. B. | |
| 07149B | H349003376 | Spring, Inj. Pump B. | |
| 07149C | H349003377 | Spring, Inj. Pump B. | |
| 07151 | H349003378 | Stopper, Inj. P. Body | |
| 07154A | H349003379 | Tappet Ass'y, Inj. P.B. | |
| 07155B | H349003380 | Subap, Inj. Pump | |
| 07155C | H349003381 | Subap, Inj. Pump | |
| 07156C | H349003382 | Washer, Inj. Pump | |
| 07156D | H349003383 | Washer, Inj. Pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
