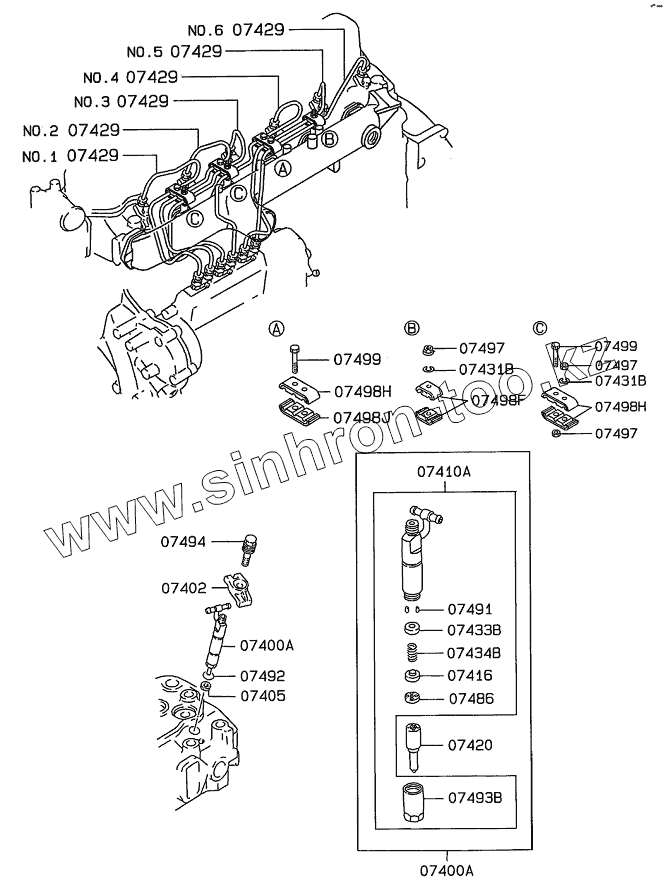

Каталог запасных частей к технике: Hidromek HMK 220LC-2. INJECTION PIPE AND NOZZLE
07400A
07400A
07402
07405
07410A
07416
07420
07429
07429
07429
07429
07429
07429
07429
07429
07429
07429
07429
07431B
07431B
07433B
07434B
07486
07491
07492
07493B
07494
07497
07497
07497
07497
07498F
07498H
07498H
07498J
07499
07499
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07400A | H349003555 | Nozzle&Holder Ass'y | |
| 07402 | H349003556 | Bridge, Nozzle | |
| 07405 | H349003557 | Gasket, Nozzle | |
| 07410A | H349003558 | Holder Ass'y, Nozzle | |
| 07416 | H349003559 | Seat, Holder | |
| 07420 | H349003560 | Nozzle, Fuel Inj. | |
| 07429 | H349003561 | Tube, Fuel Injection | |
| 07429 | H349003562 | Tube, Fuel Injection | |
| 07429 | H349003563 | Tube, Fuel Injection | |
| 07429 | H349003564 | Tube, Fuel Injection | |
| 07429 | H349003565 | Tube, Fuel Injection | |
| 07429 | H349003566 | Tube, Fuel Injection | |
| 07431B | H349003567 | Washer, Fuel Inj. Tube | |
| 07433B | H349003568 | Shim, Inj. Nozzle | |
| 07433B | H349003569 | Shim, Inj. Nozzle | |
| 07433B | H349003570 | Shim, Inj. Nozzle | |
| 07433B | H349003571 | Shim, Inj. Nozzle | |
| 07433B | H349003572 | Shim, Inj. Nozzle | |
| 07433B | H349003573 | Shim, Inj. Nozzle | |
| 07433B | H349003574 | Shim, Inj. Nozzle | |
| 07433B | H349003575 | Shim, Inj. Nozzle | |
| 07433B | H349003576 | Shim, Inj. Nozzle | |
| 07433B | H349003577 | Shim, Inj. Nozzle | |
| 07433B | H349003578 | Shim, Inj. Nozzle | |
| 07433B | H349003579 | Shim, Inj. Nozzle | |
| 07433B | H349003580 | Shim, Inj. Nozzle | |
| 07433B | H349003581 | Shim, Inj. Nozzle | |
| 07434B | H349003582 | Spring, Nozzle Holder | |
| 07486 | H349003583 | Spacer, Nozzle | |
| 07491 | H349003584 | Pin, Nozzle | |
| 07492 | H349003585 | O-Ring, Nozzle | |
| 07493B | H349003586 | Nut, Nozzle | |
| 07494 | H349003587 | Bolt, Nozzle | |
| 07497 | H349003588 | Nut, Fuel Inj. Tube | |
| 07497 | H349003589 | Nut, Fuel Inj. Tube | |
| 07498F | H349003590 | Clamp, Fuel Inj. Tube | |
| 07498H | H349003591 | Clamp, Fuel Inj. Tube | |
| 07498J | H349003592 | Clamp, Fuel Inj. Tube | |
| 07499 | H349003593 | Nut, Fuel Inj. Tube |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
