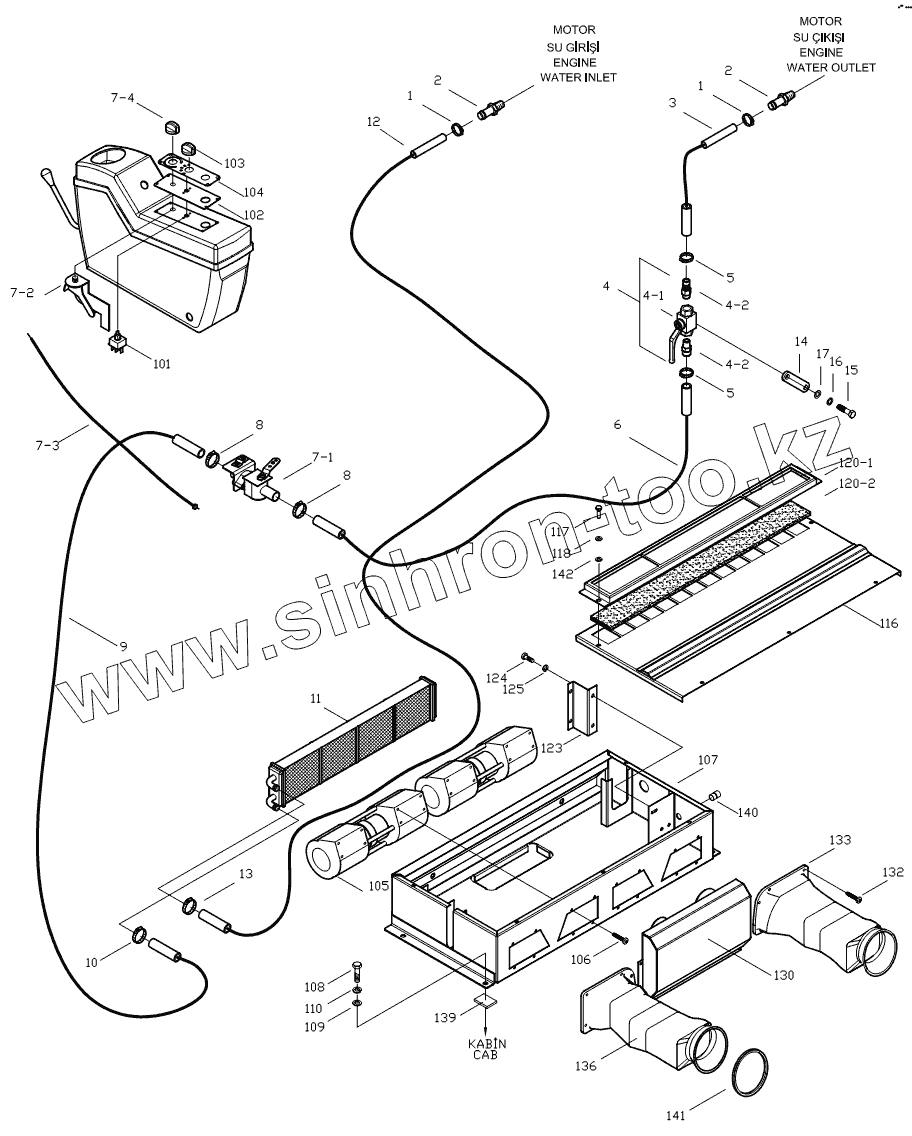

Каталог запасных частей к технике: Hidromek HMK 220LC-2. HEATER MOUNTING
1
1
2
2
3
4
4.1
4.2
4.2
5
5
6
7.1
7.2
7.3
7.4
8
8
9
10
11
12
13
14
15
16
17
101
102
102
103
104
104
105
106
107
108
109
110
116
116
117
118
120.1
120.1
120.2
120.2
123
124
125
130
132
133
136
139
140
141
142
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | N07/4016027 | Clamp | |
| 2 | H342735200 | Connector | |
| 3 | H342735300 | Hose, Heater A1 | |
| 4 | H342735100 | Valve Mounting | |
| 4.1 | N14/0010650 | Cock Valve | |
| 4.2 | H342711200 | Connector | |
| 5 | N07/4016027 | Clamp | |
| 6 | H342735400 | Hose, Heater A2 | |
| 7 | H342711301 | Valve Ass'y | |
| 7.1 | H342711401 | Valve | |
| 7.2 | H342711601 | Switch | |
| 7.3 | H342711500 | Wire | |
| 7.4 | H342711802 | Handle | |
| 8 | N07/4016027 | Clamp | |
| 9 | H342735500 | Hose, Heater A3 | |
| 10 | N07/4016027 | Clamp | |
| 11 | H342710200 | Heater | |
| 12 | H342735600 | Hose, Heater B | |
| 13 | N07/4016027 | Clamp | |
| 14 | H342735700 | Bracket, Valve | |
| 15 | N01/0380434 | Bolt, Hex. | |
| 16 | N03/1310010 | Washer, Spr. | |
| 17 | N03/0100017 | Washer, Pln. | |
| 101 | 554/01000 | Aircon Fan Switch | |
| 102 | H342720302 | Plate | |
| 102 | H342720303 | Plate | |
| 103 | H342711802 | Handle | |
| 104 | H342723700 | Decal | |
| 104 | H342723701 | Decal | |
| 105 | H342720500 | Fan | |
| 106 | N04/1150338 | Bolt | |
| 107 | H342720602 | Aircon Heater Box | |
| 108 | N01/0232114 | Bolt, Hex. | |
| 109 | N03/0100017 | Washer, Pln. | |
| 110 | N03/1310010 | Washer, Spr. | |
| 116 | H342722502 | Cover, W.A. | |
| 116 | H342722503 | Cover, W.A. | |
| 117 | N01/0221514 | Bolt, Hex. | |
| 118 | N03/0100013 | Washer, Pln. | |
| 120 | H342727300 | Polen Filter Ass'y | |
| 120 | H342727301 | Polen Filter Ass'y | |
| 120.1 | H342727400 | Plate, Filter | |
| 120.1 | H342727401 | Plate, Filter | |
| 120.2 | H342727500 | Filter, Polen | |
| 120.2 | H342727501 | Filter, Polen | |
| 123 | H342723501 | Plate W.A., Evap. | |
| 124 | N01/0221478 | Bolt, Hex. | |
| 125 | N03/1310008 | Washer, Spr. | |
| 130 | H342726001 | Cover, W.A., Middle | |
| 132 | N04/1150349 | Bolt | |
| 133 | H342726901 | Cover, W.A., R/H | |
| 136 | H342726501 | Cover, W.A., L/H | |
| 139 | H342727600 | Rubber | |
| 140 | 810/40005 | Rubber | |
| 141 | 98Z030010 | Weather Strip | |
| 142 | N03/0020004 | Washer, Pln. |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
