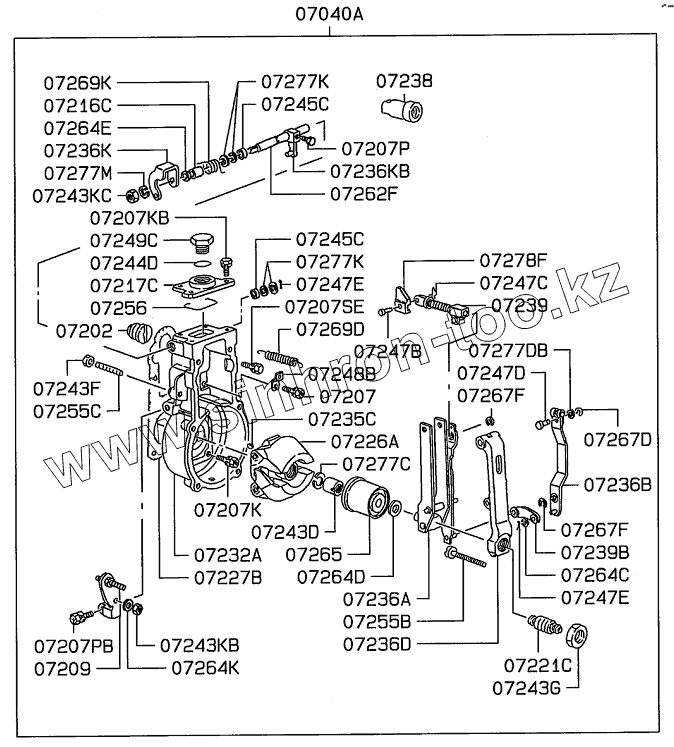

Каталог запасных частей к технике: Hidromek HMK 220LC-2. GOVERNOR
07040A
07202
07207
07207K
07207KB
07207P
07207PB
07207SE
07209
07216C
07217C
07221C
07226A
07227B
07232A
07235C
07236A
07236B
07236D
07236K
07236KB
07238
07239
07239B
07243D
07243G
07243KB
07243KC
07244D
07245C
07245C
07247B
07247C
07247D
07247E
07247E
07248B
07249C
07255B
07255C
07256
07262F
07264C
07264D
07264E
07264E
07264K
07265
07267D
07267F
07267F
07269D
07269K
07277C
07277DB
07277K
07277K
07277K
07277K
07277M
07278F
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07040A | H349003278 | Governor, Pump | |
| 07202 | H349003439 | Adapter, Governor | |
| 07207 | H349003440 | Bolt, Governor | |
| 07207K | H349003441 | Bolt, Governor | |
| 07207KB | H349003385 | Bolt, Governor | |
| 07207P | H349003443 | Bolt, Governor | |
| 07207PB | H349003444 | Bolt, Governor | |
| 07207SE | H349003445 | Bolt, Governor | |
| 07209 | H349003446 | Bracket, Governor | |
| 07216C | H349003447 | Coll, Governor | |
| 07217C | H349003448 | Cover, Governor | |
| 07221C | H349003449 | Damper, Governor | |
| 07226A | H349003450 | Flyweight, Governor | |
| 07227B | H349003451 | Gasket, Governor | |
| 07232A | H349003452 | Housing Ass'y, Gov. | |
| 07235C | H349003453 | Key, Governor | |
| 07236A | H349003454 | Lever Ass'y, Gov. | |
| 07236B | H349003455 | Lever Ass'y, Gov. | |
| 07236D | H349003456 | Lever Ass'y, Gov. | |
| 07236K | H349003457 | Lever Ass'y, Gov. | |
| 07236KB | H349003458 | Lever Ass'y, Gov. | |
| 07238 | H349003459 | Limiter, Governor | |
| 07239 | H349003460 | Link, Governor | |
| 07239B | H349003461 | Link, Governor | |
| 07243D | H349003462 | Nut, Governor | |
| 07243G | H349003463 | Nut, Governor | |
| 07243KB | H349003464 | Nut, Governor | |
| 07243KC | H349003465 | Nut, Governor | |
| 07244D | H349003466 | O-Ring, Governor | |
| 07245C | H349003422 | Oil Seal, Governor | |
| 07247B | H349003468 | Pin, Governor | |
| 07247C | H349003469 | Pin, Governor | |
| 07247D | H349003470 | Pin, Governor | |
| 07247E | H349003471 | Pin, Governor | |
| 07248B | H349003423 | Plate, Governor | |
| 07249C | H349003473 | Plug, Governor | |
| 07255B | H349003474 | Screw, Governor | |
| 07255C | H349003475 | Screw, Governor | |
| 07256 | H349003476 | Seal Ring, Governor | |
| 07262F | H349003477 | Shaft, Governor | |
| 07264C | H349003478 | Shim, Governor | |
| 07264D | H349003479 | Shim, Governor | |
| 07264D | H349003480 | Shim, Governor | |
| 07264D | H349003481 | Shim, Governor | |
| 07264D | H349003482 | Shim, Governor | |
| 07264D | H349003483 | Shim, Governor | |
| 07264D | H349003484 | Shim, Governor | |
| 07264D | H349003485 | Shim, Governor | |
| 07264D | H349003486 | Shim, Governor | |
| 07264D | H349003487 | Shim, Governor | |
| 07264E | H349003488 | Shim, Governor | |
| 07264E | H349003489 | Washer, Governor | |
| 07264K | H349003490 | Shim, Governor | |
| 07264S | H349003429 | Shim, Governor | |
| 07264S | H349003430 | Shim, Governor | |
| 07265 | H349003493 | Sleeve, Governor | |
| 07267D | H349003494 | Snap Ring, Governor | |
| 07267F | H349003495 | Snap Ring, Governor | |
| 07269D | H349003496 | Spring, Governor | |
| 07269K | H349003497 | Spring, Governor | |
| 07277C | H349003498 | Washer, Governor | |
| 07277DB | H349003499 | Washer, Governor | |
| 07277K | H349003489 | Washer, Governor | |
| 07277K | H349003501 | Washer, Governor | |
| 07277K | H349003502 | Washer, Governor | |
| 07277M | H349003503 | Washer, Governor | |
| 07278F | H349003504 | Connector, Governor |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
