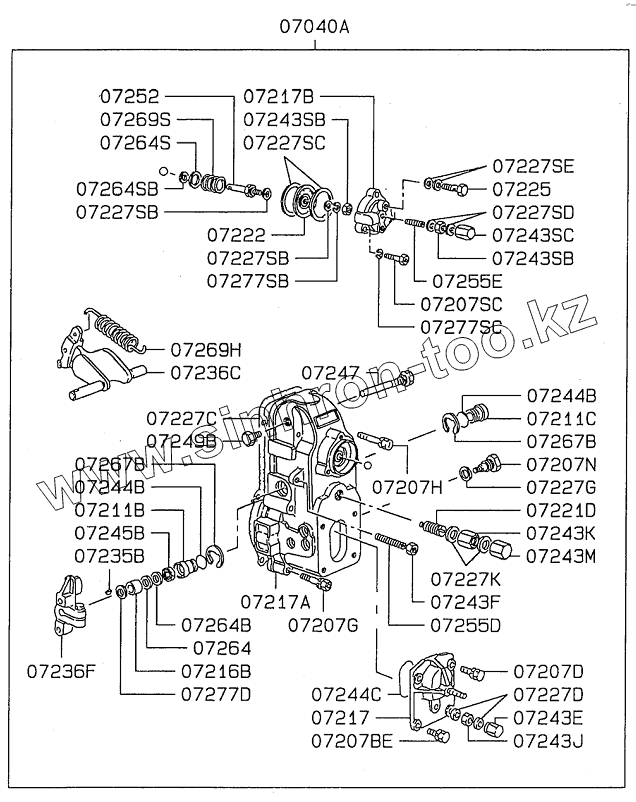

Каталог запасных частей к технике: Hidromek HMK 220LC-2. GOVERNOR
07040A
07207BE
07207D
07207G
07207H
07207N
07207SC
07221B
07211C
07216B
07217
07217A
07217B
07221D
07222
07225
07227C
07227D
07227G
07227K
07227SB
07227SB
07227SC
07227SD
07227SE
07235B
07236C
07236F
07243E
07243F
07243F
07243J
07243K
07243M
07243SB
07243SB
07243SC
072444B
072444B
07244C
07245B
07247
07249B
07252
07255D
07255E
07264
07264B
07264S
07264S
07264SB
07267B
07267B
07269H
07269S
07277D
07277SB
07277SC
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07040A | H349003278 | Governor, Pump | |
| 07207BE | H349003385 | Bolt, Governor | |
| 07207D | H349003386 | Bolt, Governor | |
| 07207G | H349003387 | Bolt, Governor | |
| 07207H | H349003388 | Bolt, Governor | |
| 07207N | H349003389 | Bolt, Governor | |
| 07207SC | H349003390 | Bolt, Governor | |
| 07221B | H349003391 | Bushing, Governor | |
| 07211C | H349003392 | Bushing, Governor | |
| 07216B | H349003393 | Coll, Governor | |
| 07217 | H349003394 | Cover, Governor | |
| 07217A | H349003395 | Cover, Governor | |
| 07217B | H349003396 | Cover, Governor | |
| 07221D | H349003397 | Damper, Governor | |
| 07222 | H349003398 | Diaphragm, Governor | |
| 07225 | H349003399 | Eyebolt, Governor | |
| 07227C | H349003400 | Gasket, Governor | |
| 07227D | H349003401 | Gasket, Governor | |
| 07227G | H349003402 | Gasket, Governor | |
| 07227K | H349003403 | Gasket, Governor | |
| 07227SB | H349003404 | Gasket, Governor | |
| 07227SC | H349003405 | Gasket, Governor | |
| 07227SD | H349003406 | Gasket, Governor | |
| 07227SE | H349003407 | Gasket, Governor | |
| 07235B | H349003408 | Key, Governor | |
| 07236C | H349003409 | Lever, Governor | |
| 07236F | H349003410 | Lever, Governor | |
| 07243E | H349003411 | Nut, Governor | |
| 07243F | H349003412 | Nut, Governor | |
| 07243F | H349003413 | Nut, Governor | |
| 07243J | H349003414 | Nut, Governor | |
| 07243K | H349003415 | Nut, Governor | |
| 07243M | H349003416 | Nut, Governor | |
| 07243SB | H349003417 | Nut, Governor | |
| 07243SC | H349003418 | Nut, Governor | |
| 072444B | H349003419 | O-Ring, Governor | |
| 07244C | H349003420 | O-Ring, Governor | |
| 07245B | H349003421 | Oil Seal, Governor | |
| 07247 | H349003422 | Oil Seal, Governor | |
| 07249B | H349003423 | Plate, Governor | |
| 07252 | H349003424 | Push Rod, Governor | |
| 07255D | H349003425 | Screw, Governor | |
| 07255E | H349003426 | Screw, Governor | |
| 07264 | H349003427 | Shim, Governor | |
| 07264B | H349003428 | Shim, Governor | |
| 07264S | H349003429 | Shim, Governor | |
| 07264S | H349003430 | Shim, Governor | |
| 07264SB | H349003431 | Shim, Governor | |
| 07267B | H349003432 | Snap Ring, Governor | |
| 07269H | H349003433 | Spring, Governor | |
| 07269S | H349003434 | Spring, Governor | |
| 07277D | H349003435 | Washer, Governor | |
| 07277SB | H349003436 | Washer, Governor | |
| 07277SC | H349003437 | Washer, Governor |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
