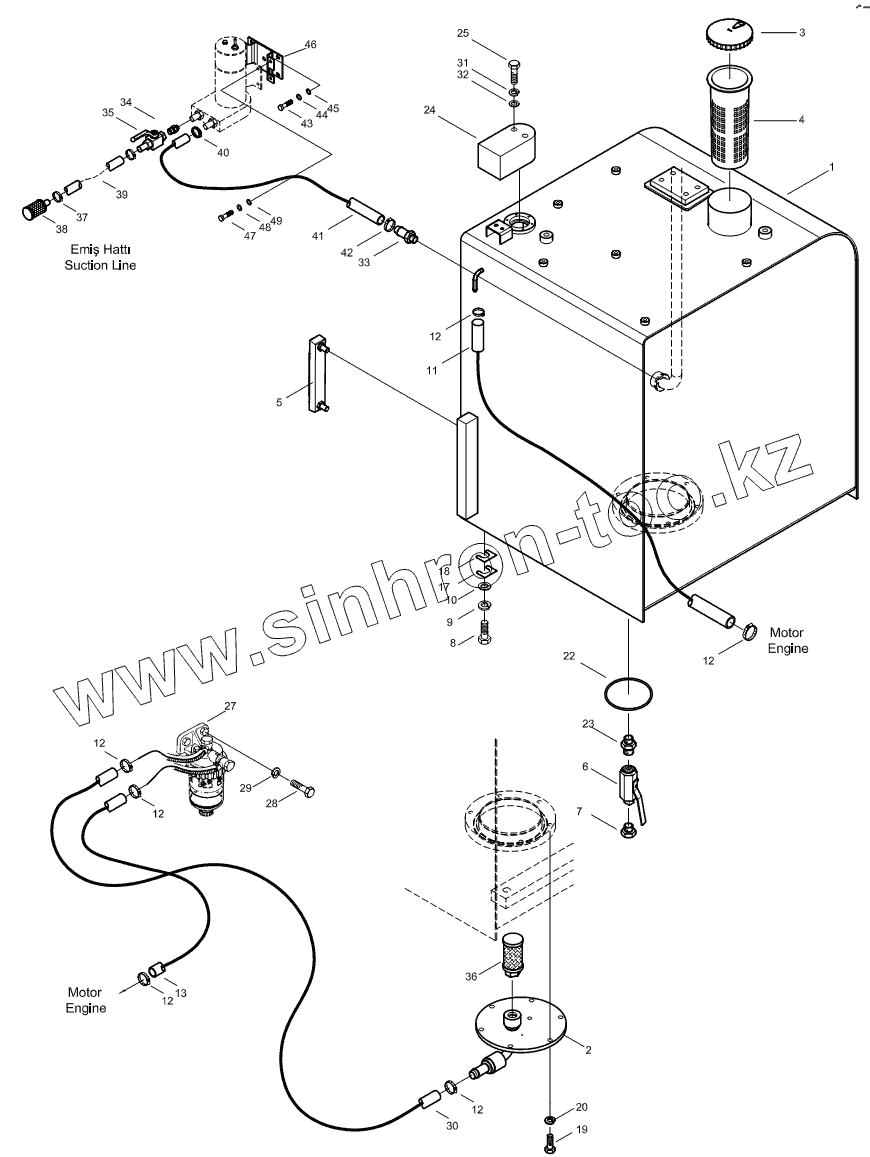

Каталог запасных частей к технике: Hidromek HMK 220LC-2. FUEL TANK MOUNTING AND FUEL LINE
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
12
13
17
18
19
20
22
23
24
25
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H342510100 | Tank W.A., Fuel | |
| 2 | H342512600 | Cover, Suction | |
| 3 | H342503001 | Cap, Fuel | |
| 4 | H342503101 | Filter | |
| 5 | H342503201 | Level Gauge | |
| 6 | N14/0010600 | Cock Valve Ass'y | |
| 7 | N16/X181004 | Plug | |
| 8 | N01/0233578 | Bolt, Hex. | |
| 9 | N03/1310014 | Washer, Spr. | |
| 10 | N03/0100027 | Washer, Pln. | |
| 11 | H342513400 | Hose | |
| 12 | N07/4010016 | Clamp | |
| 13 | H342513500 | Hose Fuel | |
| 17 | H343409500 | Shim | |
| 18 | H343410400 | Shim | |
| 19 | N01/0232462 | Bolt, Hex. | |
| 20 | N03/1310011 | Washer, Spr. | |
| 22 | N10/2016957 | O-Ring | |
| 23 | N16/K440106 | Connector | |
| 24 | H342504000 | Cover | |
| 25 | N01/0221574 | Bolt, Cylinder Head | |
| 27 | H342514700 | Water Seperator | |
| 28 | N01/0232462 | Bolt, Hex. | |
| 29 | N03/1310011 | Washer, Spr. | |
| 30 | H342514800 | Hose | |
| 31 | N03/1310008 | Washer, Spr. | |
| 32 | N03/0100013 | Washer, Pln. | |
| 33 | H342505300 | Connector | |
| 34 | N16/K440108 | Connector | |
| 35 | N14/0010600 | Cock Valve Ass'y | |
| 36 | H342505500 | Filter | |
| 37 | N07/4016027 | Clamp | |
| 38 | H342506200 | Filter | |
| 39 | H342506300 | Hose, Suction | |
| 40 | N07/4016027 | Clamp | |
| 41 | H342506400 | Hose, Fuel Tank | |
| 42 | N07/4016027 | Clamp | |
| 43 | N01/0222138 | Bolt, Hex. | |
| 44 | N03/1310010 | Washer, Spr. | |
| 45 | N03/0020011 | Washer, Pln. | |
| 46 | H342506500 | Bracket | |
| 47 | N01/0221202 | Bolt, Hex. | |
| 48 | N03/1310007 | Washer, Spr. | |
| 49 | N03/0100011 | Washer, Pln. |
