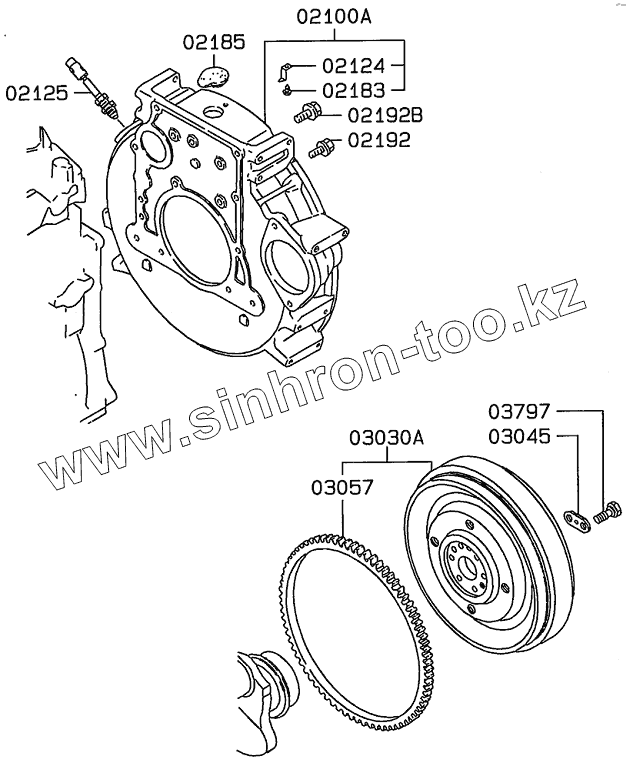

Каталог запасных частей к технике: Hidromek HMK 220LC-2. FLYWHEEL AND HOUSING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано BREAKER PIPING MOUNTING QUICK COUPLING ASSEMBLY QUICK COUPLING MOUNTING QUICK COUPLING CYLINDER BREAKER MOUNTING DOUBLE ACTING PIPING DOUBLE ACTING VALVE BOOM SAFETY LOCK SYSTEM ARM SAFETY LOCK SYSTEM OVERLOAD WARNING SYSTEM DITCH CLEANING BUCKET MOUNTING TRAPEZOIDAL BUCKET MOUNTING BEACON MOUNTING REAR WORK LAMP MOUNTING FRONT WORK LAMP MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING UPPER FRAME MOUNTING ACCUMULATOR BOX MOUNTING ANTI-SLIP WALKWAY ENGINE MOUNTING SHORT ENGINE ASSEMBLY SERVICE CYLINDER HEAD ASSEMBLY SERVICE CYLINDER BLOCK ASSEMBLY LINER AND PISTON KIT SERVICE CRANKSHAFT ASSEMBLY ENGINE OVERHAUL GASKET KIT ROCKER COVER AND BREATHER CYLINDER HEAD CYLINDER BLOCK OIL PAN - FILLER - GAUGE FLYWHEEL AND HOUSING PISTON - CONNROD - CRANKSHAFT CAMSHAFT - VALVE TIMING GEAR ATTACHING PARTS OIL PUMP AND STRAINER OIL FILTER OIL COOLER OIL LINE FUEL LINE AND WATER SEPARATOR FUEL FILTER AND HOSE FUEL INJECTION PUMP GENERAL INJECTION PUMP GOVERNOR GOVERNOR AUTOMATIC TIMER FUEL FEED PUMP INJECTION PIPE AND NOZZLE FUEL RETURN HOSE WATER PUMP AND FAN MOUNTING WATER PIPE AND THERMOSTAT INLET MANIFOLD EXHAUST MANIFOLD TURBOCHARGER STARTER ALTERNATOR AND REGULATOR PLATE AND LABEL CHASSIS HARNESS EQUIPMENT COUPLING ASSEMBLY AIR INTAKE MOUNTING EXHAUST MOUNTING COOLING SYSTEM COOLING SYSTEM RADIATOR RADIATOR FUEL TANK MOUNTING AND FUEL LINE ENGINE CONTROL MOUNTING AIRCONDITION MOUNTING HEATER MOUNTING MAIN PIPING MOUNTING (L/H) MAIN PIPING MOUNTING (R/H) MAIN PIPING MOUNTING (R/H) HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP REGULATOR MCV MCV MCV MCV HYDRAULIC OIL MOTOR - SWING UNIT REDUCTION GEAR - SWING GEAR LOWER PIPING MOUNTING TRAVEL MOTOR TRAVEL MOTOR TURNING JOINT PILOT PIPING MOUNTING 1 PILOT PIPING MOUNTING 1 PILOT PIPING MOUNTING 2 PILOT PIPING MOUNTING 2 PILOT PIPING MOUNTING 3 REMOTE CONTROL VALVE (R/L) PEDAL ATTACHMENT PIPING BOOM CYLINDER (R/L) BUCKET CYLINDER ARM CYLINDER HYDRAULIC TANK MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING UPPER DRAIN AND RETURN PIPING MOUNTING LOWER FRAME MOUNTING UPPER ROLLER LOWER ROLLER IDLER ASSEMBLY AND YOKE ADJUSTER ASSEMBLY TRACK CHAIN ASSEMBLY BOOM MOUNTING ARM MOUNTING WORKING ATTACHMENT CONTROL GENERAL PURPOSE BUCKET HEAVY DUTY BUCKET LUBRICATION PIPING MOUNTING CAB MOUNTING CAB CAB CAB CONSOLE BOX (R/H) CONSOLE BOX (L/H) CAB INTERIROR MOUNTING CAB INTERIOR MOUNTING DECAL MOUNTING (TURKISH) DECAL MOUNTING (ENGLISH) ELECTRIC ELECTRIC ELECTRIC MAIN HARNESS ENGINE HARNESS CAB MAIN HARNESS

02100A

02124

02125

02183

02185

02192

02192B

03030A

03045

03057

03797

Позиция на иллюстрации	Заводской номер детали		Название детали
02100A	H349003078		Housing Ass'y, Flyw.
02124	H349003079		Pointer, Eng. Timing
02125	H348012800		Sensor, Eng Speed
02183	H349003081		Screw, Flyw. Housing
02185	H349003082		Plug, Flyw. Housing
02192	H349003083		Bolt, Flyw. Housing
02192B	H349003084		Bolt, Flyw. Housing
03030A	H349003085		Flywheel Housing
03045	H349003086		Plate, Flyw. Bolt Lock
03057	H349003087		Ring Ge, Flywheel
03797	H349003088		Bolt, Flywheel
