Каталог запасных частей к технике: Hidromek HMK 220LC-2. ELECTRIC
1
1
2
3
4
5
7
8
9
10
11
12
15
16
17
18
19
20
21
22
22.1
22.2
22.3
22.4
22.5
22.6
22.7
22.8
22.9
22.10
22.11
22.15
23
25
27
27.1
27.2
27.3
27.4
27.5
28

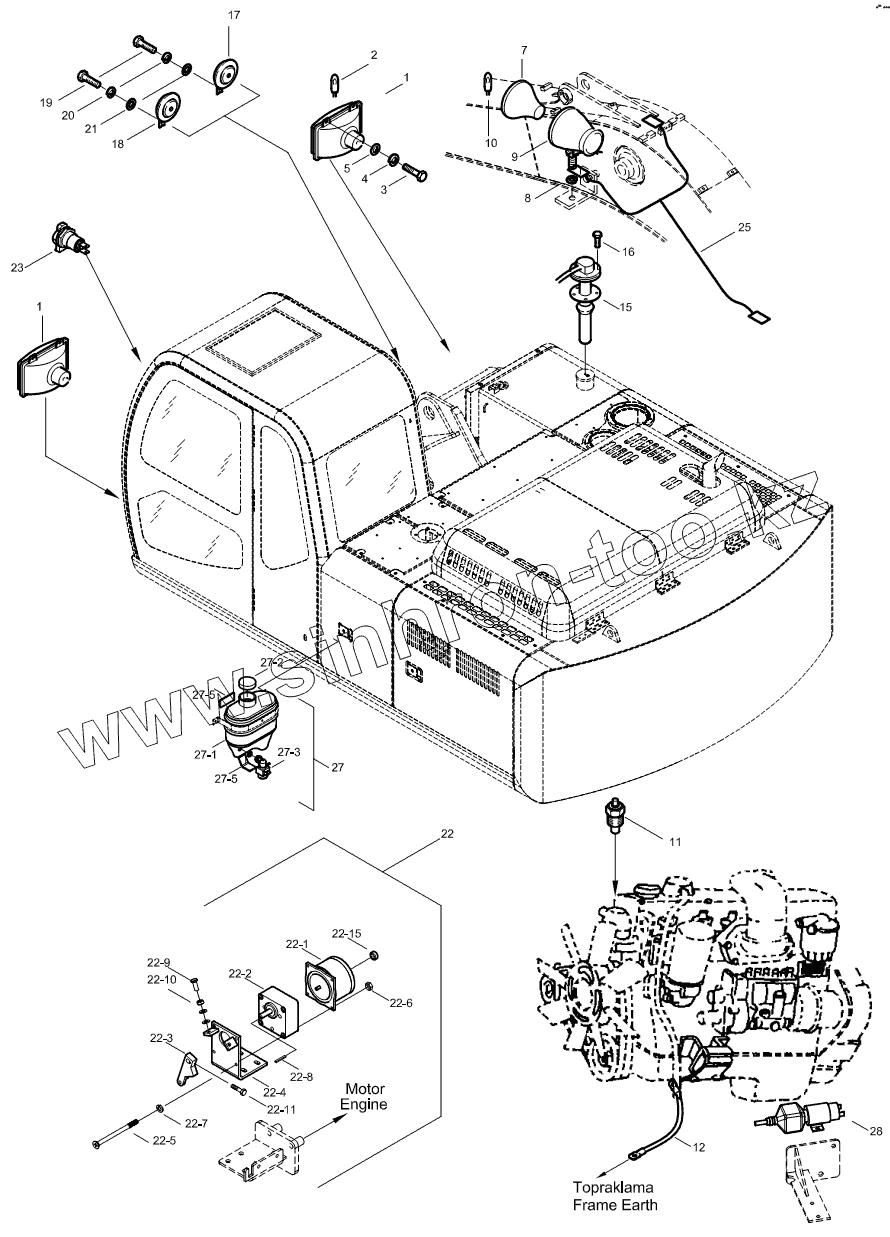

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H348004001 | Head Lamp | |
| 2 | H348004100 | Bulb | |
| 3 | N01/0222138 | Bolt, Hex. | |
| 4 | N03/1310010 | Washer, Spr. | |
| 5 | N03/0100016 | Washer, Pln. | |
| 7 | H348004300 | Work Lamp | |
| 8 | N03/0100017 | Washer, Pln. | |
| 9 | H348004400 | Rubber Housing | |
| 10 | H348004500 | Bulb | |
| 11 | H348012500 | Gauge, Water Temp. | |
| 12 | H349003689 | Cable, Engine Eth | |
| 15 | H348013000 | Sensor, Fuel | |
| 16 | N01/5870026 | Bolt, Cylinder Head | |
| 17 | H348002900 | Horn, High | |
| 18 | H348002800 | Horn, Low | |
| 19 | N01/0221478 | Bolt, Hex. | |
| 20 | N03/1310008 | Washer, Spr. | |
| 21 | N03/0100013 | Washer, Pln. | |
| 22 | H348014000 | Step Motor Ass'y | |
| 22.1 | H348005700 | Step Motor | |
| 22.2 | H348005800 | Ge Box | |
| 22.3 | H348014100 | Bracket | |
| 22.4 | H348014200 | Bracket | |
| 22.5 | N04/4061404 | Bolt | |
| 22.6 | N02/3570146 | Nut | |
| 22.7 | N03/1310007 | Washer, Spr. | |
| 22.8 | N50/0003025 | Key, Sque | |
| 22.9 | N01/5870458 | Bolt, Cyl. Hd. | |
| 22.10 | N02/3570182 | Nut, Hex. | |
| 22.11 | N04/4061070 | Bolt | |
| 22.15 | H348007800 | Plug | |
| 23 | H348004901 | Socket | |
| 25 | H348000500 | Hness, Work Lamp | |
| 27 | H348009001 | Washer Tank Ass'y | |
| 27.1 | H348009100 | Washer Tank | |
| 27.2 | H348009200 | Cover | |
| 27.3 | H348009301 | Washer Motor | |
| 27.4 | H348009400 | Gasket | |
| 27.5 | H348009500 | Sponge | |
| 28 | H348015000 | Fuel Shut-off V/V |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
