Каталог запасных частей к технике: Hidromek HMK 220LC-2. DECAL MOUNTING (TURKISH)

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

43

44

45

46

47

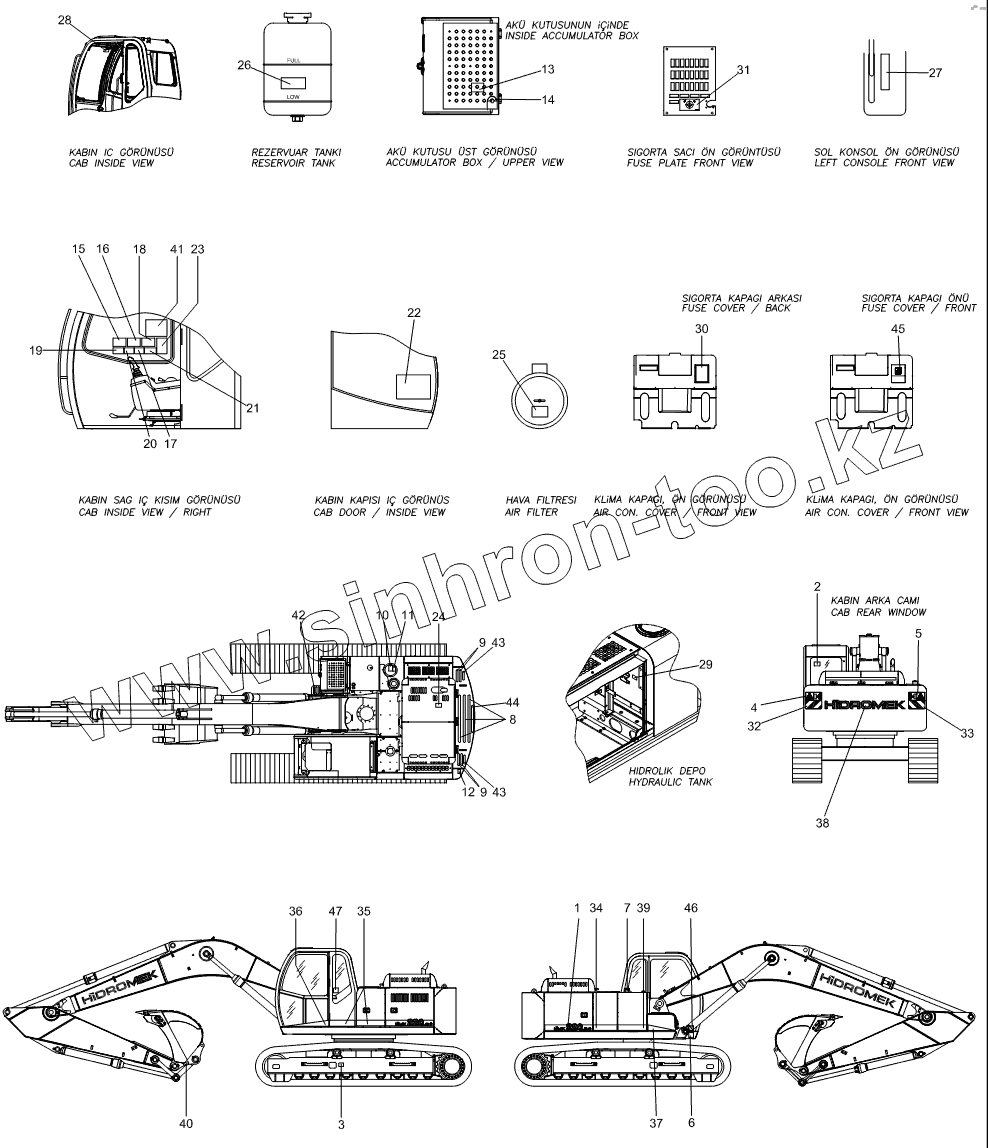

Позиция на иллюстрации	Заводской номер детали		Название детали
1	H347000203		Decal, Model
2	H347000500		Emergency Exit
3	H347000700		Track Adjuster
4	H347000800		Keep Away, L/H
5	H347000900		Keep Away, R/H
6	H347001101		Name Plate
7	H347001200		Fuel Decal
8	H347001301		Anti Skid Strip
9	H347001401		Anti Skid Strip
10	H347001500		Decal, Hyd. Oil
11	H347001600		Wning Decal
12	H347001700		Wning Decal
13	H347001800		Accum. Wn. Decal
14	H347001900		Master Switch On/Off
15	H347002000		Before Operating
16	H347002100		Wning Decal
17	H347002200		Wning Decal
18	H347002300		Decal, Safe Operation
19	H347002400		Decal, Operation
20	H347002500		Decal, Air Bleeding
21	H347002600		Decal, Throttle Cable
22	H347030100		Decal, Inspection
23	H347030200		Decal, Tech. Specific.
24	H347002900		Wning Decal, Hot
25	H347003001		Decal, Air Filter
26	H347003100		Reservoir Tank, Wn.
27	H347003200		Decal, Safety Lock.
28	H347003300		Wning Decal
29	H347003500		Decal, Hyd. Oil Level
30	H257003600		Decal, Fuse
31	H347003800		Decal, Auto-Manuel
32	H347003900		Decal, Reflector
33	H347004000		Decal, Reflector
34	H347005303		Decal, Hyd. Tank
35	H347004703		Decal, Tool Box
36	H347004803		Decal, Cab Door
37	H347004903		Decal, Accum. Box
38	H347005101		Decal, Logo
39	H347030500		Decal, Fuel Tank
40	H347000600		Decal, Attachment
41	H347000400		Decal, Lifting Capacity
42	H347006000		Anti Skid Strip
43	H347006100		Anti Skid Strip
44	H347006200		Anti Skid Strip
45	Y06/11340		Decal, Electric Wn.
46	H347030300		Sound Level, Outside
47	H347030400		Sound Level, Inside

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
