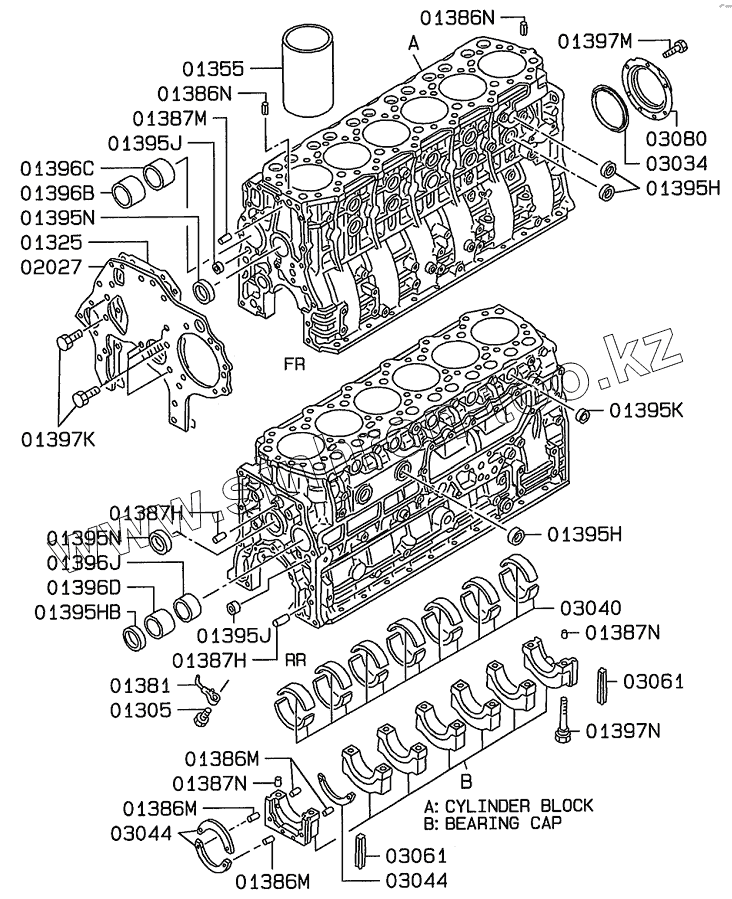

Каталог запасных частей к технике: Hidromek HMK 220LC-2. CYLINDER BLOCK
01305
01325
01355
01355
01381
01386M
01386M
01386M
01386N
01386N
01387H
01387H
01387M
01387N
01387N
01395H
01395H
01395HB
01395J
01395J
01395K
01395N
01395N
01396B
01396C
01396D
01396J
01397K
01397M
01397N
02027
03034
03040
03040
03040
03040
03040
03044
03044
03044
03044
03044
03061
03061
03080
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01305 | H349003034 | Check V/V, Piston Lub | |
| 01325 | H349003035 | Gasket, Front Plate | |
| 01355 | H349003036 | Sleeve, Cylinder | |
| 01355 | H349003037 | Sleeve, Cylinder | |
| 01381 | H349003038 | Oil Jet, Cyl. Block | |
| 01386M | H349003039 | Sprin Pin, Cyl. Block | |
| 01386N | H349003040 | Sprin Pin, Cyl. Block | |
| 01387H | H349003041 | Pin, Cyl. Block | |
| 01387M | H349003042 | Pin, Timing Power Train Case | |
| 01387N | H349003043 | Pin, Cyl. Block | |
| 01395H | H349003044 | Cap, Cyl. Block | |
| 01395HB | H349003045 | Cap, Cyl. Block | |
| 01395J | H349003025 | Cap, Cylinder Hd. | |
| 01395K | H349003026 | Cap, Cylinder Hd. | |
| 01395N | H349003048 | Cap, Cyl. Block | |
| 01396B | H349003049 | Bushing, Cyl. Block | |
| 01396C | H349003050 | Bushing, Cyl. Block | |
| 01396D | H349003051 | Bushing, Cyl. Block | |
| 01396J | H349003052 | Bushing, Cyl. Block | |
| 01397K | H349003053 | Bolt | |
| 01397M | H349003054 | Bolt | |
| 01397N | H349003055 | Bolt, Cyl. Block | |
| 02027 | H349003056 | Plate, Cyl. Block FR | |
| 03034 | H349003057 | Oil Slinger, Crnks. RR | |
| 03040 | H349003058 | Being , Crnks. | |
| 03040 | H349003059 | Being , Crnks. | |
| 03040 | H349003060 | Being , Crnks. | |
| 03040 | H349003061 | Being , Crnks. | |
| 03040 | H349003062 | Being , Crnks. | |
| 03044 | H349003063 | Plate, Crnks. Thrust | |
| 03044 | H349003064 | Plate, Crnks. Thrust | |
| 03044 | H349003065 | Plate, Crnks. Thrust | |
| 03044 | H349003066 | Plate, Crnks. Thrust | |
| 03061 | H349003067 | Seal, Crnks. Be. Cap | |
| 03080 | H349003068 | Oil Seal, Crnks. RR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
