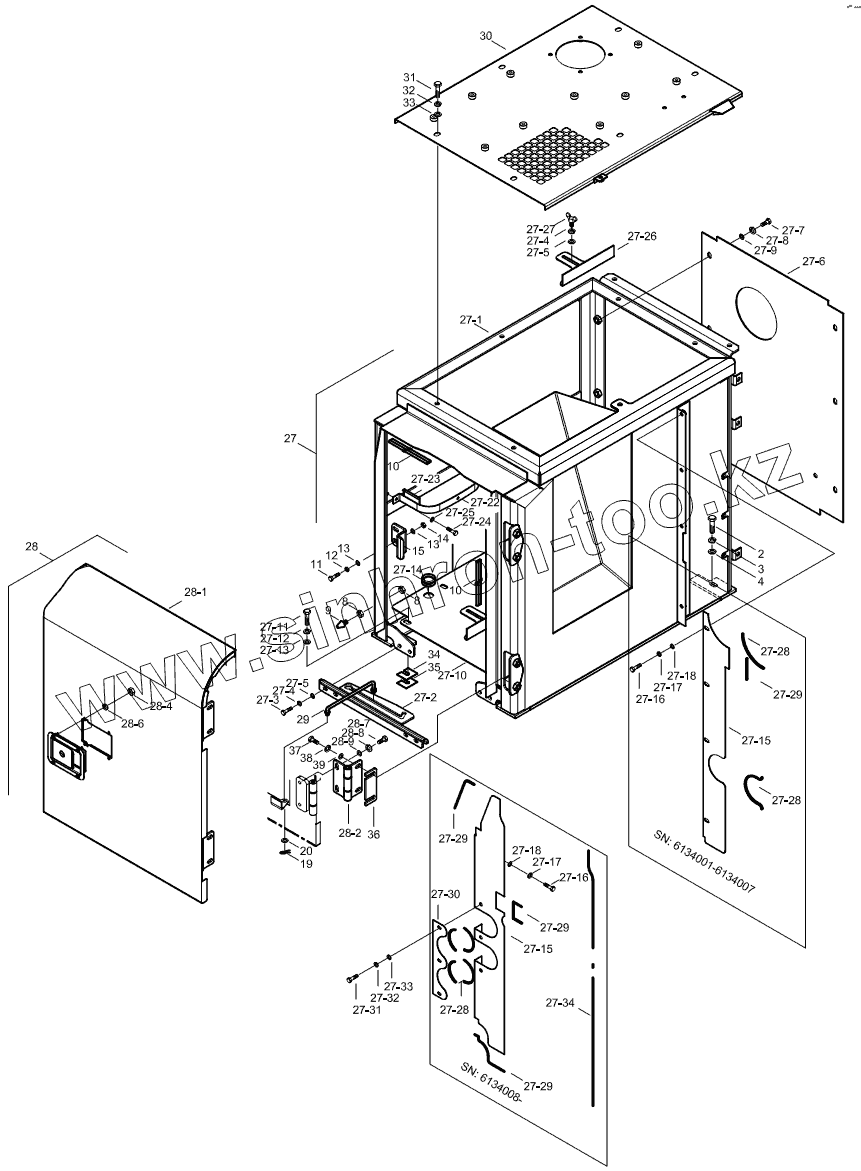

Каталог запасных частей к технике: Hidromek HMK 220LC-2. COWLING MOUNTING
2
3
4
8
8
9
10
10
11
12
13
13
14
15
15
19
20
27
27
27
27.1
27.1
27.1
27.2
27.3
27.4
27.4
27.5
27.5
27.6
27.6
27.7
27.8
27.9
27.10
27.10
27.11
27.12
27.13
27.14
27.15
27.15
27.15
27.15
27.16
27.16
27.17
27.17
27.18
27.18
27.22
27.23
27.24
27.25
27.26
27.27
27.28
27.28
27.28
27.29
27.29
27.29
27.29
27.29
27.30
27.31
27.32
27.33
27.34
28
28
28
28.1
28.1
28.1
28.2
28.4
28.6
28.7
28.8
28.9
29
30
31
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | N01/0232882 | Bolt, Hex. | |
| 3 | N03/1310012 | Washer, Spr. | |
| 4 | N03/0100023 | Washer, Pln. | |
| 8 | N02/3570206 | Nut, Hex. | |
| 9 | H341102900 | Stopper | |
| 10 | 98Z020010 | Wheather Strip | |
| 11 | N01/0232486 | Bolt, Hex. | |
| 12 | N03/1310011 | Washer, Spr. | |
| 13 | N03/0020121 | Washer, Pln. | |
| 14 | N02/3570206 | Nut, Hex. | |
| 15 | H341103101 | Plate, Lock | |
| 15 | H341103102 | Plate, Lock | |
| 19 | N06/1002015 | Pin, Split | |
| 20 | N03/0100020 | Washer, Pln. | |
| 27 | H341142000 | Support Ass'y, AirFilt. | |
| 27 | H341142001 | Support Ass'y, AirFilt. | |
| 27 | H341142002 | Support Ass'y, AirFilt. | |
| 27.1 | H341142100 | Support W.A., Air Filt | |
| 27.1 | H341142101 | Support W.A., Air Filt | |
| 27.1 | H341142102 | Support W.A., Air Filt | |
| 27.2 | H341133500 | Bracket, W.A. | |
| 27.3 | N01/0232138 | Bolt, Hex. | |
| 27.4 | N01/1310010 | Washer, Spr. | |
| 27.5 | N03/0020111 | Washer, Pln. | |
| 27.6 | H341143300 | Cover | |
| 27.6 | H341143301 | Cover | |
| 27.7 | N01/0232462 | Bolt, Hex. | |
| 27.8 | N03/1310011 | Washer, Spr. | |
| 27.9 | N03/0020121 | Washer, Pln. | |
| 27.10 | H341133901 | Cover | |
| 27.10 | H341143600 | Cover | |
| 27.11 | N01/0232462 | Bolt, Hex. | |
| 27.12 | N03/1310011 | Washer, Spr. | |
| 27.13 | N03/0020121 | Washer, Pln. | |
| 27.14 | 98Y010250 | Gromet | |
| 27.15 | H341143500 | Plate, Isolation, W.A. | |
| 27.15 | H341143501 | Plate, Isolation, W.A. | |
| 27.15 | H341143502 | Plate, Isolation, W.A. | |
| 27.16 | N01/0232114 | Bolt, Hex. | |
| 27.17 | N03/1310010 | Washer, Spr. | |
| 27.18 | N03/0020111 | Washer, Pln. | |
| 27.22 | H343410000 | Clamp | |
| 27.23 | H343410100 | Rubber | |
| 27.24 | N01/231478 | Bolt, Hex. | |
| 27.25 | N03/0100013 | Washer, Pln. | |
| 27.26 | H341137300 | Holder, Tool | |
| 27.27 | N04/2180374 | Wing Screw | |
| 27.28 | 98Y010500 | Gromet | |
| 27.29 | 98Z010010 | Wheather Strip | |
| 27.29 | 98Z020010 | Wheather Strip | |
| 27.30 | H341151400 | Support, Sponge | |
| 27.31 | N01/0232114 | Bolt, Hex. | |
| 27.32 | N03/1310010 | Washer, Spr. | |
| 27.33 | N03/0020111 | Washer, Pln. | |
| 27.34 | 98Z010010 | Wheather Strip | |
| 28 | H341129001 | Side Door Ass'y, L/H | |
| 28 | H341149000 | Side Door Ass'y, L/H | |
| 28 | H341149001 | Side Door Ass'y, L/H | |
| 28.1 | H341129101 | Side Door Ass'y, L/H | |
| 28.1 | H341149100 | Side Door Ass'y, L/H | |
| 28.1 | H341149101 | Side Door Ass'y, L/H | |
| 28.2 | H341128100 | Hinge | |
| 28.3 | H343407601 | Lock Ass'y | |
| 28.3 | H343407602 | Lock Ass'y | |
| 28.4 | N02/5880026 | Nut, Hex. | |
| 28.6 | N03/0100011 | Washer, Pln. | |
| 28.7 | N01/0232438 | Bolt, Hex. | |
| 28.8 | N03/0100021 | Washer, Pln. | |
| 28.9 | N03/1310011 | Washer, Spr. | |
| 29 | H341134800 | B, Lock | |
| 30 | H341146800 | Cover, Air Filter | |
| 31 | N01/232462 | Bolt, Hex. | |
| 32 | N03/1310011 | Washer, Spr. | |
| 33 | N03/0020121 | Washer, Pln. | |
| 34 | H341114300 | Shim | |
| 35 | H341114400 | Shim | |
| 36 | H341114202 | Shim | |
| 37 | N01/0232438 | Bolt, Hex. | |
| 38 | N03/1310011 | Washer, Spr. | |
| 39 | N03/0100020 | Washer, Pln. |
