Каталог запасных частей к технике: Hidromek HMK 220LC-2. COWLING MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
5
5
5
6
6
6
7
7
7
40
41
42
43
44
45
45
46
46
47
47
48
48
48
49
49
50
50
51
51
52
52
53
53
53
54
54
54
55
55
55
56
56
56
56.1
56.1
56.1
56.2
56.3
56.4
56.5
56.5
56.6
56.6
56.7
56.8
56.9
57
57
57.1
57.1
57.2
57.3
57.4
57.5
57.5
57.6
57.7
61
62
63
64
64
65
65
66
66
67
67
76
77
78
79

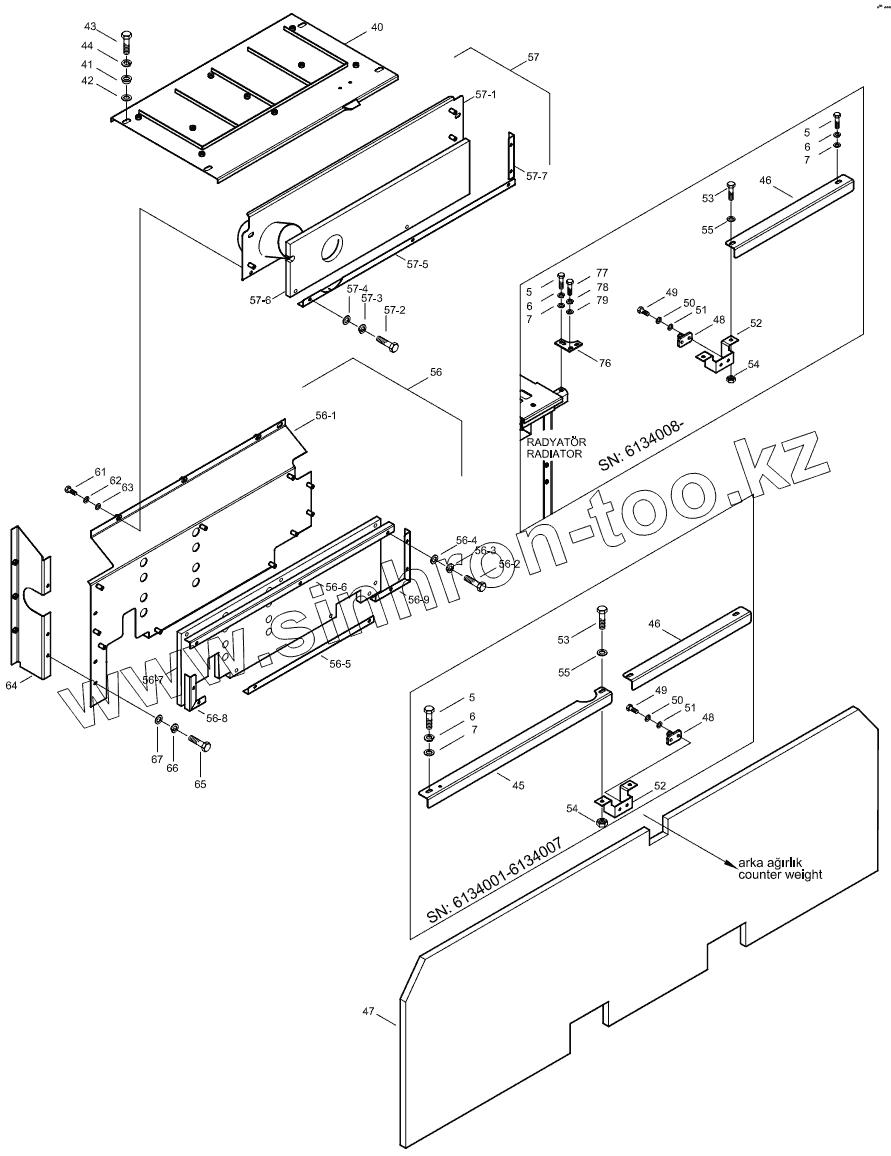

Позиция на иллюстрации Заводской номер детали Название детали
5 N01/0232822 Bolt, Hex.
6 N03/1310012 Washer, Spr.
7 N03/0020123 Washer, Pln.
40 H341111103 Cover,W.A., M.C.V.
41 H341126600 Bush, Conn.
42 H341126700 Washer, Pln.
43 N01/0232462 Bolt, Hex.
44 N03/1310011 Washer, Spr.
45 H341123502 Angle Bracket, L/H
45 H341146700 Angle Bracket, L/H
46 H341123602 Angle Bracket, R/H
47 H341125001 Sponge
47 H341125002 Sponge
48 H341122800 Bracket
48 H341122801 Bracket
49 N01/0222462 Bolt, Hex.
50 N03/1310011 Washer, Spr.
51 N03/0100020 Washer, Pln.
52 H341122700 Bracket
53 N01/0232846 Bolt, Hex.
53 N01/0232846 Bolt, Hex.
54 N02/3570242 Nut, Hex.
54 N02/3570242 Nut, Hex.
55 N03/0020123 Washer, Pln.
55 N03/0020123 Washer, Pln.
56 H341144500 Cover, Ass'y
56 H341144501 Cover, Ass'y
56 H341144502 Cover, Ass'y
56.1 H341144600 Cover,W.A.
56.1 H341144601 Cover,W.A.
56.1 H341144602 Cover,W.A.
56.2 N01/0222478 Bolt, Hex.
56.3 N03/1310008 Washer, Spr.
56.4 N03/0100013 Washer, Pln.
56.5 H341131201 Bracket, Sponge, Up.
56.5 H341144800 Bracket, Sponge, Up.
56.6 H341131302 Bracket, Sponge, Low.
56.6 H341144900 Bracket, Sponge, Low.
56.7 H341136100 Sponge
56.8 H341150100 Bracket, Sponge
56.9 H341150300 Bracket, Sponge
57 H341144000 Front Angle, Ass'y
57 H341144001 Front Angle, Ass'y
57.1 H341144100 Front Angle, W.A.
57.1 H341144101 Front Angle, W.A.
57.2 N01/0221478 Bolt, Hex.
57.3 N03/1310008 Washer, Spr.
57.4 N03/0100013 Washer, Pln.
57.5 H341135400 Bracket, Sponge, Lwr.
57.5 H341144400 Bracket, Sponge, Lwr.
57.6 H341112401 Sponge
57.7 H341150000 Bracket, Sponge
61 N01/0232114 Bolt, Hex.
62 N03/1310010 Washer, Spr.
63 N03/0020111 Washer, Pln.
64 H341150800 Cover
64 H341150801 Cover
65 N01/0232114 Bolt, Hex.
65 N01/0232114 Bolt, Hex.
66 N03/1310010 Washer, Spr.
66 N03/1310010 Washer, Spr.
67 N03/0020111 Washer, Pln.
67 N03/0020111 Washer, Pln.
76 H341151600 Plate, Conn.
77 N01/0232138 Bolt, Hex.
78 N03/1310010 Washer, Spr.
79 N03/0020111 Washer, Pln.
85 N01/0232138 Bolt, Hex.
86 N03/1310010 Washer, Spr.
87 N03/0020111 Washer, Pln.
