  5. COWLING MOUNTING

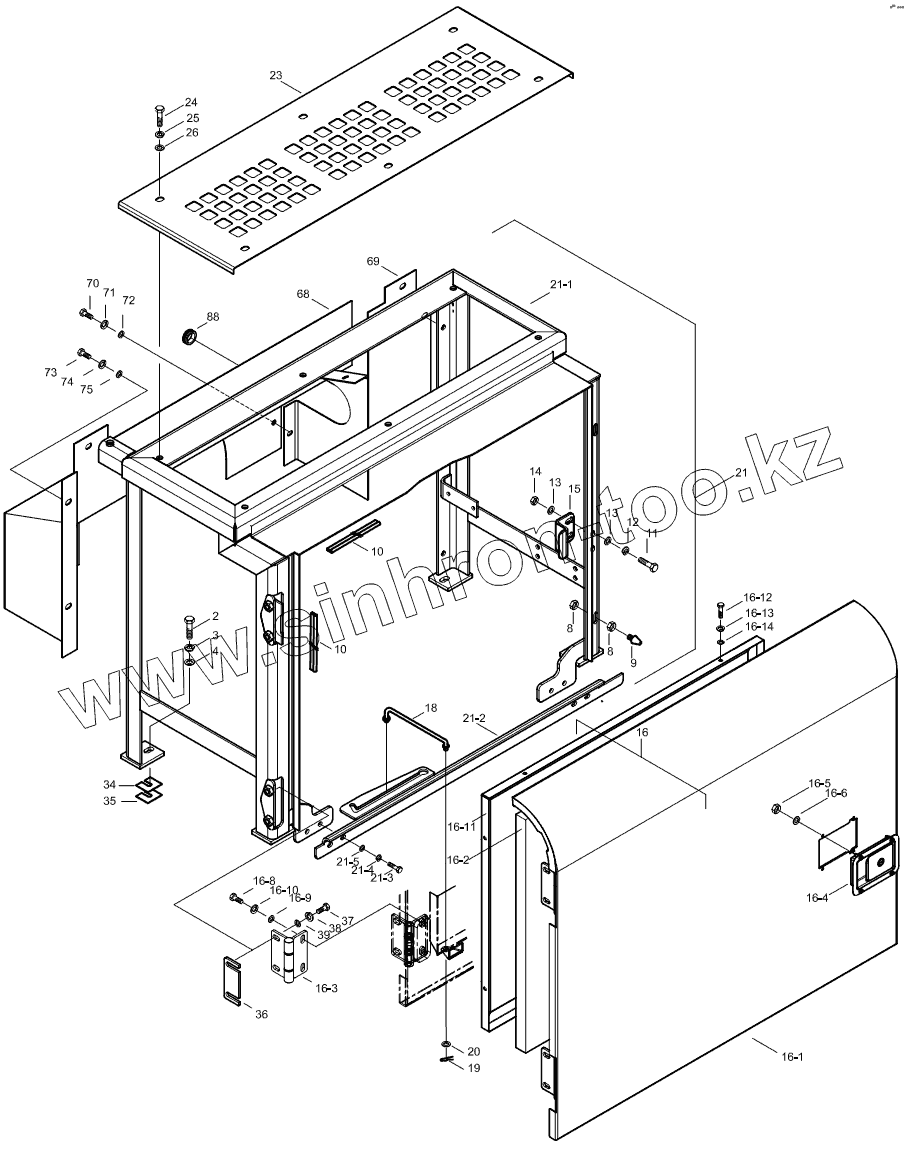

Каталог запасных частей к технике: Hidromek HMK 220LC-2. COWLING MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2
3
4
8
8
9
10
10
11
12
13
13
14
15
15
16
16
16
16
16.1
16.1
16.1
16.1
16.2
16.2
16.2
16.3
16.4
16.4
16.5
16.6
16.8
16.9
16.10
16.11
16.11
16.11
16.12
16.13
16.14
18
19
20
21
21
21.1
21.1
21.2
21.3
21.4
21.5
23
24
25
26
34
35
36
37
38
39
68
69
70
71
72
73
74
75
88
Позиция на иллюстрации Заводской номер детали Название детали
2 N01/0232882 Bolt, Hex.
3 N03/1310012 Washer, Spr.
4 N03/0100023 Washer, Pln.
8 N02/3570206 Nut, Hex.
9 H341102900 Stopper
10 98Z020010 Wheather Strip
11 N01/0232486 Bolt, Hex.
12 N03/1310011 Washer, Spr.
13 N03/0020121 Washer, Pln.
14 N02/3570206 Nut, Hex.
15 H341103101 Plate, Lock
15 H341103102 Plate, Lock
16 H341103303 Side Door Ass'y
16 H341147000 Side Door Ass'y
16 H341147001 Side Door Ass'y
16 H341147002 Side Door Ass'y
16.1 H341103403 Side Door Ass'y
16.1 H341147100 Side Door Ass'y
16.1 H341147101 Side Door Ass'y
16.1 H341147102 Side Door Ass'y
16.2 H341104802 Sponge
16.2 H341147400 Sponge
16.2 H341147401 Sponge
16.3 H341128100 Hinge
16.4 H343407601 Lock Ass'y
16.4 H343407602 Lock Ass'y
16.5 N02/5880026 Nut, Hex.
16.6 N03/0100011 Washer, Pln.
16.8 N01/0232438 Bolt, Hex.
16.9 N03/0020121 Washer, Pln.
16.10 N03/1310011 Washer, Spr.
16.11 H341130701 Sash, Sponge
16.11 H341147500 Sash, Sponge
16.11 H341147501 Sash, Sponge
16.12 N01/0221478 Bolt, Hex.
16.13 N03/1310008 Washer, Spr.
16.14 N03/0100013 Washer, Pln.
18 H341105300 B, Lock
19 N06/1002015 Pin, Split
20 N03/0100020 Washer, Pln.
21 H341105502 Support Ass'y, Pump
21 H341141000 Support Ass'y, Pump
21.1 H341105603 Support W.A., Pump
21.1 H341141100 Support W.A., Pump
21.2 H341107601 Bracket, W.A.
21.3 N01/0232138 Bolt, Hex.
21.4 N03/1310010 Washer, Spr.
21.5 N03/0020111 Washer, Pln.
23 H341110002 Cover, Pump
24 N01/0232462 Bolt, Hex.
25 N03/1310011 Washer, Spr.
26 N03/0020121 Washer, Pln.
34 H341114300 Shim
35 H341114400 Shim
36 H341114202 Shim
37 N01/0232438 Bolt, Hex.
38 N03/1310011 Washer, Spr.
39 N03/0100020 Washer, Pln.
68 H341151000 Cover, Pump
69 H341151200 Cover, FR, Pump
70 N01/0232114 Bolt, Hex.
71 N03/1310010 Washer, Spr.
72 N03/0020111 Washer, Pln.
73 N01/0232462 Bolt, Hex.
74 N03/1310011 Washer, Spr.
75 N03/0020121 Washer, Pln.
88 810/40007 Gromet
