  5. CAB INTERIROR MOUNTING

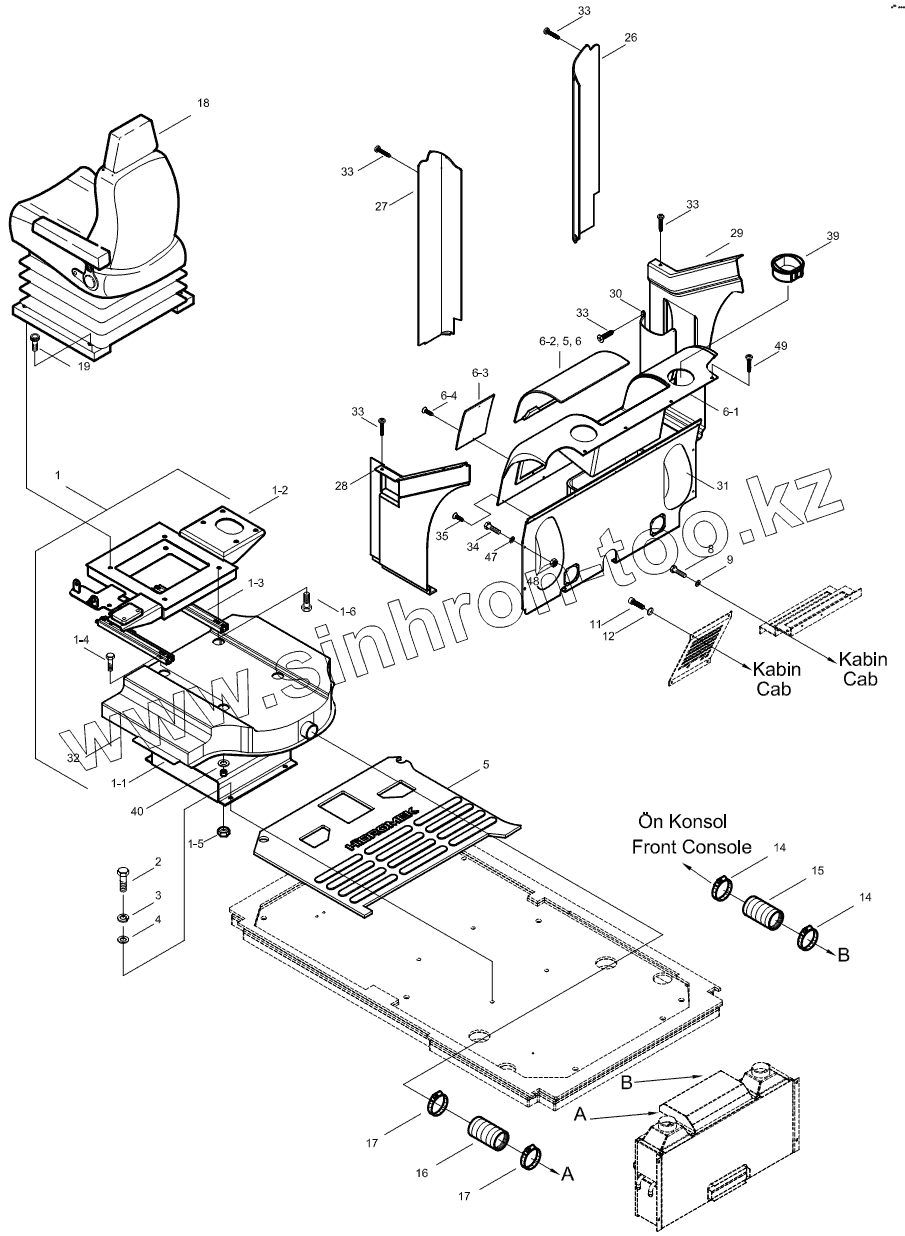

Каталог запасных частей к технике: Hidromek HMK 220LC-2. CAB INTERIROR MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1.1
1.2
1.3
1.4
1.5
1.6
2
3
4
5
6
6.1
6.2
6.2
6.3
6.4
6.5
6.5
6.6
6.6
8
9
11
12
14
14
15
16
17
17
18
19
26
27
28
29
30
31
32
33
33
33
33
33
34
35
39
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
1 H346100605 Seat Support Ass'y
1.1 H346100704 Seat Sup. W.A., Bot.
1.2 H346100802 Seat Sup. W.A., Up
1.3 H346100901 Slide Ass'y
1.4 N01/0222186 Bolt, Hex.
1.5 N02/3570182 Nut, Hex.
1.6 N01/0222462 Bolt, Hex.
2 N01/0232858 Bolt, Hex.
3 N03/0100023 Washer, Pln.
4 N03/1310012 Washer, Spr.
5 H346107603 Floormat
6 H346104104 Heater Cover Mnt., Up.
6.1 H346104304 Heater Cover
6.2 H346104803 Cover
6.2 H346104804 Cover
6.3 H346104502 Cover, Fuse Plate
6.4 N04/1520914 Bolt
6.5 H346105201 Lock, FM, W/Magnet
6.5 H346105202 Lock, Female
6.6 H346105301 Lock, M, W/Magnet
6.6 H346105302 Lock, Male
8 N04/1671826 Screw
9 N03/0100011 Washer, Pln.
11 N04/1671826 Screw
12 N03/0100011 Washer, Pln.
14 N07/4060080 Clamp
15 H346118602 Hose, Air
16 H346118101 Hose, Air
17 N07/4050070 Clamp
18 H346101902 Seat Ass'y
19 N01/5890470 Bolt, Cylinder Head
26 H346120801 Cover, Air, R/H
27 H346120901 Cover, Air, L/H
28 H346120200 Cover, L/H
29 H346120000 Cover, R/H
30 H346120100 Pocket, Cep
31 H346120301 Heater Cover, Lower
32 H346120401 Cover, Seat Support
33 N04/9530360 Screw
34 N01/0221514 Bolt, Hex.
35 N04/3721144 Screw
39 H346121400 Diffuser, Air
47 N03/0020004 Washer, Pln.
48 N02/3560158 Nut, Hex.
49 N04/9530360 Screw
50 H346121200 Washer, Pln.
