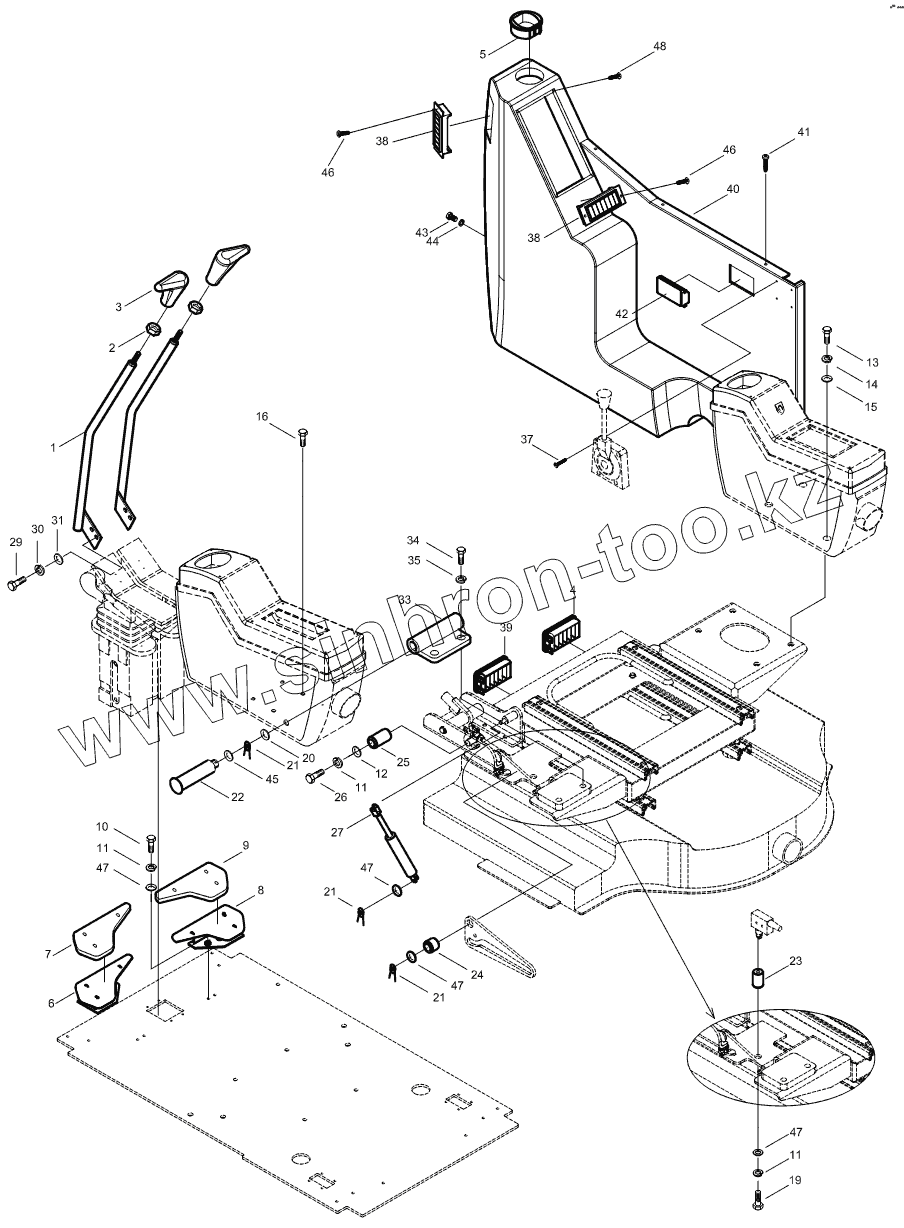

Каталог запасных частей к технике: Hidromek HMK 220LC-2. CAB INTERIOR MOUNTING
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
19
20
21
21
21
22
23
24
25
26
27
29
30
31
33
34
35
37
38
38
39
40
41
42
43
44
45
46
46
47
47
47
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H346107202 | Lever Ass'y | |
| 2 | H346119100 | Nut, Hex. | |
| 3 | H346107402 | Knob | |
| 4 | H346113601 | Louver | |
| 5 | F25/20505 | Diffuser, Air | |
| 6 | H346107501 | Bracket, Foot Rest, L | |
| 7 | H346117900 | Rubber, L/H | |
| 8 | H346113000 | Bracket, Foot Rest, R | |
| 9 | H346119700 | Rubber,R/H | |
| 10 | N01/0222162 | Bolt, Hex. | |
| 11 | N03/1310010 | Washer, Spr. | |
| 12 | N03/0108017 | Washer Pln. | |
| 13 | N01/5890818 | Bolt, Cyl. Hd. | |
| 14 | N03/1360010 | Washer, Spr. | |
| 15 | N03/0100020 | Washer, Pln. | |
| 16 | N04/3700976 | Screw | |
| 19 | N01/0222114 | Bolt, Hex. | |
| 20 | N03/0100020 | Washer, Pln. | |
| 21 | N06/1002525 | Pin, Split | |
| 22 | H346103500 | Pin, Console (L/H) | |
| 23 | H346116000 | Pin, Locking Ass'y | |
| 24 | H346115500 | Polyamide, Wedge | |
| 25 | H346115900 | Pin, Hook | |
| 26 | N01/0232138 | Bolt, Hex. | |
| 27 | H346103600 | Gas Spring | |
| 29 | N01/5870794 | Bolt, Cyl. Hd. | |
| 30 | N03/1360010 | Washer, Spr. | |
| 31 | N03/0020018 | Washer, Pln. | |
| 33 | H346103400 | Bushing, W.A. | |
| 34 | N01/0232858 | Bolt, Hex. | |
| 35 | N03/1310012 | Washer, Spr. | |
| 37 | N04/3421358 | Screw | |
| 38 | F25/20511 | Louver | |
| 39 | H346121300 | Louver | |
| 40 | H346105401 | Console, Front | |
| 41 | N04/1150349 | Bolt | |
| 42 | F32/18710 | Ashtray | |
| 43 | N01/0221514 | Bolt, Hex. | |
| 44 | N03/0020004 | Washer, Pln. | |
| 45 | H346121100 | Washer, Pln | |
| 46 | N04/9530360 | Screw | |
| 47 | N03/0100017 | Washer, Pln. | |
| 48 | N04/3700976 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
