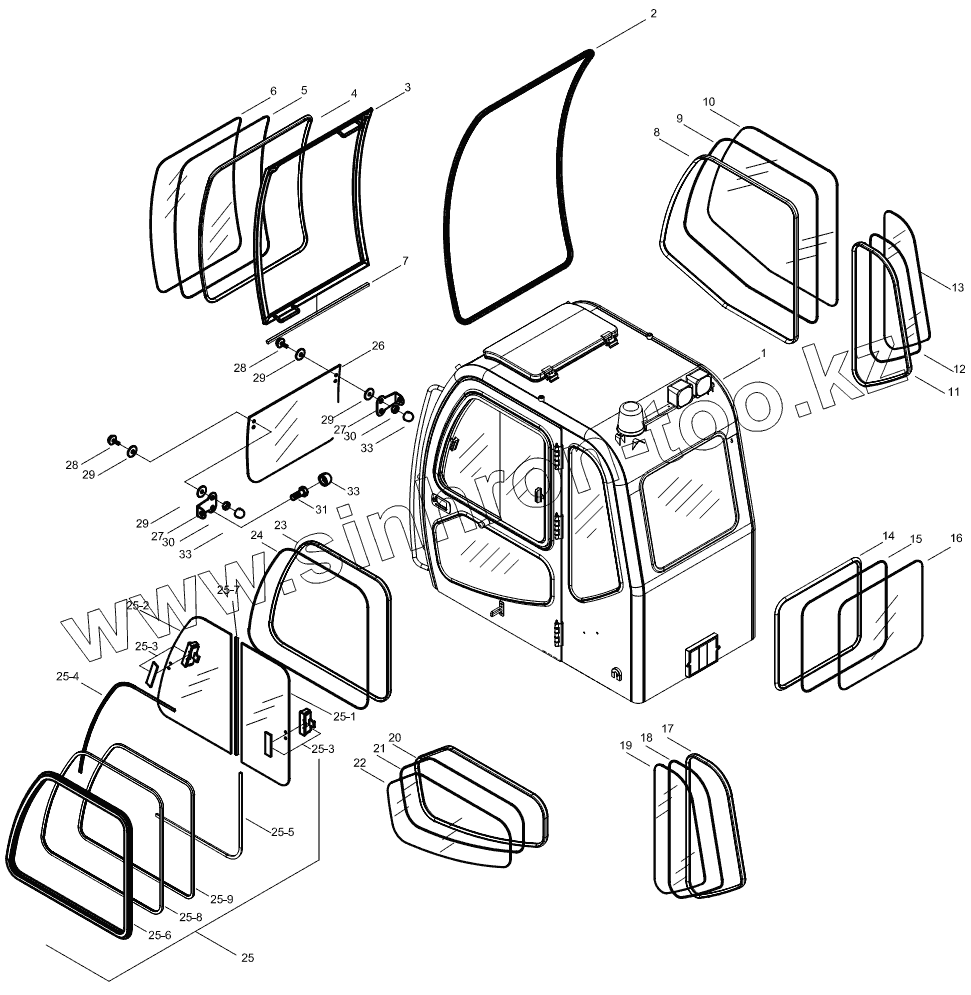

Каталог запасных частей к технике: Hidromek HMK 220LC-2. CAB

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
29
29
29
30
30
31
33
33
33
251
251
252
252
253
253
254
255
256
257
258
259
Позиция на иллюстрации Заводской номер детали Название детали
H346000203 H346000203 Cab Ass'y
1 H346020102 Cab, W.A.
2 H346047600 Weather Strip
3 H346046100 Sash, Front Glass
4 H346047300 Weather Strip, Glass
5 H346047400 Retaining Rub., Wtr Str
6 H346047701 Glass, Front
7 H346047500 Rubber
8 H346040900 Weather Strip, Glass
9 H346041000 Retaining Rub., Wtr Str
10 H346040800 Glass, R/H, Front
11 H346040600 Weather Strip, Glass
12 H346040700 Retaining Rub., Wtr Str
13 H346040500 Glass, R/H, Back
14 H346040300 Weather Strip, Glass
15 H346040400 Retaining Rub., Wtr Str
16 H346040200 Glass, Back
17 H346041200 Weather Strip, Glass
18 H346041300 Retaining Rub., Wtr Str
19 H346041100 Glass, L/H, Back
20 H346045600 Weather Strip, Glass
21 H346045700 Retaining Rub., Wtr Str
22 H346044900 Glass, Door, Bottom
23 H346044400 Weather Strip, Glass
24 H346044500 Retaining Rub., Wtr Str
25 H346044600 Sash Ass'y, Door
26 H346039400 Glass, Front, Bottom
27 H346039500 Con. Plate, Bot.Glass
28 N01/0000008 Bolt, Glass Conn.
29 810/40046 Washer, Pln., Rubber
30 N02/5900062 Washer, Pln.
31 N01/0222114 Bolt, Hex.
33 814/00155 Cover, Bolt
251 H346044701 Glass, Door
251 H346044700 Glass, Door
252 H346044801 Glass, Door
252 H346044800 Glass, Door
253 H346045500 Handle
254 H346063900 Weather Strip, Out., RR
255 H346063800 Weather Strip, In., FR
256 H346045900 Sash, Door Glass
257 H346064000 Weather Strip, Middle
258 H346064100 Weather Strip, Out.
259 H346064200 Weather Strip, In.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
