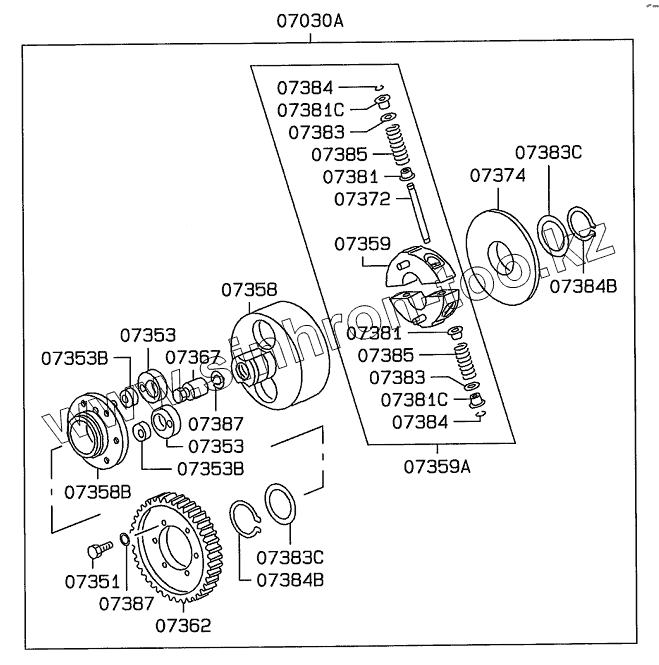

Каталог запасных частей к технике: Hidromek HMK 220LC-2. AUTOMATIC TIMER
07030A
07351
07353
07353
07353B
07353B
07358
07358B
07359
07359A
07362
07367
07372
07374
07381
07381
07381C
07381C
07383
07383
07383C
07383C
07384
07384
07384B
07384B
07385
07385
07387
07387
07387
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 07030A | H349003277 | Timer Ass'y. | |
| 07351 | H349003506 | Bolt, Timer | |
| 07353 | H349003507 | Cam, Timer | |
| 07353B | H349003508 | Cam, Timer | |
| 07358 | H349003509 | Flange, Timer | |
| 07358B | H349003510 | Flange, Timer | |
| 07359 | H349003511 | Flyweight, Timer | |
| 07359A | H349003512 | Flyweight, Timer | |
| 07362 | H349003513 | Ge, Timer | |
| 07367 | H349003514 | Nut, Timer | |
| 07372 | H349003515 | Pin, Timer | |
| 07374 | H349003516 | Plate, Timer | |
| 07381 | H349003517 | Seat, Timer | |
| 07381C | H349003517 | Seat, Timer | |
| 07383 | H349003519 | Shim, Timer | |
| 07383 | H349003520 | Shim, Timer | |
| 07383 | H349003521 | Shim, Timer | |
| 07383 | H349003522 | Shim, Timer | |
| 07383 | H349003523 | Shim, Timer | |
| 07383 | H349003524 | Shim, Timer | |
| 07383C | H349003525 | Shim, Timer | |
| 07383C | H349003526 | Shim, Timer | |
| 07383C | H349003527 | Shim, Timer | |
| 07383C | H349003528 | Shim, Timer | |
| 07383C | H349003529 | Shim, Timer | |
| 07383C | H349003530 | Shim, Timer | |
| 07383C | H349003531 | Shim, Timer | |
| 07383C | H349003532 | Shim, Timer | |
| 07383C | H349003533 | Shim, Timer | |
| 07383C | H349003534 | Shim, Timer | |
| 07384 | H349003535 | Snap Ring, Timer | |
| 07384B | H349003536 | Snap Ring, Timer | |
| 07385 | H349003537 | Spring, Timer | |
| 07387 | H349003538 | Washer, Timer | |
| 07387 | H349003539 | Washer, Timer |
