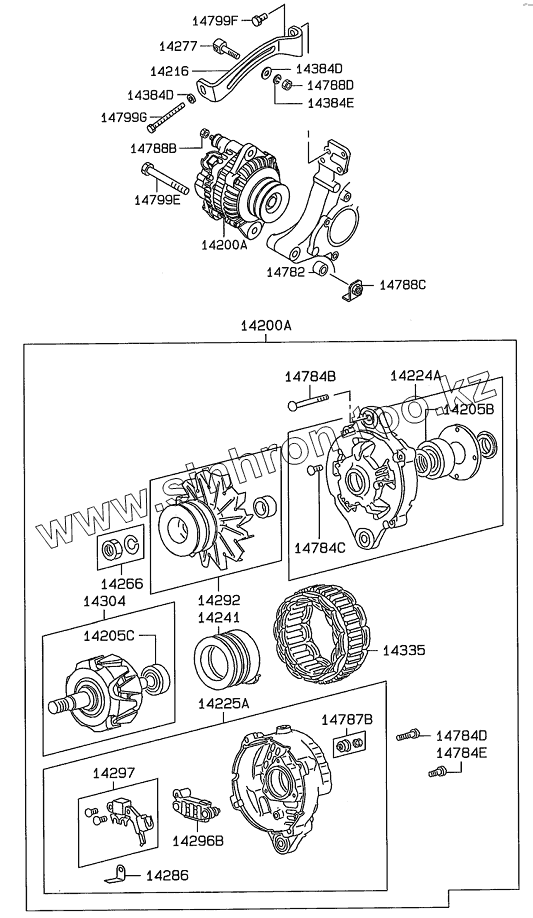

Каталог запасных частей к технике: Hidromek HMK 220LC-2. ALTERNATOR AND REGULATOR
14200A
14200A
14205B
14205C
14216
14224A
14225A
14241
14266
14277
14286
14292
14296B
14297
14304
14335
14384D
14384D
14384E
14782
14784B
14784C
14784D
14784E
14787B
14788B
14788C
14788D
14799E
14799F
14799G
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 14200A | H349003704 | Alternator Ass'y | |
| 14205B | H349003705 | Being, Alt. Rotor | |
| 14205C | H349003706 | Being, Alt. Rotor | |
| 14216 | H349003707 | Brace, Alternator | |
| 14224A | H349003708 | Bracket Ass'y, FR | |
| 14225A | H349003709 | Bracket Ass'y, RR | |
| 14241 | H349003710 | Coil, Alternator Rotor | |
| 14266 | H349003711 | Nut KIT, Alt. Pulley | |
| 14277 | H349003712 | Shaft, Alternator | |
| 14286 | H349003713 | Plate, Alt. RR Bracket | |
| 14292 | H349003714 | Pulley & Fan KIT, Alt. | |
| 14296B | H349003715 | Rectifier, Alternator | |
| 14297 | H349003716 | Regulator | |
| 14304 | H349003717 | Rotor KIT, Alternator | |
| 14335 | H349003718 | Stator, Alternator | |
| 14384D | H349003719 | Washer, Alternator | |
| 14384E | H349003720 | Washer, Alternator | |
| 14782 | H349003721 | Spacer, Alternator | |
| 14784B | H349003722 | Screw, Alternator, INR | |
| 14784C | H349003723 | Screw, Alternator, INR | |
| 14784D | H349003724 | Screw, Alternator, INR | |
| 14784E | H349003725 | Screw, Alternator, INR | |
| 14787B | H349003726 | Nut, Alternator, INR | |
| 14788B | H349003727 | Nut, Alternator | |
| 14788C | H349003728 | Nut, Alternator | |
| 14788D | H349003729 | Nut, Alternator | |
| 14799E | H349003730 | Bolt, Alternator | |
| 14799F | H349003171 | Bolt | |
| 14799G | H349003732 | Bolt, Alternator |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
