  5. ACCUMULATOR BOX MOUNTING

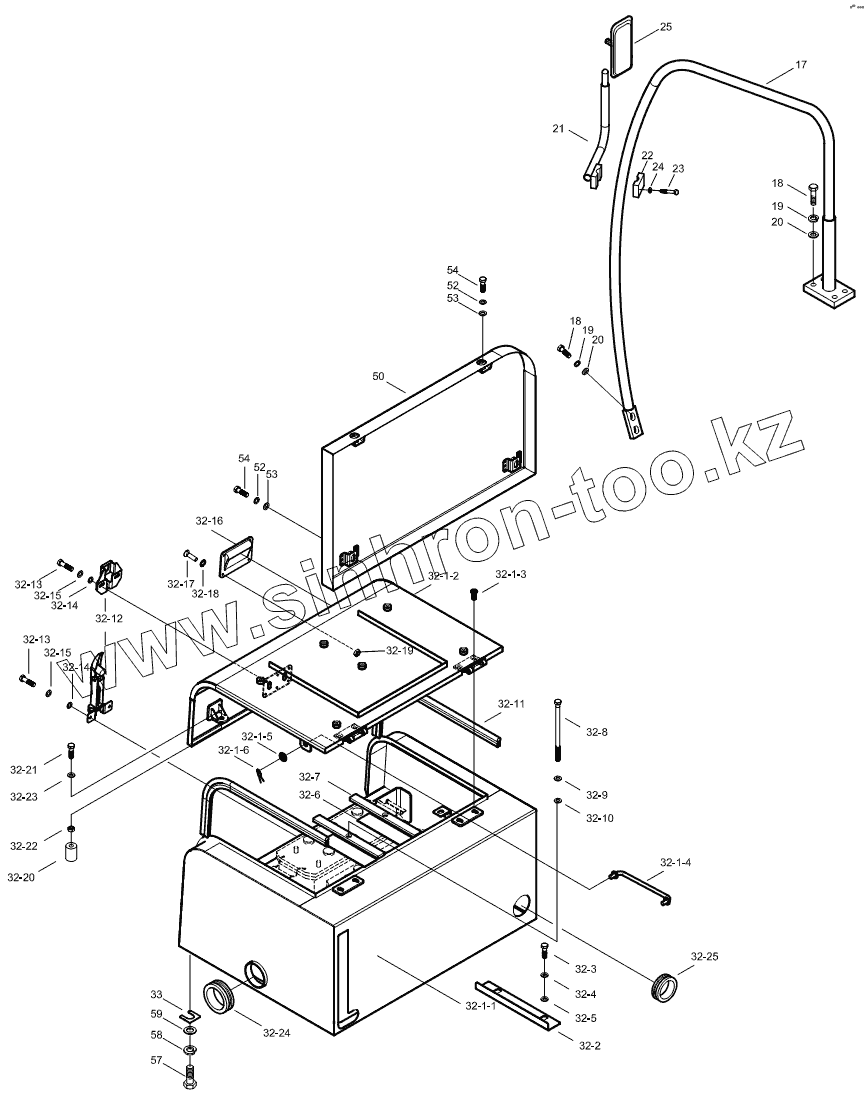

Каталог запасных частей к технике: Hidromek HMK 220LC-2. ACCUMULATOR BOX MOUNTING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
17
18
18
19
19
20
20
21
21
21
22
23
24
25
32
32.1
32.1
32.1.1
32.1.1
32.1.2
32.1.3
32.1.4
32.1.5
32.1.6
32.2
32.3
32.4
32.5
32.6
32.7
32.8
32.9
32.10
32.11
32.12
32.13
32.13
32.14
32.14
32.15
32.15
32.16
32.17
32.18
32.19
32.20
32.21
32.22
32.23
32.24
32.25
33
50
52
52
53
53
54
54
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
17 H341221000 Stay, W.A.
18 N01/0380842 Bolt, Hex.
19 N03/1310012 Washer, Spr.
20 N03/0100023 Washer, Pln.
21 H341207102 Stay, Mirror
21 H341217900 Stay, Mirror
21 H341217901 Stay, Mirror
22 H341207400 Clamp
23 N01/0380410 Bolt, Hex.
24 N03/1310010 Washer, Spr.
25 S91/00960 Mirror
32 H341220600 Accum. Box Ass'y
32.1 H341220400 Accum. Box Low. A.
32.1 H341220401 Accum. Box Low. A.
32.1.1 H341220700 Accum. Box W.A.
32.1.1 H341220701 Accum. Box W.A.
32.1.2 H341220800 Cover
32.1.3 N01/1560014 Bolt
32.1.4 H341205800 Rod W.A.
32.1.5 H341116200 Support
32.1.6 N06/1002015 Pin, Split
32.2 H341205900 Support
32.3 N01/0223566 Bolt, Hex.
32.4 N03/0100027 Washer, Pln.
32.5 N03/1310014 Washer, Spr.
32.6 020/40190 Rubber
32.7 H341206000 Plate, Accum.
32.8 N01/0381467 Bolt, Hex.
32.9 N03/0100027 Washer, Pln.
32.10 N03/1310014 Washer, Spr.
32.11 98Z020010 Wheather Strip
32.12 H341113900 Catch
32.13 N01/0232138 Bolt, Hex.
32.14 N03/0100017 Washer, Pln.
32.15 N03/1310010 Washer, Spr.
32.16 F99/50000 Handle
32.17 N04/1520758 Bolt
32.18 N03/2500003 Washer, Pln.
32.19 N02/5900014 Nut
32.20 H341217301 Stoper
32.21 N01/0232510 Bolt, Hex.
32.22 N02/3570206 Nut, Hex.
32.23 N03/0100021 Washer, Pln.
32.24 98Y040140 Gromet
32.25 H13/0135102 Wheather Strip
33 H341206300 Shim
50 H341220200 Cover, Upper
52 N03/1310011 Washer, Spr.
53 N03/0100020 Washer, Pln.
54 N01/5890818 Bolt, Cyl. Hd.
57 N01/0232858 Bolt, Hex.
58 N03/1310012 Washer, Spr.
59 N03/0100023 Washer, Pln.
