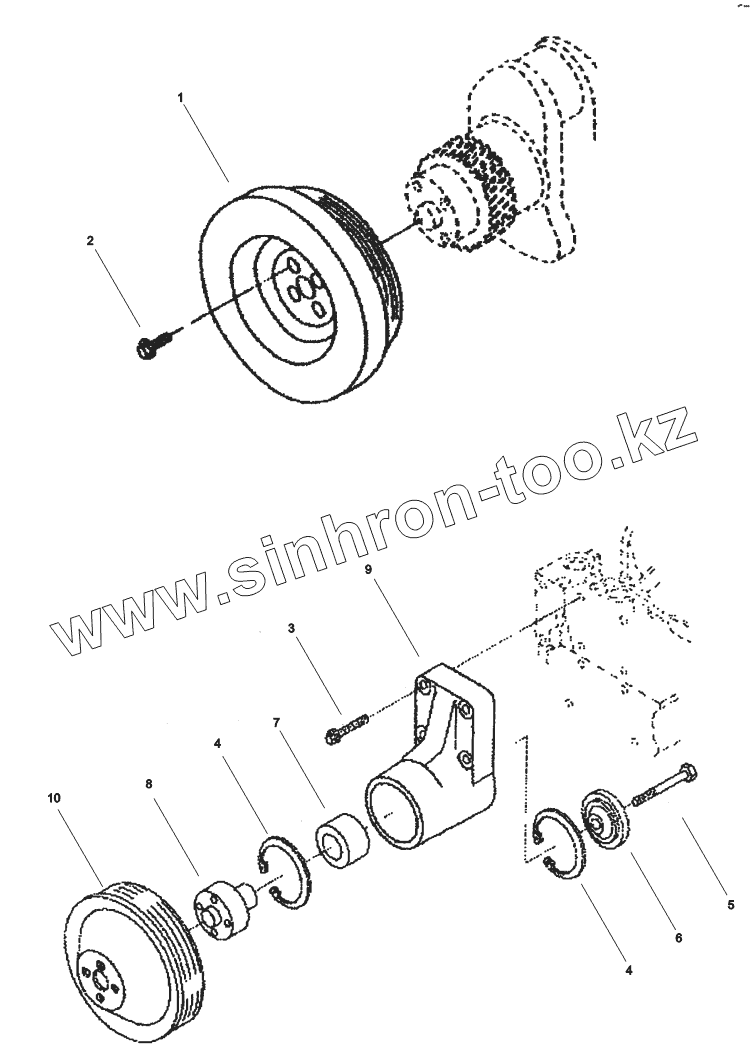

5. VIBRATION DAMPER AND FAN DRIVE MOUNTING

Каталог запасных частей к технике: Hidromek HMK 200W. VIBRATION DAMPER AND FAN DRIVE MOUNTING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 102B Maestro-ZF (2012) 102S MAESTRO (2012) HMK 102B (2005) HMK 102B ALPHA (2017) HMK 102S (2005) HMK 102S ALPHA (2017) HMK 200W (2005) HMK 220LC-2 (2006) HMK 230LC3 (2019) HMK 300LC (2019) HMK 62SS

Схема > Не выбрано BREAKER PIPING MOUNTING BREAKER PIPING MOUNTING QUICK COUPLING ASSEMBLY QUICK COUPLING MOUNTING QUICK COUPLING CYLINDER BREAKER MOUNTING DITCH CLEANING BUCKET MOUNTING TRAPEZOIDAL BUCKET MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING COWLING MOUNTING UPPER FRAME MOUNTING ACCUMULATOR BOX MOUNTING ANTI-SLIP WALKWAY ENGINE MOUNTING DATA PLATE CYLINDER BLOCK CYLINDER HEAD CYLINDER BLOCK COVER ROCKER LEVERS CRANKSHAFT AND MAIN BEARING CAMSHAFT FRONT GEAR COVER AND VALVE TAPPET FRONT GEAR TRAIN ACCESSORY CAM FOLLOWER COVER CONNECTING ROD AND PISTON VIBRATION DAMPER AND FAN DRIVE MOUNTING ACCESSORY AND FAN DRIVE PULLEYS FAN PILOT SPACER ALTERNATOR BOSCH INJECTION PUMP INJECTOR FUEL PLUMBING FUEL SYSTEM ACCESSORIES FUEL FILTER AND PLUMBING FUEL SHUTOFF VALVE FUEL PUMP COUPLING THERMOSTAT-OIL PRESSURE SWITCH - SPEED SENSOR THERMOSTAT HOUSING TURBOCHARGER TURBOCHARGER MOUNTING AND PLUMBING TURBOCHARGER LOCATION EXHAUST CONNECTION EXHAUST MANIFOLD ENGINE VENT PLUMBING STARTING MOTOR MOUNTING LUBE OIL PUMP OIL PAN OIL LEVEL GAUGE LUBE OIL COOLER LIFTING BRACKET AIR FUEL CONTROL PLUMBING AIR HEATER AND FUEL DRAIN LOCATION AFTERCOOLER PLUMBING MECHANICAL TACHOMETER DRIVE FLYWHEEL FLYWHEEL HOUSING VALVE COVER WATER PUMP WATER INLET CONNECTION COUPLING ASSEMBLY AIR INTAKE MOUNTING EXHAUST MOUNTING COOLING SYSTEM FUEL TANK MOUNTING AND FUEL LINE ENGINE CONTROL MOUNTING AIRCONDITION MOUNTING AIRCONDITION MOUNTING HEATER MOUNTING HEATER MOUNTING MAIN PIPING MOUNTING L/H MAIN PIPING MOUNTING R/H HYDRAULIC PUMP GEAR PUMP PROPORTIONAL REDUCING VALVE PUMP-REGULATOR MCV MCV MCV MCV HYDRAULIC OIL MOTOR-SWING UNIT REDUCTION GEAR-SWING UNIT LOWER FRAME HYDRAULIC MOUNTING LOWER FRAME HYDRAULIC MOUNTING LOWER FRAME HYDRAULIC MOUNTING LOWER FRAME HYDRAULIC MOUNTING LOWER FRAME HYDRAULIC MOUNTING TURNING JOINT INPUT HOUSING -TRANSMISSION INPUT -TRANSMISSION HOUSING -TRANSMISSION OIL PIPE -TRANSMISSION COUPLING -TRANSMISSION M-DISC BRAKE -TRANSMISSION PLANETARY DRIVE -TRANSMISSION DISCONNECTION -TRANSMISSION SPUR GEAR DRIVE -TRANSMISSION GEAR SHIFT SENSOR -TRANSMISSION OUTPUT -TRANSMISSION REGULATING MOTOR REGULATING MOTOR REGULATING MOTOR OUTRIGGER CYLINDER OUTRIGGER CYLINDER DOZER BLADE CYLINDER DOZER BLADE CYLINDER PILOT PIPING MOUNTING PILOT PIPING MOUNTING REMOTE CONTROL VALVE (RH/LH) DOZER-OUTRIGGER JOISTIC ATTACHMENT PIPING BOOM CYLINDER (R/L) BUCKET CYLINDER ARM CYLINDER HYDRAULIC TANK MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING POWER TRAIN HYDRAULIC MOUNTING FOOT BRAKE VALVE PILOT VALVE ASSEMBLY UPPER DRAIN PIPING MOUNTING LOWER FRAME MOUNTING DOZER BLADE MOUNTING DOZER BLADE MOUNTING OUTRIGGER MOUNTING POWER TRAINING MOUNTING DIFFERENTIAL-FRONT AXLE AXLE CASING-FRONT AXLE KNUCKLE - FRONT AXLE KNUCKLE - FRONT AXLE DRIVE ASSEMBLY - FRONT AXLE BRAKE PISTON - FRONT AXLE DIFFERENTIAL - REAR AXLE AXLE CASING - REAR AXLE DRIVE ASSEMBLY - REAR AXLE BRAKE PISTON - REAR AXLE BOOM MOUNTING ARM MOUNTING WORKING ATTACHMENT CONTROL GENERAL PURPOSE BUCKET HEAVY DUTY BUCKET LUBRICATION PIPING MOUNTING CAB MOUNTING CAB CAB CAB CAB CONSOLE BOX (R/H) CONSOLE BOX (L/H) CAB INTERIOR MOUNTING CAB INTERIOR MOUNTING CAB INTERIOR MOUNTING DECAL MOUNTING (ENGLISH) ELECTRIC ELECTRIC ELECTRIC MAIN HARNESS ENGINE HARNESS CAB HARNESS

1

2

2

3

4

4

5

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Damper		Damper, Vibration
2	Screw		Screw
2	Screw		Screw
3	Support		Support
4	Ring		Ring
5	Screw		Screw
6	Retainer		Retainer
7	Ball		Ball
8	Hub		Hub
9	Hub		Hub
10	Pulley		Pulley
