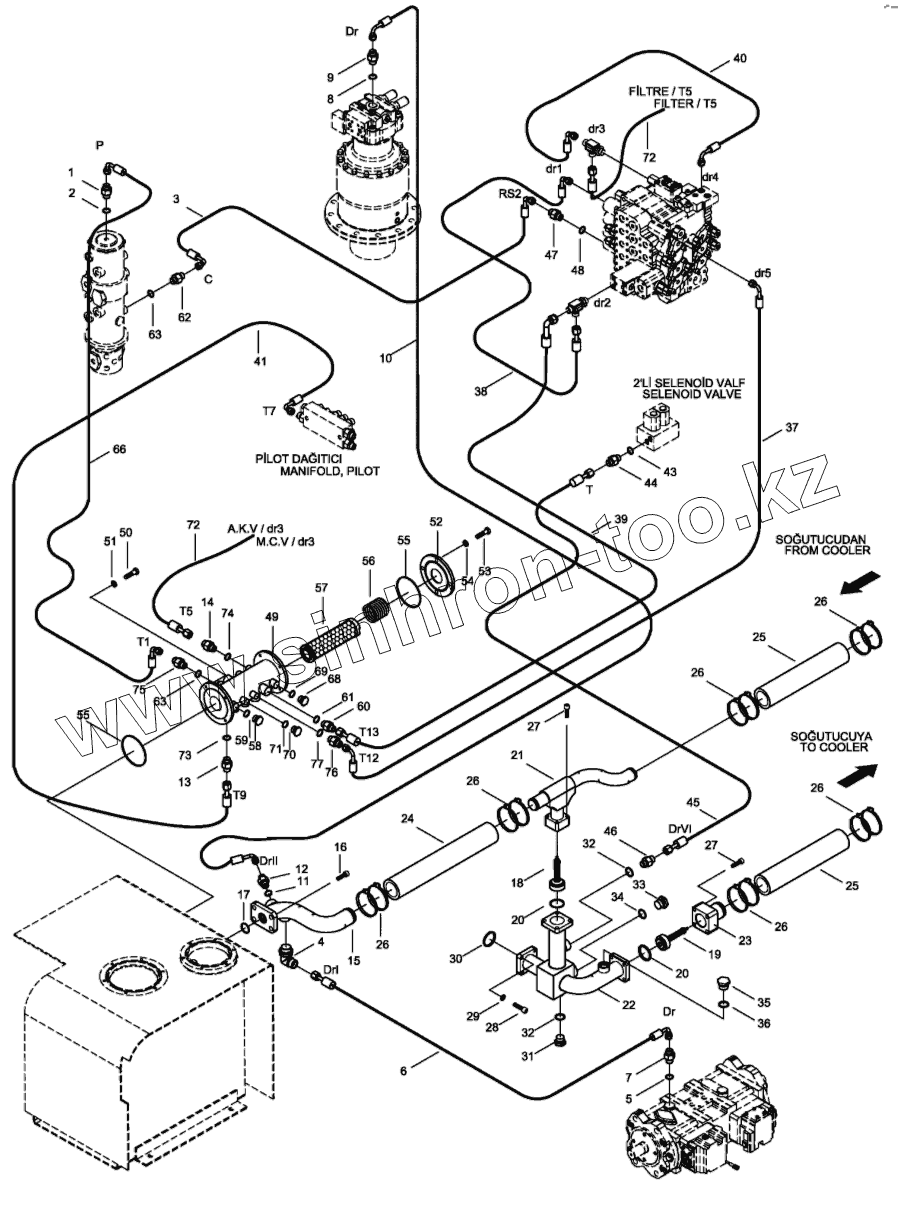

Каталог запасных частей к технике: Hidromek HMK 200W. UPPER DRAIN PIPING MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
25
26
26
26
26
26
26
27
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
48
49
50
51
52
53
54
55
55
56
57
58
59
60
61
62
63
63
66
68
69
70
71
72
72
73
74
75
76
77
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | N16/K114343 | Connector | |
| 2 | N10/2001724 | O-Ring | |
| 3 | 99S093230 | Hose | |
| 4 | N16/N210058 | Elbow | |
| 5 | N10/2002436 | O-Ring | |
| 6 | 99Q094317 | Hose | |
| 7 | N16/K114344 | Connector | |
| 8 | N10/2001323 | O-Ring | |
| 9 | N16/K114357 | Connector | |
| 10 | 99S093239 | Hose | |
| 11 | N10/2001921 | O-Ring | |
| 12 | N16/K214462 | Connector | |
| 13 | N16/K114343 | Connector | |
| 14 | N16/K214455 | Rekor | |
| 15 | H343600200 | Pipe W.A. | |
| 16 | N01/5891166 | Bolt, Cyl. Hd. | |
| 17 | N10/2005636 | O-Ring | |
| 18 | H233601300 | Check V/V, Bypass | |
| 19 | H233601200 | Check Valve, Return | |
| 20 | N10/2005636 | O-Ring | |
| 21 | H343601200 | Pipe W.A. | |
| 22 | H343601800 | Pipe W.A. | |
| 23 | H343602500 | Pipe W.A. | |
| 24 | H343602600 | Hose | |
| 25 | H343602700 | Hose | |
| 26 | N07/4050070 | Clamp | |
| 27 | N01/5890878 | Bolt, Cyl. Head | |
| 28 | N01/5891178 | Bolt, Cylinder Head | |
| 29 | N03/1310012 | Washer, Spr. | |
| 30 | N10/2004735 | O-Ring | |
| 31 | N16/X162003 | Plug | |
| 32 | N10/2002331 | O-Ring | |
| 33 | N16/X162005 | Plug | |
| 34 | N10/2002931 | O-Ring | |
| 35 | N16/X162002 | Plug | |
| 36 | N10/2001921 | O-Ring | |
| 37 | 97U091230 | Hose | |
| 38 | 99Q092211 | Hose Ass'y | |
| 39 | 99V092207 | Hose | |
| 40 | 97T091207 | Hose Ass'y | |
| 41 | 99Q093247 | Hose | |
| 43 | N10/2001024 | O-Ring | |
| 44 | N16/K114341 | Connector | |
| 45 | 97N091212 | Hose | |
| 46 | N16/K214466 | Connector | |
| 47 | N16/K114359 | Connector | |
| 48 | N10/2002835 | O-Ring | |
| 49 | H233600100 | Case, Drain Filter | |
| 50 | N01/0232438 | Bolt, Hex. | |
| 51 | N03/1310011 | Washer, Spr. | |
| 52 | H233600900 | Cover | |
| 53 | N01/0232462 | Bolt, Hex. | |
| 54 | N03/1310011 | Washer, Spr. | |
| 55 | N10/2010126 | O-Ring | |
| 56 | H233601000 | Spring | |
| 57 | H233601100 | Drain Filter | |
| 58 | N16/X120001 | Plug | |
| 59 | N10/2001323 | O-Ring | |
| 60 | N16/K114342 | Connector | |
| 61 | N10/2001323 | O-Ring | |
| 62 | N16/K114357 | Connector | |
| 63 | N10/2001323 | O-Ring | |
| 66 | 99V093240 | Hose | |
| 68 | N16/X120004 | Plug | |
| 69 | N10/2001024 | O-Ring | |
| 70 | N16/X120003 | Plug | |
| 71 | N10/2001024 | O-Ring | |
| 72 | 97Q091232 | Hose | |
| 73 | N10/2001724 | O-Ring | |
| 74 | N10/2001122 | O-Ring | |
| 75 | N16/K114357 | Connector | |
| 76 | N16/K114341 | Connector | |
| 77 | N10/2001024 | O-Ring |
