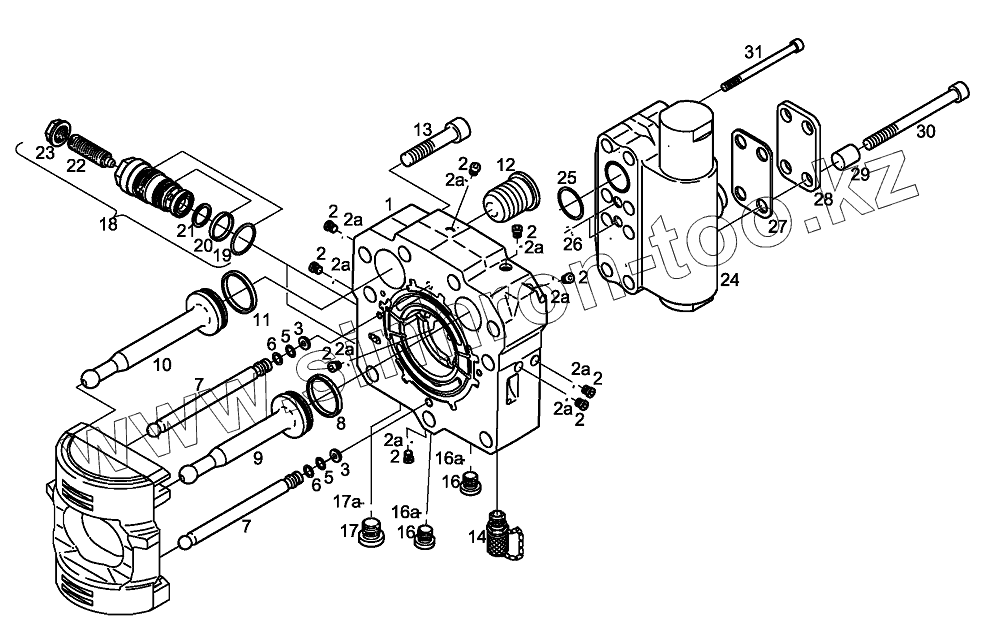

Каталог запасных частей к технике: Hidromek HMK 200W. REGULATING MOTOR
1
2
2
2
2
2
2
2
2
2
2a
2a
2a
2a
2a
2a
2a
2a
2a
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
5
5
6
6
7
7
8
9
10
11
11
12
13
14
16
16
16a
16a
17
17a
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H239028544 | Port Plt. Housing As. | |
| 2 | H239028545 | Plug Screw | |
| 2a | H239028546 | O-Ring | |
| 3 | H239028547 | Washer | |
| 3 | H239028548 | Washer | |
| 3 | H239028549 | Washer | |
| 3 | H239028550 | Washer | |
| 3 | H239028551 | Washer | |
| 3 | H239028552 | Washer | |
| 3 | H239028553 | Washer | |
| 3 | H239028554 | Washer | |
| 3 | H239028555 | Washer | |
| 3 | H239028556 | Washer | |
| 3 | H239028557 | Washer | |
| 3 | H239028558 | Washer | |
| 3 | H239028559 | Washer | |
| 3 | H239028560 | Washer | |
| 3 | H239028561 | Washer | |
| 3 | H239028562 | Washer | |
| 3 | H239028563 | Washer | |
| 3 | H239028564 | Washer | |
| 3 | H239028565 | Washer | |
| 3 | H239028566 | Washer | |
| 3 | H239028567 | Washer | |
| 5 | H239028568 | O-Ring | |
| 6 | H239028569 | Support Ring | |
| 7 | H239028570 | Pipe | |
| 8 | H239028571 | Piston Ring | |
| 9 | H239028572 | Servo Piston | |
| 10 | H239028573 | Servo Piston | |
| 11 | H239028574 | Piston Ring | |
| 11 | H239028575 | Seal Ring | |
| 12 | H239028576 | Bolt | |
| 13 | H239028577 | Socket Hd. Screw | |
| 14 | H239028578 | App. Outlet Meas. | |
| 16 | H239028579 | Plug Screw | |
| 16a | H239028580 | O-Ring | |
| 17 | H239028581 | Plug Screw | |
| 17a | H239028582 | O-Ring | |
| 18 | H239028583 | Pressure Relief V/V | |
| 19 | H239028584 | O-Ring | |
| 20 | H239028585 | Seal Ring | |
| 21 | H239028586 | O-Ring | |
| 22 | H239028587 | Threaded Pin | |
| 23 | H239028588 | Seal Collar Nut | |
| 24 | H239028589 | Brake Valve | |
| 25 | H239028590 | O-Ring | |
| 26 | H239028591 | O-Ring | |
| 27 | H239028592 | Seal | |
| 28 | H239028593 | Cover | |
| 29 | H239028594 | Bush | |
| 30 | H239028595 | Socket Hd. Screw | |
| 31 | H239028596 | Socket Hd. Screw |
