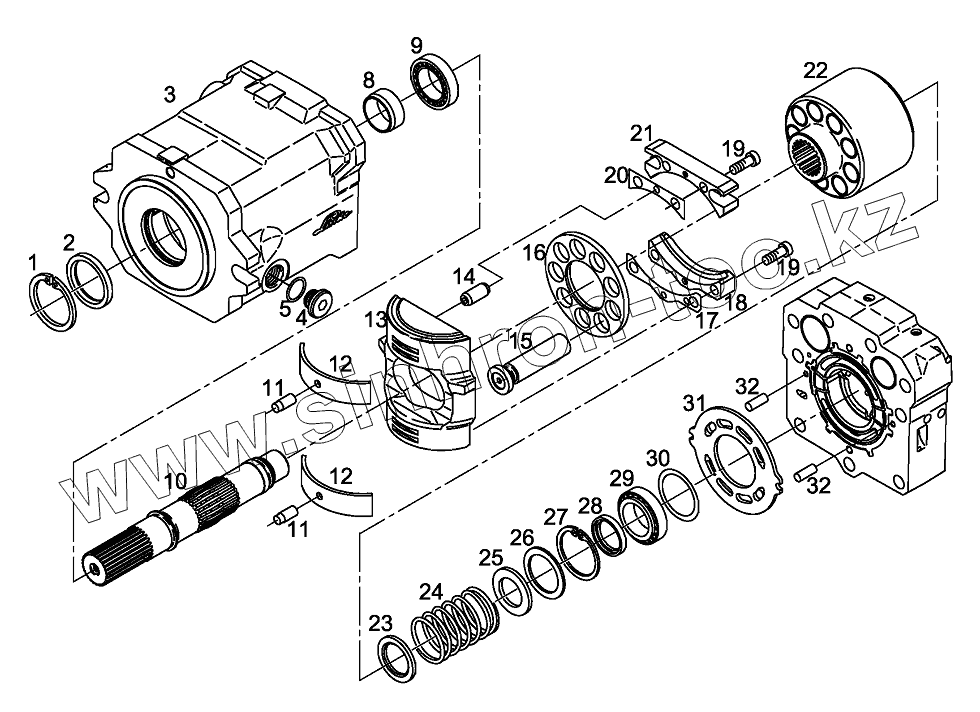

Каталог запасных частей к технике: Hidromek HMK 200W. REGULATING MOTOR
1
2
3
4
5
8
9
10
11
11
12
12
13
14
15
16
17
17
17
18
19
19
20
20
20
21
22
23
24
25
26
26
26
27
28
29
30
30
30
30
30
30
30
30
31
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H239028501 | Retaining Ring | |
| 2 | H239028502 | Shaft Sealing Ring | |
| 3 | H239028503 | Housing | |
| 4 | H239028504 | Plug Screw | |
| 5 | H239028505 | O-Ring | |
| 8 | H239028506 | Race | |
| 9 | H239028507 | Tappered Roller Bear. | |
| 10 | H239028508 | Drive Shaft | |
| 11 | H239028509 | Cylindirical Pin | |
| 12 | H239028510 | Bearing Sliding | |
| 13 | H239028511 | Cradle | |
| 14 | H239028512 | Bush | |
| 15 | H239028513 | Piston Assy | |
| 16 | H239028514 | Pull-Back Plate | |
| 17 | H239028515 | Spacer Plate | |
| 17 | H239028640 | Spacer Plate | |
| 17 | H239028641 | Spacer Plate | |
| 18 | H239028518 | Holding Plate | |
| 19 | H239028519 | Socket Hd. Screw | |
| 20 | H239028643 | Spacer Plate | |
| 20 | H239028520 | Spacer Plate | |
| 20 | H239028642 | Spacer Plate | |
| 21 | H239028523 | Holding Plate | |
| 22 | H239028524 | Cylinder Block Assy | |
| 23 | H239028525 | Washer | |
| 24 | H239028526 | Compr. Spring | |
| 25 | H239028527 | Washer | |
| 26 | H239028528 | Shim | |
| 26 | H239028529 | Shim | |
| 26 | H239028530 | Shim | |
| 27 | H239028531 | Retaining Ring | |
| 28 | H239028532 | Washer | |
| 29 | H239028533 | Tappered Roller Bear. | |
| 30 | H239028534 | Shim | |
| 30 | H239028535 | Shim | |
| 30 | H239028536 | Shim | |
| 30 | H239028537 | Shim | |
| 30 | H239028538 | Shim | |
| 30 | H239028539 | Shim | |
| 30 | H239028540 | Shim | |
| 30 | H239028541 | Shim | |
| 31 | H239028542 | Port Plate | |
| 32 | H239028543 | Cylindirical Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
